Toyota 781290 — HORN

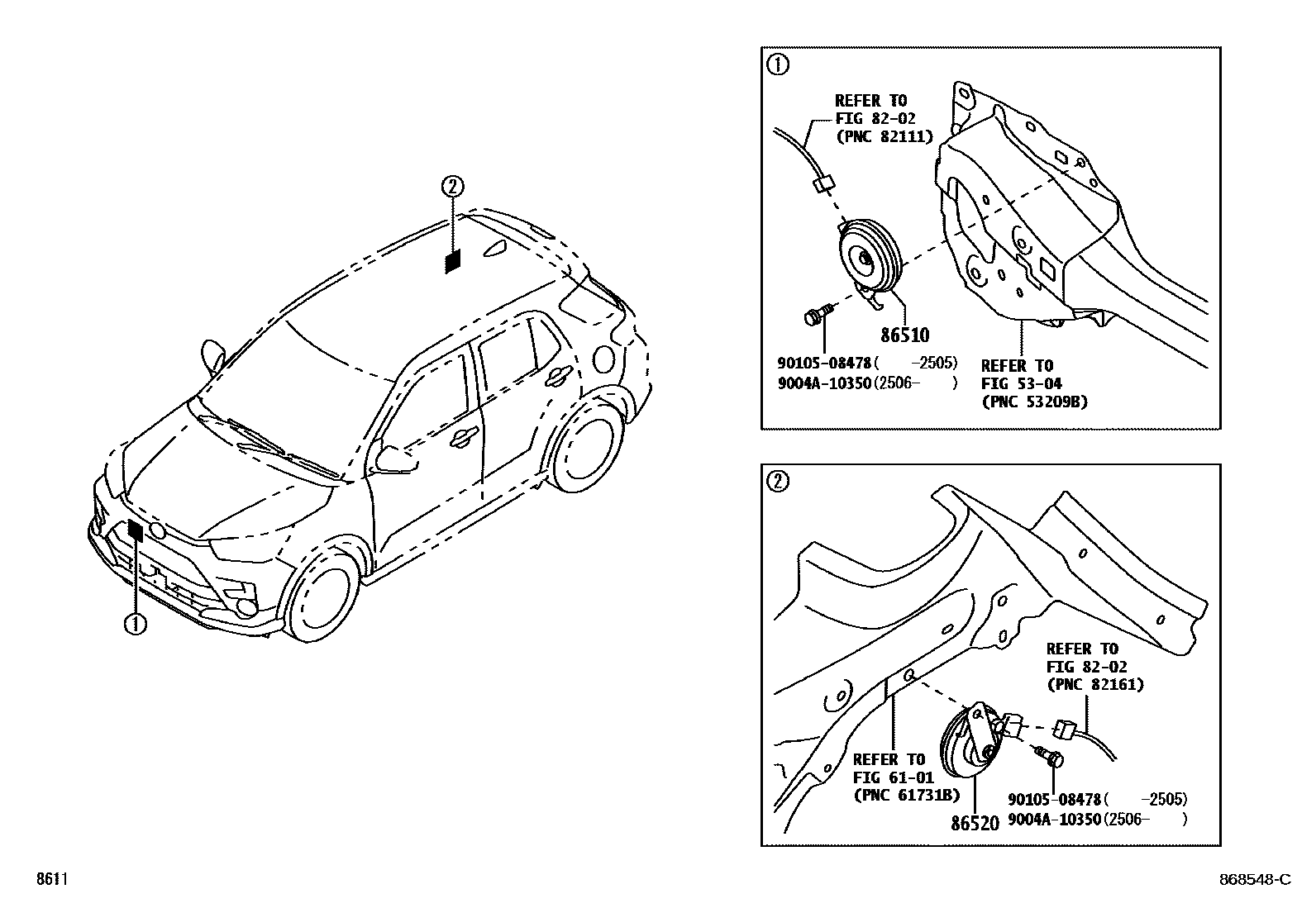

Parts diagram

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

6101SIDE MEMBER

→ Go to FIG 61-01

8202WIRING & CLAMP

→ Go to FIG 82-02

86510HORN ASSY, HIGH PITCHED

86520HORN ASSY, LOW PITCHED

9004A10350

9010508478

7 parts on this diagram · 1 diagram in section

HORN for Toyota 781290

This section contains 7 genuine Toyota parts for the HORN system of the Toyota 781290. Key components include: FRONT FENDER APRON & DASH PANEL, SIDE MEMBER, WIRING & CLAMP, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
