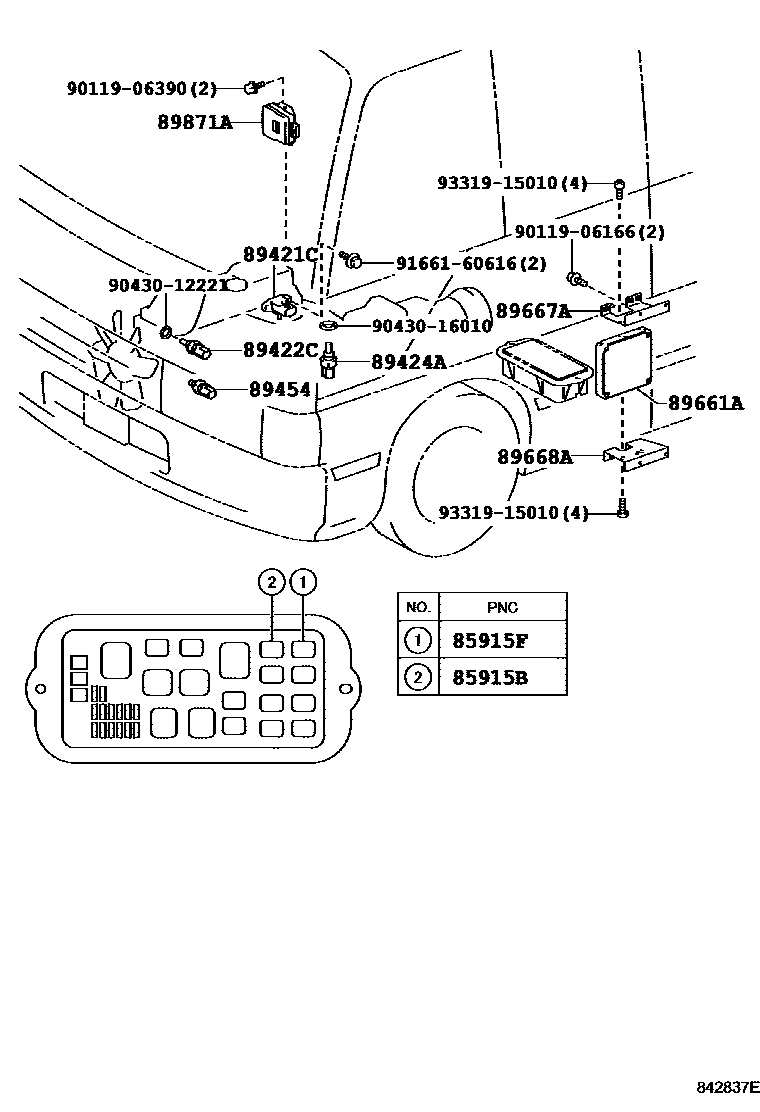

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0004 1

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02017iBB5#..TDEFI199907-200408

main90987-02027iXZB40,5#200908-201501

85915FRELAY, SPILL VALVE

main85900-37120iXZB50..IV200908-201311

main90987-02017iBB5#..TDEFI199907-200408

main90987-02027iXZB40,5#..ARL,GEN,TAIW200908-201501

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-21010iBB5#..TDEFI200408-200608

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iBB5#..TDEFI199907-200408

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-28020iBB5#..TDEFI199907-200408

main89424-60010iXZB40,5#200608-200908

89454SENSOR, FUEL TEMPERATURE

main89454-60010iBB5#..TDEFI199907-200408

89661ACOMPUTER, ENGINE CONTROL

main89661-36020iBB58200408-200608

main89661-36070iBB50,59..(EUR,GEN)..TDEFI200105-200408

main89661-36100iBB50..ARL200301-200408

main89661-36160iBB50..IV200408-200608

main89661-36200iXZB5#..ARL,GEN,TAIW200608-200704

main89661-36201iXZB5#..ARL,GEN,TAIW200705-200706

main89661-36202iXZB50..STD..GEN200706-200803

main89661-36203iXZB40,5#..(ARL,GEN,TAIW)..5F200808-200908

main89661-36210iXZB50..IV200608-200704

main89661-36211iXZB50..IV200705-200706

main89661-36212iXZB50..IV200706-200908

main89661-36220iXZB50..4FC200708-200807

main89661-36221iXZB50..4FC200808-200908

main89661-36290iXZB40,5#..(GEN,TAIW)..5F200908-201209

main89661-36291iXZB40,59..HRF;XZB50..(20S,21S)..(GEN,TAIW)..5F201501-201612

main89661-36300iXZB50..GEN..4FC200908-201209

main89661-36301iXZB50..GEN..4FC201501-201612

main89661-36310iXZB50..IV200908-201209

main89661-36311iXZB50..IV201209-201311

main89661-36360iXZB50..ARL..5F200908-201209

main89661-36361iXZB50..ARL..5F201209-201501

main89661-36370iXZB50..ARL..4FC200908-201209

main89661-36371iXZB50..ARL..4FC201209-201501

main89661-36530iXZB40,50..LHD..GEN201501-201612

main89661-36540iXZB50..ARL..5F201501-201612

main89661-36550iXZB50..ARL..4FC201501-201612

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-36020iBB5#..TDEFI199907-200408

main89667-36050iXZB50..RHD..IV200608-201311

main89667-36100iXZB50..TAIW200608-201501

main89667-36140iXZB40,50..LHD..GEN201501

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-36010iBB5#..TDEFI200408-200608

main89668-36050iXZB40,59;XZB50..RHD..(20S,21S)..WC200608-201501

main89668-36080iXZB40,50..LHD..GEN201501

main89668-36090iXZB50..TAIW200608-201501

89871ADRIVER, INJECTOR

main89871-36010iBB5#..TDEFI199907-200408

main89871-37010iXZB50..IV200608-201311

main89871-71020iXZB40,5#..ARL,GEN,TAIW200908-201501

9011906166

main90119-06166

9011906390

main90119-06390

9043012221

main90430-12221

9043016010

main90430-16010

9166160616

main91661-60616

9331915010

main93319-15010

16 parts on this diagram · 3 diagrams in section
