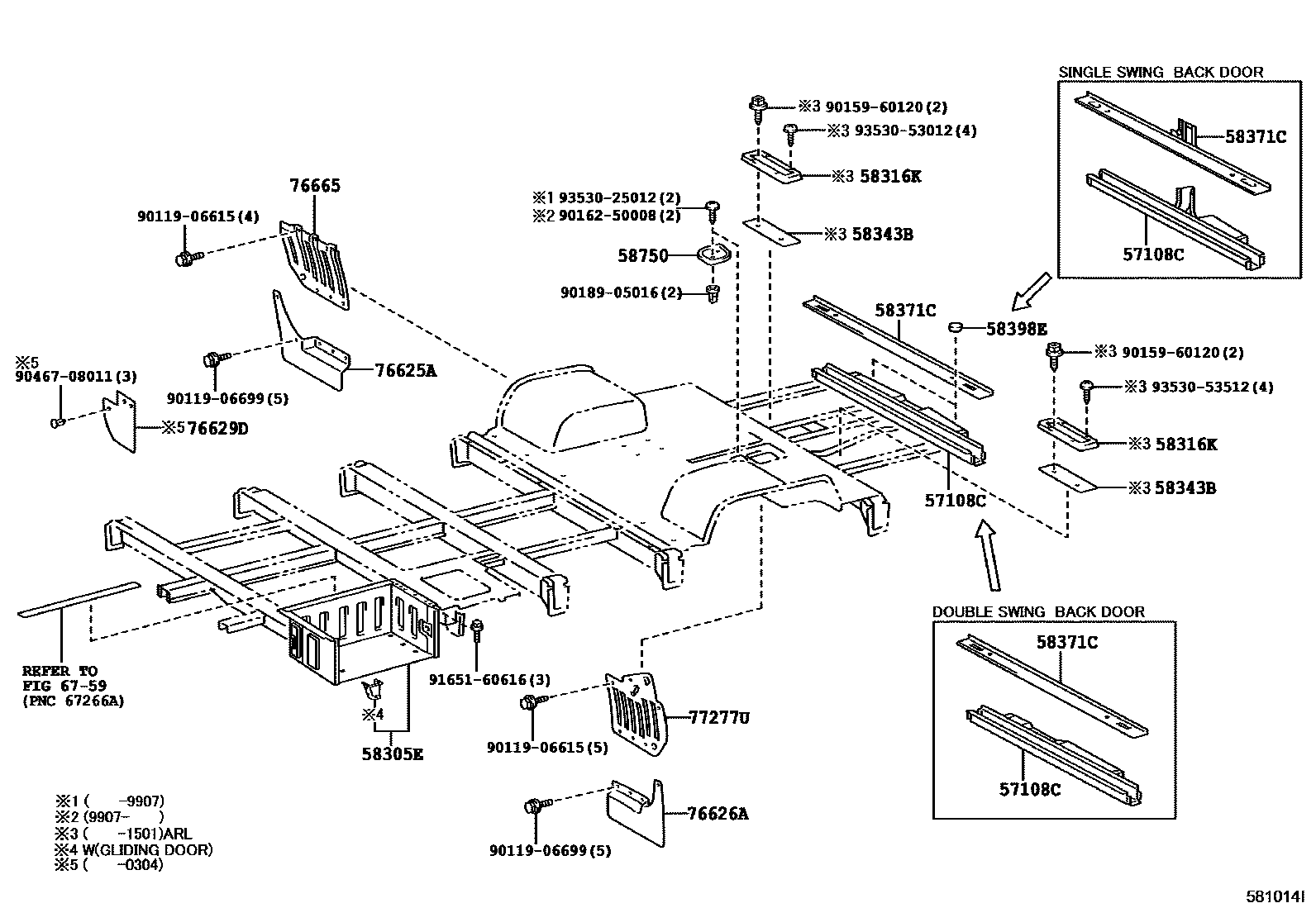

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1FOOT REST 0004 1FOOT REST 0005 1 0006 1 0007 1HOLE PLUG 0008 1HOLE PLUG

57108CCROSSMEMBER SUB-ASSY, FLOOR, NO.8

main57108-36030iBB50,RZB40,50..CHI199907-200211

main57108-36031iBB42,50,HZB50,TRB40,50201411-201501

main57108-36040iBB42..WOC..GCC;HZB50..RHD..SRF;BB4#,50..(17S,20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN; RZB40..WOC..GCC;BB50,RZB40..(19S,22S)..GEN199907-200108

W(*DSBD); W(*SOBD)

main57108-36041iHZB50,TRB50..26S;HZB50..LHD..HRF..30S..WC..GEN;BZB40,50,XZB50..STD..WC..(GEN,TAIW)201501

W(*DSBD)

main57108-36050iBB50..EX;HZB50..SCO;BB4#,HZB50..(17S,19S,22S,26S,30S)..(ARL,GEN,SCO)199301-199907

W(*SSBD)

main57108-36051iBB42..RHD..WOC;BB42,BZB40,50,HZB50,XZB40,5#..RHD..HRF201411-201501

W(*SSBD)

main57108-36090iBZB40,XZB40,50..RHD201501

58305EPANEL SUB-ASSY, CENTER DOOR STEP

main58305-36020iBB4#,HZB50..RHD..STD..CBU; BB50..EX;HZB50..SCO199301-199907

SINGAPORE SPEC

main58305-36021iBB42,BZB40,50,HZB50..RHD..STD;BB50,XZB50..RHD..(EX,STD)..CBU200408-200708

main58305-36022iBB42,BZB40,50,HZB50,XZB40,50..RHD..(EX,STD)..CBU200708-201501

main58305-36030iBB42,58,HZB50,RZB40,50..LHD..STD..CBU199301-199907

main58305-36031iBB42,50,58,HZB50,RZB40,50..LHD..(23S,26S,30S)200402-200408

main58305-36040iHZB50..DX199301-199309

main58305-36050iHZB50..DX199309-199907

main58305-36051iBB50..WC200708-201501

W(GLIDING AUTO DOOR, W(BUZZER))

main58305-36120iBB50..DX200211-200408

main58305-36121iXZB5#..DX,EX200708-201209

W(GLIDING AUTO DOOR, W(BUZZER))

main58305-36140iHZB50,RZB40..LHD..EX199907-200408

W(*GLD)

main58305-36170iBB50..GEN..6F200408-200608

main58305-36330iXZB5#..DX,EX;TRB50..HRF..GCC201209-201501

W(GLIDING AUTO DOOR, W(BUZZER))

main58305-36370iBB42,HZB50,TRB40,50,XZB40,50..LHD201501

main58305-36380iBB42,BZB40,50,HZB50,XZB40,50..RHD..(EX,STD)..5F201501

SINGAPORL SPEC

main58305-36470iXZB5#..DX,EX;TRB50..HRF..GCC201501

W(*GLD(AUTO)) & W(BUZZER)

58316KPLATE, FOOTREST, REAR

main58316-36010-B0×2iHZB50..ARL200108-200211

MD.CHARCOAL,TRIM1#

main58316-36010-E0×2iBB40,HZB50..(DX,STD)..ARL199301-199907

GREIGE,TRIM4#

58343BBRACKET, FUEL HOSE PROTECTOR, FRONT

main58343-36010-B0×2iHZB50..ARL200108-200211

MD.CHARCOAL,TRIM1#

main58343-36010-E0×2iBB40,HZB50..(DX,STD)..ARL199301-199907

GRAIGE,TRIM4#

58371CPANEL, BODY LOWER BACK, UPPER

main58307-36010iHZB50..4FC;HZB50..RHD..SRF;BB43,50..RHD..5F;BB42,HZB50..RHD..HRF..WOC..GEN199907-200108

W(*SSBD)

main58371-36010iBZB40; BZB50; HZB50,TRB50,XZB50..LHD..(21S,26S); HZB50,XZB50..LHD..HRF..30S..WC..GEN201501

W(*DSBD); W/O(REAR SEAT)

58398ECOVER, FLOOR UNDER, NO.1

main58398-36020×2iHZB50..RHD..SRF;BB42,RZB40..WOC..GCC;HZB50..RHD..(20S,22S)..GEN;BB42,HZB50..RHD..HRF..WOC..GEN;BB4#,50,RZB40..(17S,19S,20S,22S)..GEN199907-200108

58750COVER ASSY, FUEL TANK INSPECTION HOLE

main58750-36010-B1iHZB50..GCC,GEN;BB42,5#,BZB40,50,RZB40,50..ARL,GCC,GEN200108-200408

MD.CHARCOAL,TRIM1#

main58750-36010-E0iBB42..SCO199309-199505

GREIGE,TRIM4#

6759CENTER DOOR PANEL & GLASS

→ Go to FIG 67-59

76625AMUDGUARD, REAR BODY, RH

main76625-36010iBB42..WC..GCC;BB42..SRF..GEN;BB42..LHD..HRF..WOC;HZB50..HRF..30S..WC;HZB50..LHD..SRF..WC;HZB50,RZB40..LHD..WOC..GEN;BB50..(17S,21S,30S)..(ARL,GEN);BB58,59,BZB40,50,RZB50..GCC,GEN;BB42,50..HRF..(19S,20S,26S)..WC..(DSL,TDEFI);HZB50,RZB40..LHD..(17S,20S,26S)..WC..(GCC,GEN)199907-200408

main76625-36040iRZB40,50..GCC200602-200708

76626AMUDGUARD, REAR BODY, LH

main76626-36010iRZB50;RZB40..GEN;RZB40..SRF..GCC200408-200708

76629DMUDGUARD, FRONT SIDE MEMBER

main76629-36010iBB50..CBU..6F199907-200108

76665BRACE, REAR MUDGUARD

main76665-36010iBB4#,5#,HZB50,RZB40,50..CBU199711-199907

main76665-36030iBB42,HZB50,TRB40,50..GCC201501

77277UPROTECTOR, FUEL TANK FILLER PIPE

main77277-36010iBB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO199301-199711

9011906615

main90119-06615

9011906699

main90119-06699

9015960120

main90159-60120

9016250008

main90162-50008

9018905016

main90189-05016

9046708011

main90467-08011

9165160616

main91651-60616

9353025012

main93530-25012

9353053012

main93530-53012

9353053512

main93530-53512

23 parts on this diagram · 8 diagrams in section
