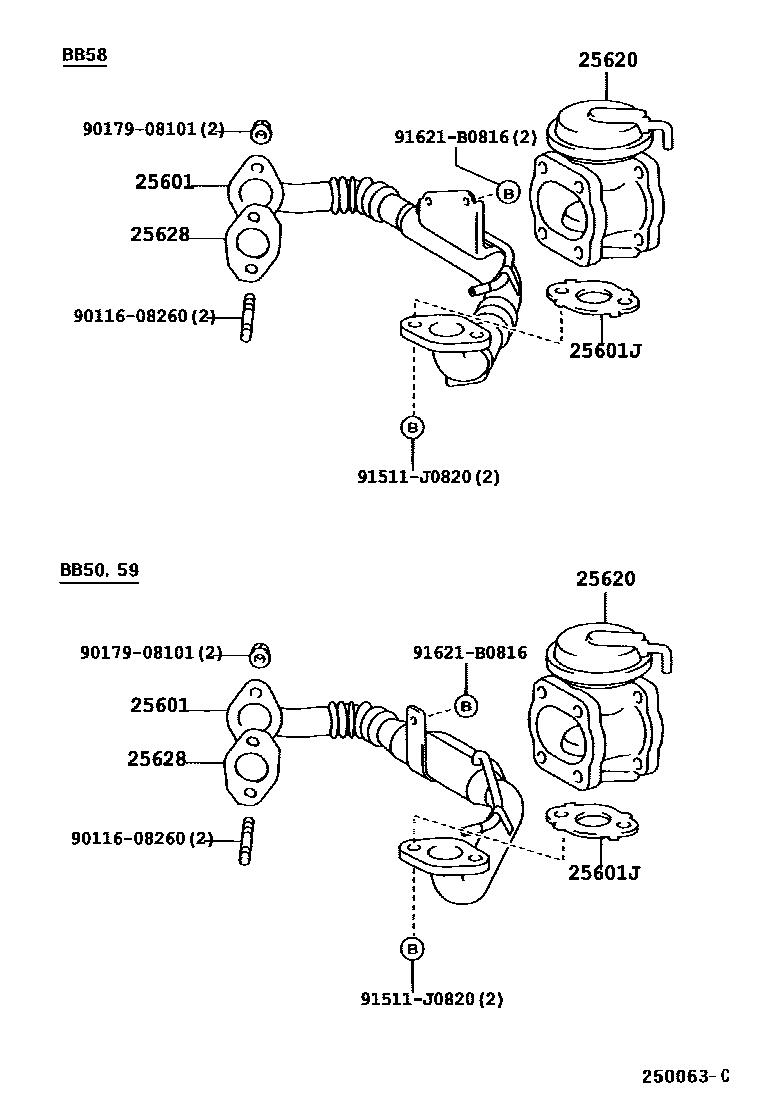

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

25601PIPE SUB-ASSY, EGR, NO.1

main25601-58030i15BFTE..BB58199907-200408

main25601-58060i15BFTE..BB50,59200105-200408

25601JGASKET(FOR EGR PIPE, NO.1)

main25634-58010i15BFTE..BB5#199907-200408

25620VALVE ASSY, EGR

main25620-58040i15BFTE..BB5#199907-200408

main25620-78022iN04C..XZB50..STD..GEN200608-200803

main25620-78060iN04C..XZB40,5#200908-200910

main25620-78061iN04C..XZB40,5#200910-201012

main25620-78062iN04C..XZB50..IV201012-201311

main25620-E0012iN04C..XZB40,59..HRF;N04C..XZB50..20S,21S201501

25628GASKET, EGR INLET

main25628-58010i15BFTE..BB5#199907-200408

9011608260

main90116-08260

9017908101

main90179-08101

91511J0820

main91511-J0820

91621B0816

main91621-B0816

8 parts on this diagram · 3 diagrams in section
