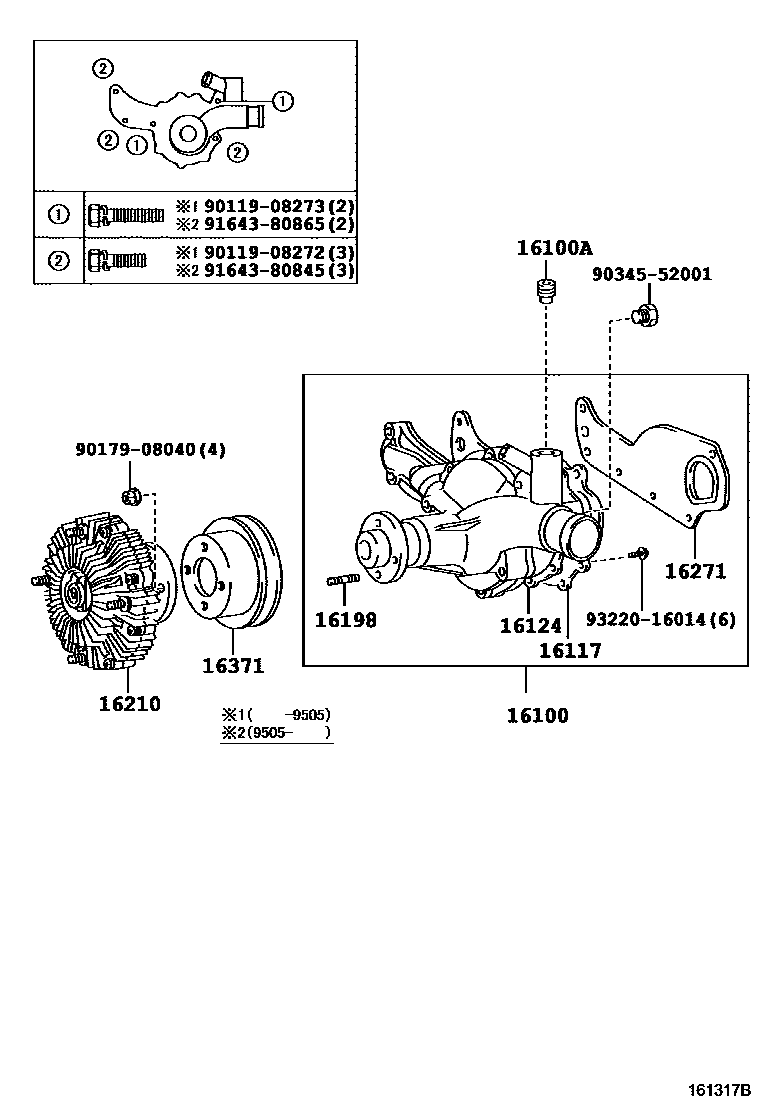

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

16100PUMP ASSY, ENGINE WATER

main16100-19235i1HZ#..HZB50199301-200108

main16100-19325i1HZ..HZB50200108-201501

main16100-59175i14B..BB42..WOC199301-199505

main16100-59176i14B..BB42..WOC199505-201501

main16100-59185i3B..BB40199301-199505

main16100-59185i14B..BB42..LHD..HRF..26S199301-199505

TAIWAN SPEC

main16100-59186i15BFT..BB43,50199705-200003

CHINA OR YOJO SPEC

main16100-59186i14B..BB42..22S199505-200003

CHINA SPEC

main16100-59186i14B..BB42..LHD..HRF..26S199505-199705

CHINA OR TAIWAN SPEC

main16100-59187i15BFT..BB50..WOC..5F;15BFT..BB50..CBU..6F;15BFT..BB43,50..RHD..5F200003-200108

CHINA OR YOJO SPEC

main16100-59187i14B..BB42..22S200003-200012

CHINA SPEC

main16100-59187i15BFT..BB50..WOC..6F;15BFT..BB50..STD..WC..IV200003-201501

main16100-59195i14B..BB42..WC..(GCC,GEN)199301-199505

main16100-59195i14B..BB42..WOC199301-199505

BATTERY(48D26R X2)

main16100-59196i14B..BB42..WOC199505-200408

BATTERY(48D26R X2)

main16100-59196i14B..BB42..26S..WC..GEN199907-201108

main16100-59196i14B..BB42..RHD..WC;14B..BB42..LHD..SRF..WC..GEN200408-201501

BATTERY(55D23R X2)

main16100-59225i14B..BB42..LHD..WOC..GEN199301-199505

CIS SPEC & BATTERY(95D31R X2)

main16100-59226i14B..BB42..LHD..SRF..WOC..GEN199505-200701

CIS SPEC & BATTERY(95D31R X2)

main16100-59295i15BFTE..BB5#199907-200608

main16100-78110iN04C..XZB40,59;N04C..XZB50..IV;N04C..XZB50..20S,21S200608-200903

main16100-78111iN04C..XZB40,5#200903-200907

main16100-78112iN04C..XZB40,5#..WC;N04C..XZB50..WOC..IV200907-201011

main16100-78170iN04C..XZB50..IV201011-201501

main16100-79245i3RZF..RZB40,50199309-199501

main16100-79255i3RZFE..RZB40,50..GCC,GEN199501-200308

main16100-79445i3RZFE..RZB40,50200308-201501

main16100-E0780iN04C..XZB40,5#201501-201611

16100APLUG, WATER PUMP

main90345-54005i14B..BB42..GCC,GEN199301-201501

16117PLATE, WATER PUMP

main16117-58010i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199301-201501

main16117-58090i15BFTE..BB5#199907-200608

16124GASKET, WATER PUMP COVER

main16124-58010i14B,15BFT,3B..BB4#,5#199301-201501

main16124-58090i15BFTE..BB5#199907-200608

main16124-75020i3RZF..RZB40,50199309-199501

main16124-75030i2TRFE..TRB40,50199501-201501

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-41170i15BFTE,1BZFPE..BB5#,BZB40,50;15BFT..BB50..STD..GEN..CBU..5F199301-201501

main16198-41170i14B..BB42..LHD..HRF..26S199301-199505

TAIWAN SPEC

main16198-41170i14B..BB42..LHD..HRF..26S199505-199705

CHINA OR TAIWAN SPEC

main16198-41170i14B..BB42..22S199505-200012

CHINA SPEC

main16198-41170i14B..BB42..LHD..HRF..26S199705-200108

CHINA OR YOJO SPEC

main92122-60818i3RZF..RZB40,50199309-200308

main92122-80818i2TRFE..TRB40,50200308-201501

16210COUPLING ASSY, FLUID

main16210-17030i1HZ#..HZB50199301-199907

main16210-17080i1HZ..HZB50199907-201501

main16210-58041i14B..BB42..LHD..HRF..26S..WC199705-200108

CHINA OR YOJO SPEC

main16210-58041i15BFT..BB50..CHI199301-201501

main16210-58041i14B..BB42..LHD..HRF..26S199301-199505

TAIWAN SPEC

main16210-58041i14B..BB42..LHD..HRF..26S199505-199705

TAIWAN OR CHINA SPEC

main16210-58041i14B..BB42..22S199505-200012

CHINA SPEC

main16210-58060i15BFTE..BB5#199907-200608

main16210-75040i3RZF..RZB40,50199309-199704

main16210-75060i3RZFE..RZB40,50199704-200708

main16210-75120i2TRFE..TRB40,50200708-201501

main16250-78190iN04C..XZB50..WOC..CBU200608-201106

mainS162501850iN04C..XZB50..IV201106-201501

16271GASKET, WATER PUMP

main16271-17010i1HZ..HZB50..ARL199301-201501

main16271-56030i14B,3B..BB4#199301-199304

main16271-56031i14B,15BFT,3B..BB4#,5#199304-199905

main16271-58010i14B..BB42..WOC..GCC;15BFT..BB50..WOC..5F;15BFT..BB50..EX..GEN;14B..BB42..RHD..HRF..WOC;14B,15BFT..BB4#,50..17S,19S,22S199905-201501

16371PULLEY, FAN

main16107-E0040iN04C..XZB40,5#201501

main16308-78030iN04C..XZB50..STD..GEN200608-201106

main16371-17010i1HZ..HZB50..ARL199301-201501

main16371-56070i14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC199301-201501

main16371-58040i14B..BB42..LHD..HRF..26S199705-199907

CHINA OR YOJO SPEC

main16371-58040i14B..BB42..22S199505-199907

CHINA SPEC

main16371-58040i15BFT..BB50..WOC..5F;15BFT..BB50..CBU..6F;15BFT..BB43,50..RHD..5F199301-200307

main16371-58040i14B..BB42..LHD..HRF199301-199505

TAIWAN SPEC

main16371-58040i14B..BB42..LHD..HRF..26S..WC200012-200108

YOJO SPEC

main16371-58040i14B..BB42..LHD..HRF..26S199505-199705

TAIWAN OR CHINA SPEC

main16371-58041i14B..BB42..22S199907-200012

CHINA SPEC

main16371-58041i14B..BB42..LHD..HRF..26S..WC199907-200108

CHINA OR YOJO SPEC

main16371-58041i14B..BB42..GCC;15B#,1BZFPE..BB5#,BZB40,50200307-201501

main16371-58050i14B..BB42..WC..GCC199301-200208

main16371-58050i14B..BB42..WOC..GCC;14B..BB42..RHD..HRF..WOC199301-200307

BATTERY=48D26R X2 OR 95D31R X2

main16371-58051i14B..BB42..WOC200307-200408

BATTERY=48D26R X2 OR 95D31R X2

main16371-58051i14B..BB42..LHD..HRF200408-201108

main16371-58051i14B..BB42..RHD..WC;14B..BB42..LHD..SRF..WC..GEN200408-201501

BATTERY=(55D23R X2) OR (95D31R X2)

main16371-58051i14B..BB42..GEN201501

BATTERY(55D23R X2)

main16371-75030i3RZFE..RZB40,50199309-200708

main16371-75040i2TRFE..TRB40,50200708-201501

mainS161051140iN04C..XZB40,5#..ARL,GEN,TAIW201106-201501

9011908272

main90119-08272

9011908273

main90119-08273

9017908040

main90179-08040

9034552001

main90345-52001

9164380845

main91643-80845

9164380865

main91643-80865

9322016014

main93220-16014

15 parts on this diagram · 7 diagrams in section
