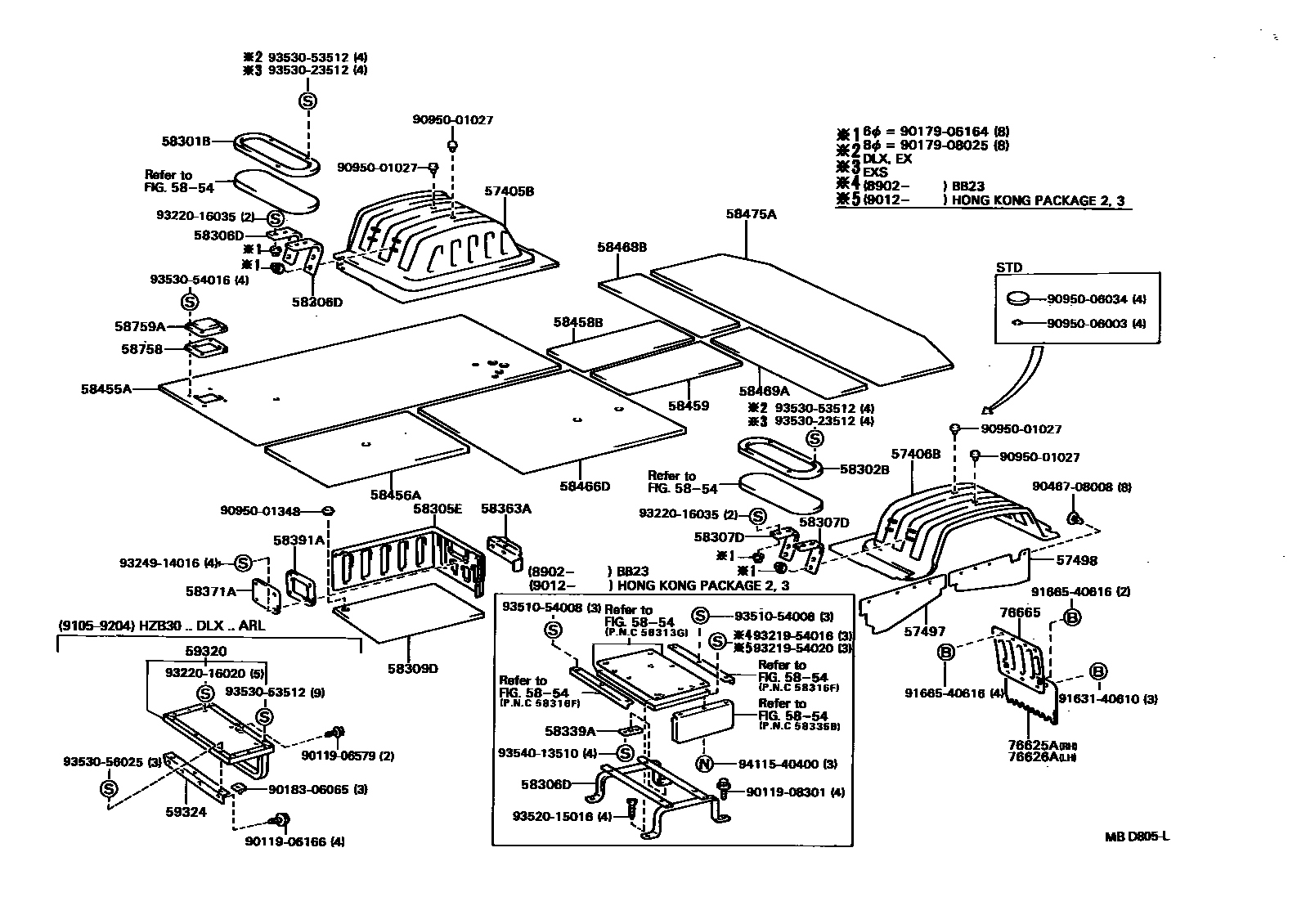

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1

57405BHOUSING SUB-ASSY, REAR FLOOR, RH

main57405-90B00iHZB30..RHD..GEN199001-199301

W/O RR SEAT

main57405-90B01iBB20,21,RB20..20S198205-198903

main57405-90B02iBB20,RB20..LHD..(17S,22S)198304-198408

W/O RR SEAT

main57405-90B05iBB20,21,RB20..LHD..(17S,22S); BB20,21..16S198304-199301

main57405-90B06iBB20..RHD..STD..HRF..GEN198405-198412

HONG KONG SPEC

main57405-90B08iBB20,RB20..RHD..22S198205-198304

main57405-90B09iBB20,RB20..LHD..(17S,22S)198208-198304

W/O RR SEAT

main57405-90B10iBB20..16S198303-198304

main57405-90B12iHZB30..RHD..30S..WC199001-199301

HONG KONG SPEC

main57405-90B13iBB23198902-199301

57406BHOUSING SUB-ASSY, REAR FLOOR, LH

main57405-90B01iHB30..ARL198610-199001

main57406-90B00iHZB30..RHD..30S199001-199301

main57406-90B01iBB20,21,RB20..RHD..22S198205-199301

*GIS

main57406-90B02iHB30..ARL198610-199001

main57406-90B03iFB30,HB30,HZB30..LHD198610-199301

main57406-90B06iBB20,21,RB20..LHD..(17S,22S)198205-199301

*GIS

main57406-90B07iBB20,RB20..RHD..26S198205-198304

main57406-90B08iBB20,21,RB20..RHD..(16S,22S)198205-199301

main57406-90B10iBB20,21,RB20..LHD..(17S,22S)198205-199301

main57406-90B11iBB2#..15S198510-198902

main57406-90B13iHB30..RHD..30S..WC198808-199301

HONG KONG SPEC

main57406-90B14iBB23198902-199301

57497SHIELD, REAR FLOOR HOUSING

main57497-90B02×2iHB30..RHD..30S..WC198808-199001

HONG KONG SPEC

57498SHIELD, REAR FLOOR HOUSING, NO.2

main57498-90B01×2iBB23198808-199301

58301BPLATE SUB-ASSY, FOOTREST, RH

main58315-90B01×2iHB30,HZB30..26S198610-199301

main58315-90B02iBB20,21,RB20..EXS198205-199301

58302BPLATE SUB-ASSY, FOOTREST, LH

main58315-90B01iBB20..RHD..STD..HRF..GEN198405-198510

HONG KONG SPEC

main58315-90B02iBB20,21,RB20..EXS198205-199301

58305EPANEL SUB-ASSY, CENTER DOOR STEP

main58305-90B10iHZB30..RHD..GEN; HZB30..WC..ARL199001-199301

W/AUTO GLIDE DOOR

main58305-90B11iBB32..4FC; HZB30..LHD199001-199301

main58305-90B13iRB20..17S198205-199301

main58305-90B14iHZB30..RHD..GEN; HZB30..WOC..ARL199001-199301

main58305-90B15iBB20,21,FB30,HB30,RB20..LHD..(DLX,STD)..(GEN,ME)198310-199301

W/GLIDE DOOR

main58305-90B16iHZB30..LHD199001-199301

W/AUTO GLIDE DOOR

main58305-90B17iRB20..17S198310-198510

W/GLIDE DOOR

main58305-90B18iRB20..17S198310-199301

W/AUTO GLIDE DOOR

main58305-90B19iBB21..RHD..GEN;BB20,HB30,RB20..RHD..(22S,26S,30S)198310-199301

W/GLIDE DOOR

58306DLEG SUB-ASSY, FOOTREST, RH

main58306-90B02iBB23198902-199301

main58306-90B03iHZB30..RHD..30S..WC199012-199301

HONG KONG PACKAGE 3;HONG KONG PACKAGE 2

main58331-90B01×2iBB20,21,RB20..16S,17S,22S198205-199301

58307DLEG SUB-ASSY, FOOTREST, LH

main58331-90B01×2iBB20,21,RB20..16S,17S,22S198205-199301

58309DPANEL SUB-ASSY, CENTER DOOR STEP, NO.2

main58309-90B02iHZB30..RHD..GEN; HZB30..WOC..ARL199001-199301

main58309-90B03iBB21,HB30,RB20..RHD;BB20..RHD..(16S,20S,22S,26S); BB21..RHD..GEN;BB20,HB30,RB20..RHD..(22S,26S,30S)198310-199301

W/AUTO GLIDE DOOR; W/GLIDE DOOR

main58309-90B04iBB32..4FC; HZB30..LHD199001-199301

main58309-90B05iHZB30..LHD199001-199301

W/GLIDE DOOR

58339ARETAINER, REAR FLOOR FOOTREST LEG

main58339-90B01iBB23198902-199301

58363ABRACKET, GLIDE DOOR ARM

main58363-90B00iBB20,RB20..ARL198205-198310

58371ACOVER, CENTER DOOR STEP SIDE HOLE

main58371-90B00iBB20,RB20..ARL198205-198210

W/GLIDE DOOR

58391APACKING, CENTER DOOR STEP SIDE HOLE

main58391-90B00iBB20,RB20..ARL198205-198210

W/GLIDE DOOR

58455APANEL, REAR FLOOR BOARD, NO.1

main58455-90B01iRB20..17S198205-198510

W/RR HEATER

main58455-90B03iRB20..17S198205-199301

main58455-90B04iBB20..16S198303-198510

main58455-90B05iRB20..17S198510-199301

W/RR HEATER

main58455-90B06iBB20,21..16S198510-199205

58456APANEL, REAR FLOOR BOARD, NO.2 A

main58456-90B00iBB20,21,RB20..EXS198205-199301

58458BPANEL, REAR FLOOR BOARD, NO.4 A

main58458-90B00iBB20,21..16S198303-199205

main58458-90B01iRB20..17S198205-199301

W/RR HEATER

main58458-90B02iRB20..17S198205-199301

58459PANEL, REAR FLOOR BOARD, NO.5 A

main58459-90B00iBB20,21,RB20..EXS198205-199301

58466DPANEL, REAR FLOOR BOARD, NO.2 B

main58466-90B01iBB20,21,RB20..EXS198205-199301

main58466-90B03iRB20..17S198205-198408

W/O RR SEAT

58468BPANEL, REAR FLOOR BOARD, NO.4 B

main58468-90B00iBB20,21,RB20..EXS198205-199301

58469APANEL, REAR FLOOR BOARD, NO.5 B

main58469-90B00iBB20,21,RB20..EXS198205-199301

58475APANEL, REAR FLOOR BOARD, NO.6

main58475-90B00iBB20,21,RB20..EXS198205-199301

main58475-90B01iRB20..17S198205-199301

W/O RR SEAT

5854FLOOR MAT & SILENCER PAD

→ Go to FIG 58-54

58758PACKING, FUEL TANK INSPECTION HOLE COVER

main58758-90B00iBB2#,FB30,HB30,HZB30,RB20198205-199301

58759ACOVER, FUEL TANK INSPECTION HOLE

main58759-90B00iBB2#,FB30,HB30,HZB30,RB20198205-199301

59320BOARD ASSY, SUB FLOOR

main59320-36010iHZB30..WC..ARL199105-199204

59324BASE, SUB FLOOR LEG, NO.2

main59324-36010iHZB30..WC..ARL199105-199204

76625AMUDGUARD, REAR BODY, RH

main76625-90B00iBB2#,FB30,HB30,HZB30,RB20198205-199301

76626AMUDGUARD, REAR BODY, LH

main76626-90B00iBB2#,FB30,HB30,HZB30,RB20198205-199301

76665BRACE, REAR MUDGUARD

main76665-90B00×2iBB2#,FB30,HB30,HZB30,RB20198205-199301

9011906166

main90119-06166

9011906579

main90119-06579

9011908301

main90119-08301

9017906164

main90179-06164

9017908025

main90179-08025

9018306065

main90183-06065

9046708008

main90467-08008

9095001027

main90950-01027

9095001348

main90950-01348

9095006003

main90950-06003

9095006034

main90950-06034

9163140610

main91631-40610

9166540616

main91665-40616

9321954016

main93219-54016

9321954020

main93219-54020

9322016020

main93220-16020

9322016035

main93220-16035

9324914016

main93249-14016

9351054008

main93510-54008

9352015016

main93520-15016

9353023512

main93530-23512

9353053512

main93530-53512

9353054016

main93530-54016

9353056025

main93530-56025

9354013510

main93540-13510

9411540400

main94115-40400

56 parts on this diagram · 5 diagrams in section
