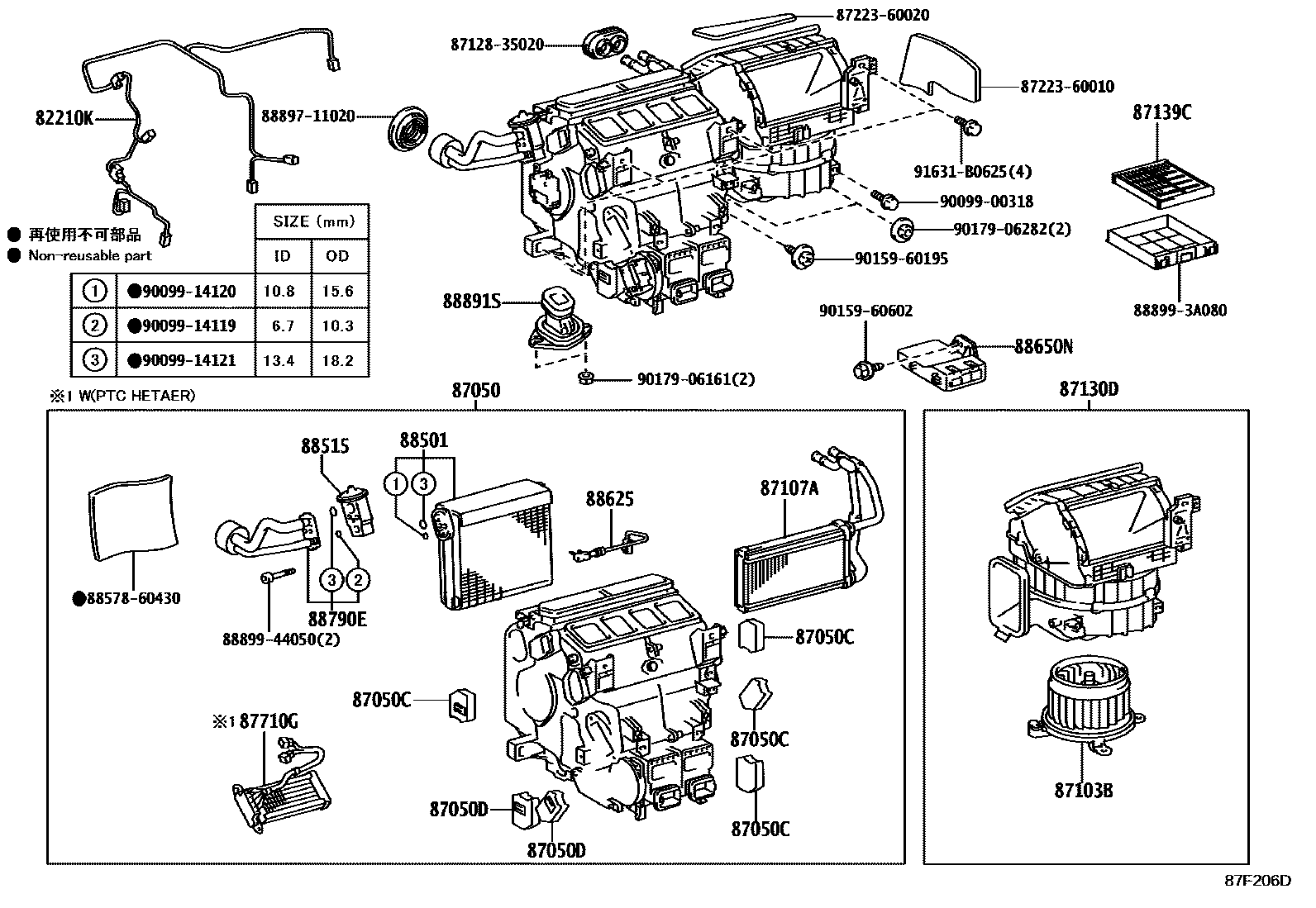

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(COOL BOX); MOROCCO SPEC&WITH(COOL BOX); SOUTH AMERICA SPEC&WITH(COOL BOX)
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
WITH(COOL BOX)
87139CFILTER, CLEAN AIR
MICRO DUST FILTER
DEODORANT FILTER
POLLEN DEODORANT
POLLEN FILTER
MICRO DUST FILTER
87710GQUICK HEATER ASSY
HEATER-4SEAT INDEPENDENT CONTROL & PTC & VISCUS
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
P/N LABEL=8865060J40
P/N LABEL=8865060J41
MINUS ION GENERATOR-WITH
MINUS ION GENERATOR-WITH
88790ETUBE & ACCESSORY ASSY, AIRCONDITIONER
88891SCOVER, COOLER, NO.1
8712835020GROMMET, HEATER
main87128-35020
8722360010PAD, AIR DUCT
main87223-60010
8722360020PAD, AIR DUCT
main87223-60020
8857860430PAKING, COOLER AIR DUCT
main88578-60430
8889711020VALVE, COOLER MAGNET
main88897-11020
888993A080COVER, EVAPORATOR
main88899-3A080
8889944050COVER, EVAPORATOR
main88899-44050
9009900318
main90099-00318
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9015960195
main90159-60195
9015960602
main90159-60602
9017906161
main90179-06161
9017906282
main90179-06282
91631B0625
main91631-B0625
31 parts on this diagram · 8 diagrams in section
