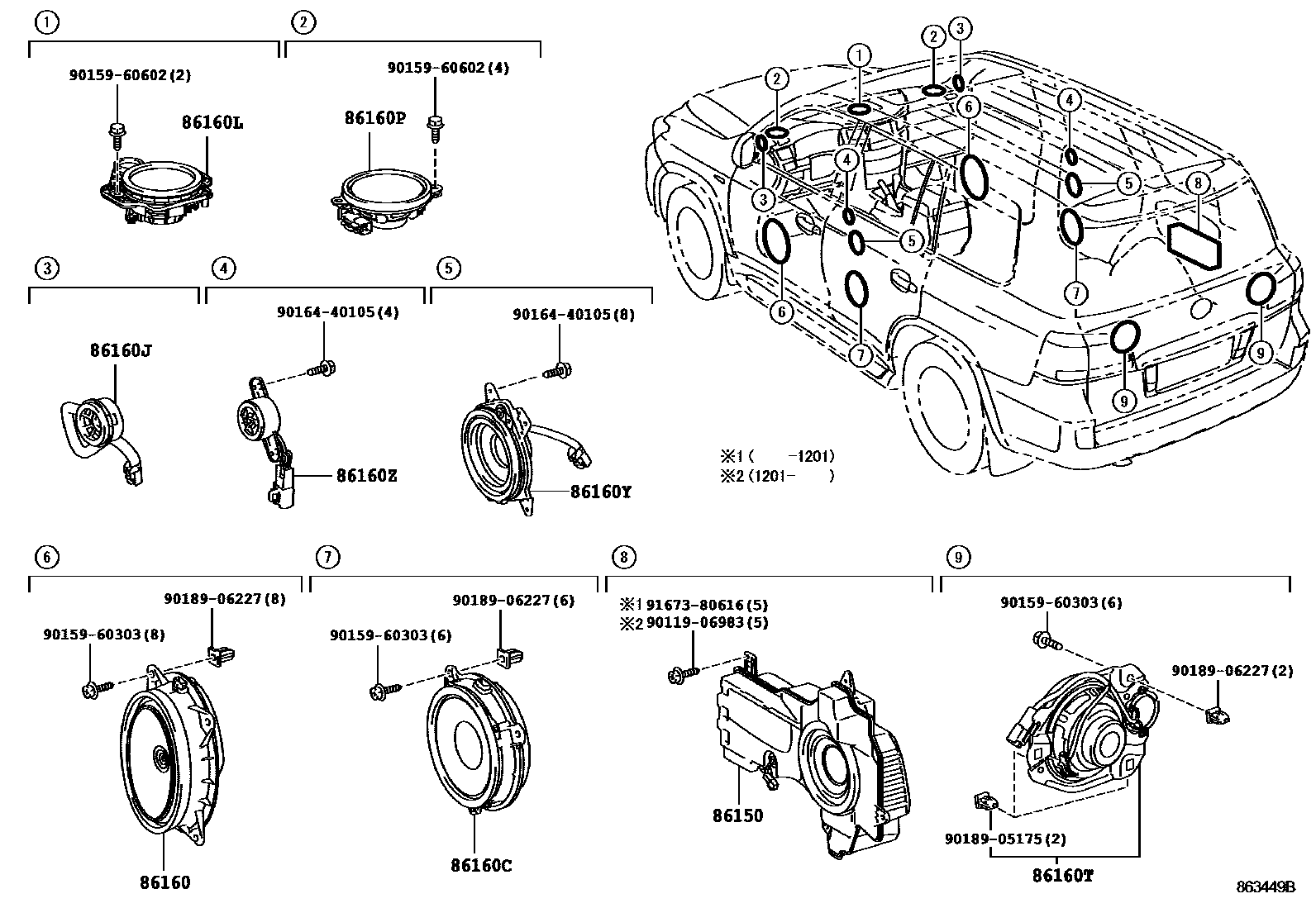

SPEAKER

0001 1 0002 1W(9SPEAKER) 0003 1W(19SPEAKER)

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W100iURJ201200711-201503

main86150-0W101iURJ201201503-201509

86160SPEAKER ASSY, FRONT NO.1

main86160-0WJ90iURJ201200711-201509

86160CSPEAKER SET, REAR

main86160-0WG20iURJ201200711-201509

86160JSPEAKER ASSY, FRONT NO.3

main86160-0WJ80iURJ201200711-201509

86160LSPEAKER ASSY, FRONT NO.4

main86160-0WK60iURJ201200711-201509

main86160-0WX60iURJ201,VDJ201201509

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WK00iURJ201200711-201509

86160TSPEAKER ASSY, REAR HEADER

main86160-0WK80iURJ201200711-201509

86160YSPEAKER ASSY, REAR NO.2

main86160-0WK20iURJ201200711-201509

86160ZSPEAKER ASSY, REAR NO.3

main86160-0WK40iURJ201200711-201509

9011906983

main90119-06983

9015960303

main90159-60303

9015960602

main90159-60602

9016440105

main90164-40105

9018905175

main90189-05175

9018906227

main90189-06227

9167380616

main91673-80616

16 parts on this diagram · 3 diagrams in section
