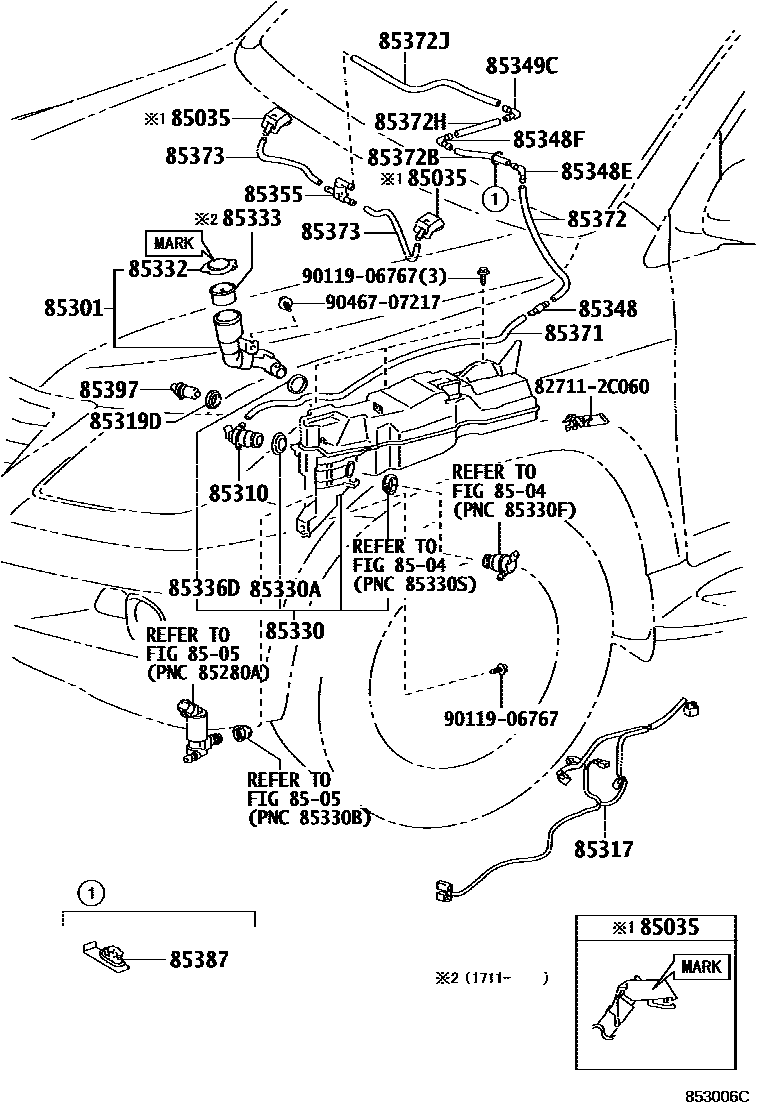

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
MARK +1
MARK +3
MARK -1
8504REAR WASHER
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85317WIRING ASSY, WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
MARK=E13:REF.ILLUST
85333FILTER, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=330)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=240)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=110)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=65)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=760)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=310)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
827112C060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C060
9011906767
main90119-06767
9046707217
main90467-07217
28 parts on this diagram · 2 diagrams in section
