WIRELESS DOOR LOCK

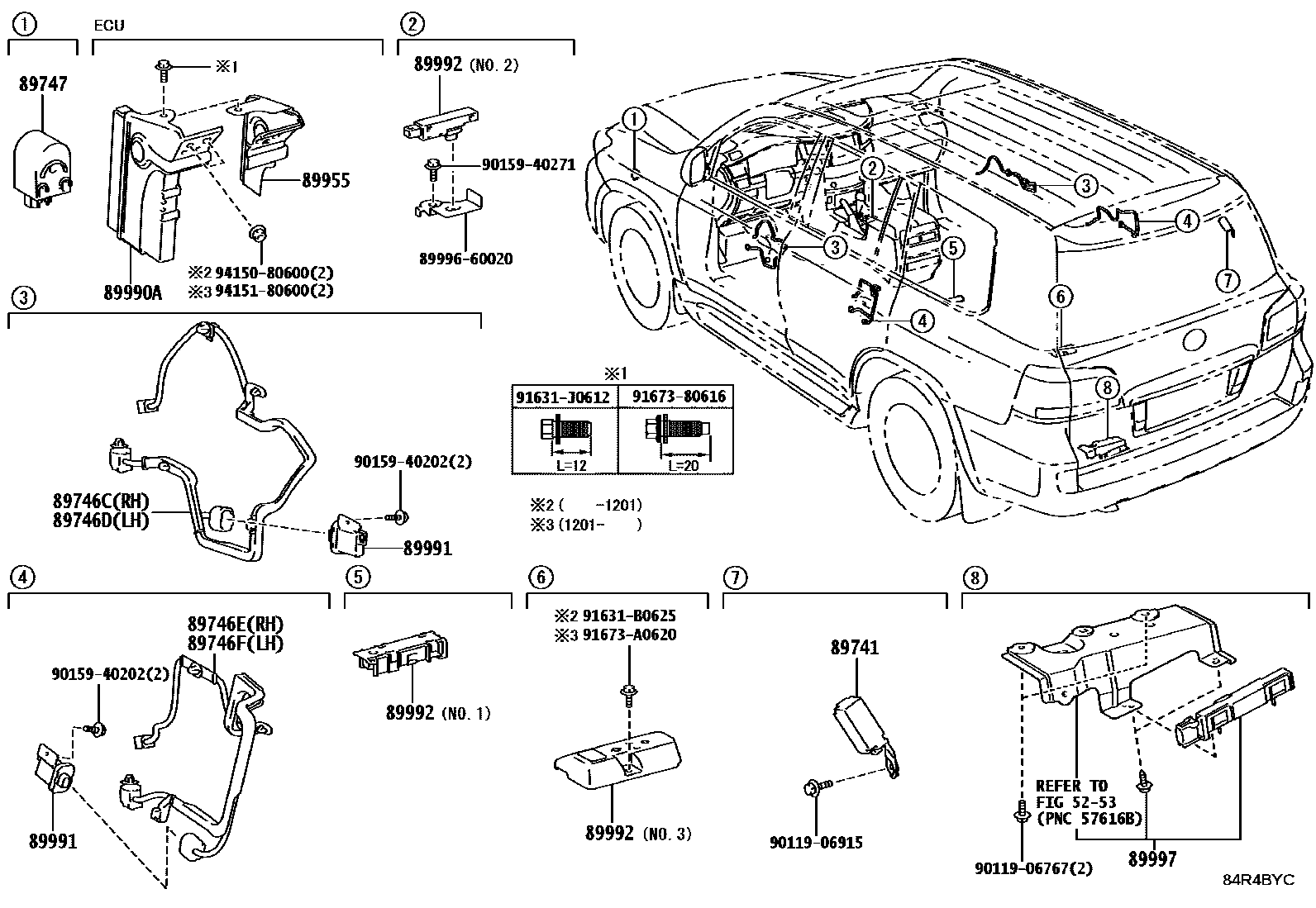

Parts diagram

5253REAR BUMPER & BUMPER STAY

→ Go to FIG 52-53

89741RECEIVER, DOOR CONTROL

main89740-60250i201509

main89740-60022supersedes 89740-60033i200711-201008

TAIWAN SPEC&TAILGATE DOOR EASY CLOSER-WITH; TAIWAN SPEC&TAILGATE DOOR EASY CLOSER-WITH&SMART ENTRY(CARD TYPE)

main89740-60220i201908-202008

SOUTH AMERICA SPEC

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-60010i200711-201201

main89746-60050i201509

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-60020i201201-201509

main89746-60060i201509

89746EHARNESS, ELECTRICAL KEY WIRE, NO.3

main89746-60030i200711-201201

main89746-60070i201509

89746FHARNESS, ELECTRICAL KEY WIRE, NO.4

main89746-60040i200711-201201

main89746-60080i201509

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040i201509

main89747-52010i201201-201509

89955BRACKET, SMART KEY COMPUTER

main85999-60140i200711-201201

89990ACOMPUTER ASSY, SMART KEY

main89990-60104i201301-201410

P/N LABEL=8999060104

main89990-60470i201509-201707

main89990-60471i201708-201808

main89990-60710i201808-201908

main89990-60790i201908

main89990-60180supersedes 89990-60100i200711-200805

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

main89990-60181supersedes 89990-60101i200805-200906

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

main89990-60182supersedes 89990-60105i200907-201005

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

main89990-60183supersedes 89990-60105i201006-201201

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

main89990-60300supersedes 89990-60105i201201-201207

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

main89990-60301supersedes 89990-60103i201208-201301

TAIWAN SPEC&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

main89990-60302i201301-201408

TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR

main89990-60303i201408-201410

TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR,P/N LABEL=8999060303

main89990-60304supersedes 89990-60105i201410-201509

TAIWAN SPEC&PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR,P/N LABEL=8999060304

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-33010×2supersedes 89991-30050i200711-201201

FRONT RH,REAR LH

main89991-33020×2i200711-201201

FRONT LH,REAR RH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-28010i201201-201509

NO.1

main89992-30090i201201-201509

NO.2

main89992-60020i200711-201201

NO.3

89997ANTENNA, ELECTRICAL KEY

main89997-30100i201509

main89997-60030i200711-201201

8999660020CLIP, ELECTRICAL KEY TRANSMITTER

main89996-60020

9011906767

main90119-06767

9011906915

main90119-06915

9015940202

main90159-40202

9015940271

main90159-40271

91631B0625

main91631-B0625

91631J0612

main91631-J0612

9167380616

main91673-80616

91673A0620

main91673-A0620

9415080600

main94150-80600

9415180600

main94151-80600

23 parts on this diagram · 2 diagrams in section
