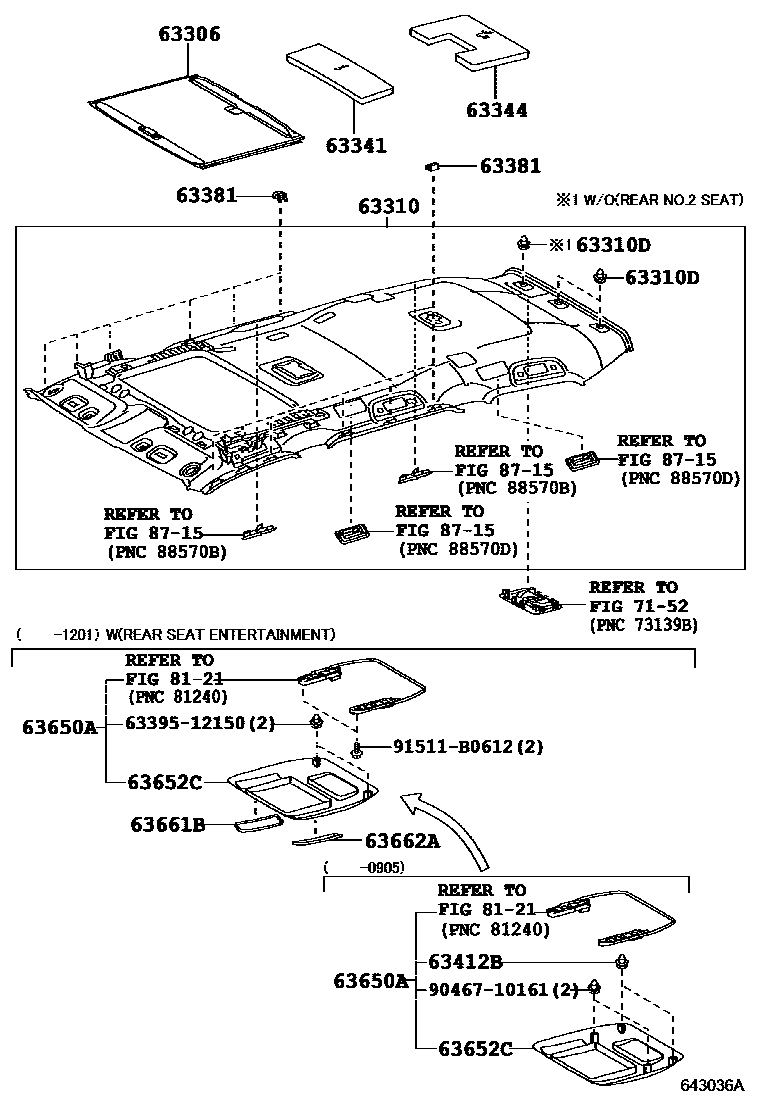

ROOF HEADLINING & SILENCER PAD
63306TRIM SUB-ASSY, SUNSHADE
IVORY,TRIM0#
LT.GRAY,TRIM21,32,45,51
BLACK,TRIM24,27,31,44,52
IVORY,TRIM0#
IVORY,TRIM0#,42,5#
IVORY,TRIM02
LT.GRAY,TRIM05,21,32,45
LT.GRAY,TRIM2#,43
LT.GRAY,TRIM21,22,23,43
LT.GRAY,TRIM1#,2#
BLACK,TRIM06,24,31,33,44
BLACK,TRIM24,3#,41
63310HEADLINING ASSY, ROOF
IVORY,TRIM0#
LT.GRAY,TRIM21,32,45,51
BLACK,TRIM24,27,31,44,52
IVORY,TRIM0#
IVORY,TRIM0#,42,5#
LT.GRAY,TRIM2#,43
LT.GRAY,TRIM21,22,23,43
LT.GRAY,TRIM1#,2#
BLACK,TRIM24,3#,41
IVORY,TRIM02
LT.GRAY,TRIM05,21,32,45
BLACK,TRIM06,24,31,44
IVORY,TRIM02
LT.GRAY,TRIM05,21,32,45,51
BLACK,TRIM06,24,31,44,52
PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE,BLACK,TRIM06,24,27,31,44,52
63310DCLIP, ROOF HEADLINING
PRE-COLLISION SYSTEM-MILLIMETER WAVE RADAR & PRECRASH BRAKE&REAR NO.2 SEAT-WITHOUT
REAR NO.2 SEAT-WITHOUT
63341PAD, ROOF SILENCER, NO.1
63344PAD, ROOF SILENCER, NO.4
63381RETAINER, HEADLINING, FRONT
63412BRETAINER, ROOF CONSOLE
63650ABOX ASSY, ROOF CONSOLE
63652CCOVER, ROOF CONSOLE BOX
63661BCOVER, ROOF LINING TRIM, NO.1
63662ACOVER, ROOF LINING TRIM, NO.2
7152SEAT BELT
8121INTERIOR LAMP
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
6339512150CLIP, ROOF HEADLINING TRIM
main63395-12150
9046710161
main90467-10161
91511B0612
main91511-B0612
17 parts on this diagram · 2 diagrams in section
