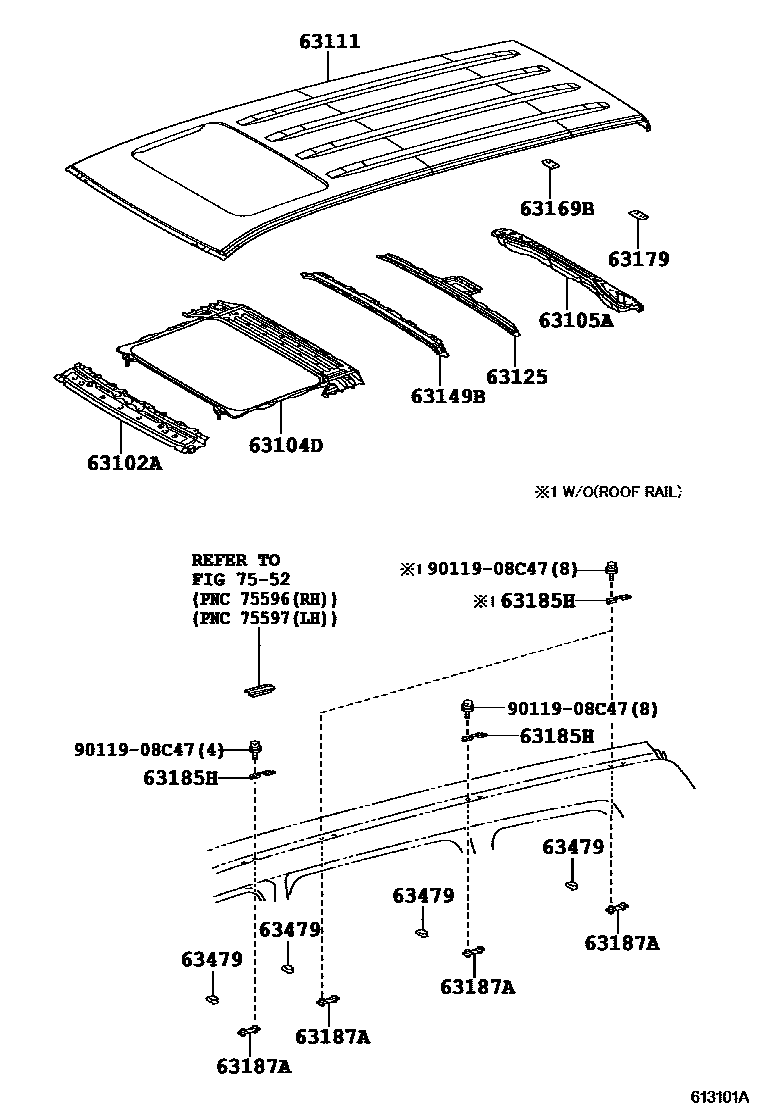

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF PANEL 0003 1ROOF PANEL(MOON ROOF) 0004 1MOON ROOF 0005 1ROOF RAIL 0006 1ROOF RAIL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60110supersedes 63102-60120iURJ201; VDJ201201509

MOON ROOF-WITH(REMOTE CONTROL)

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-60060iURJ201200711-201201

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60280iURJ201200711-201201

63111PANEL, ROOF

main63111-60580iURJ201200711-201201

main63111-60590iURJ201201301-201509

main63111-60800iURJ201201509

main63111-60810iVDJ201201509

main63111-60560iVDJ201201509-201708

AZERBAIJAN, GEORGIA, ARMENIA SPEC&WINDSHIELD GLASS-LAMINATED(ACOUSTIC)

63125REINFORCEMENT, ROOF PANEL, NO.2

main63107-60040iURJ201,VDJ201201509

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63149-60010iURJ201200711-201201

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-60020iURJ201200711-201201

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-60010iURJ201200711-201201

63185HBRACKET, ROOF RACK

main63185-42020×8iURJ201; VDJ201201509

ROOF RACK-ROOF RAIL ONLY(BLACK); ROOF RACK-WITHOUT

63187ABRACKET, ROOF RACK, REAR

main63187-60040×8iURJ201200711-201201

63479RETAINER, ROOF INNER RACK

main63479-60020×8iURJ201200711-201201

7552MOULDING

→ Go to FIG 75-52

9011908C47

main90119-08C47

13 parts on this diagram · 6 diagrams in section
