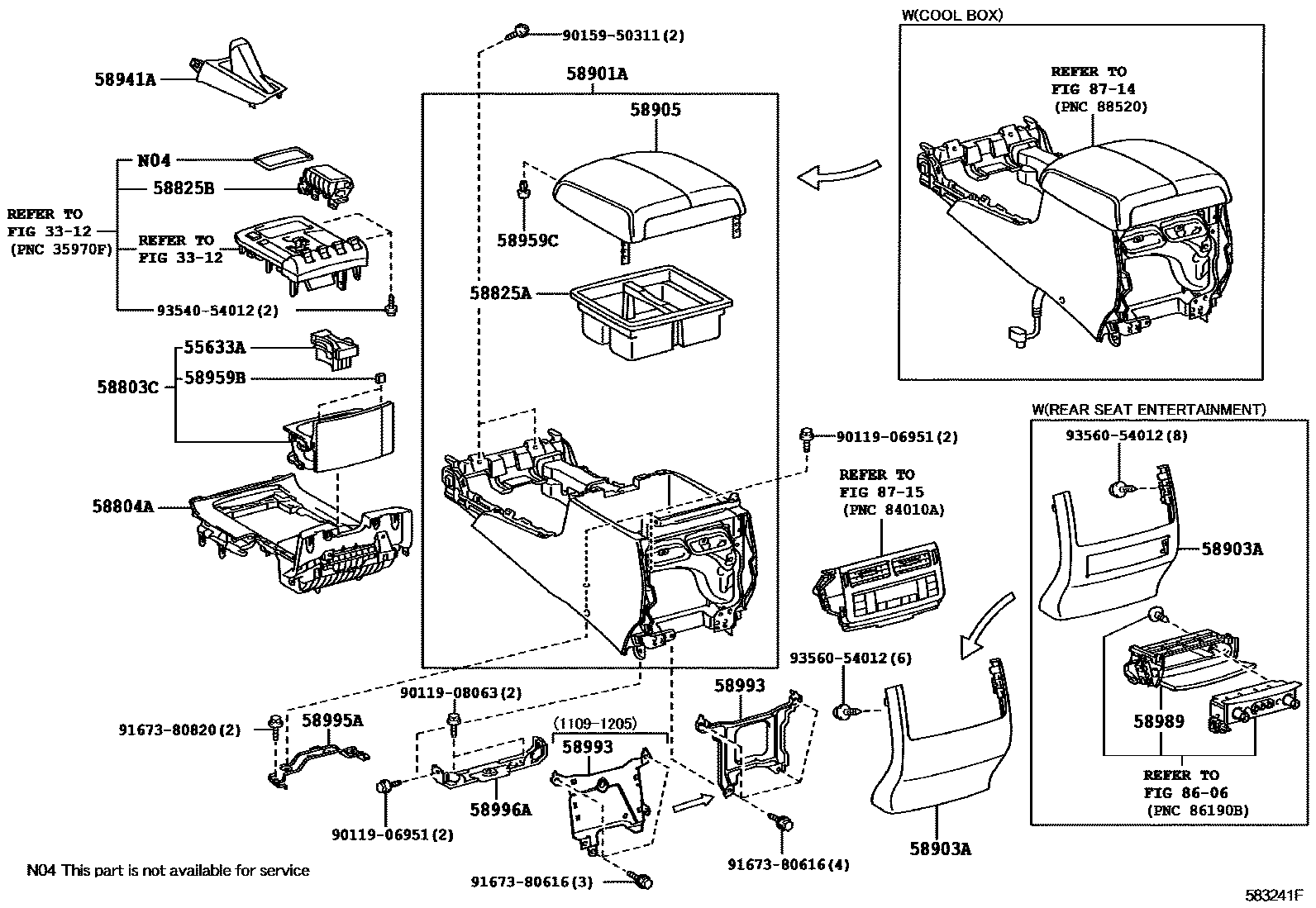

CONSOLE BOX & BRACKET

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-60050i201201-201509

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-60070supersedes 58803-60150i200711-201201

STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH); STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH-W/ACC)

main58803-60120supersedes 58803-60150i201201-201212

STEERING WHEEL-LEATHER&WOOD(BIRDS-EYE MAPLE),W(HEATER)

main58803-60130supersedes 58803-60150i201201-201212

STEERING WHEEL-LEATHER & WOOD(MAHOGANY),W(STRG HEATER)

main58803-60160supersedes 58803-60150i201201-201212

STEERING WHEEL-LTHR & WOOD(BIRDS EYE MAPLE),W(STRG HTR)

main58803-60170supersedes 58803-60350i201509

SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE)

main58803-60210supersedes 58803-60150i201212-201509

STEERING WHEEL-LEATHER & WOOD(MAHOGANY),W(STRG HEATER)

main58803-60230supersedes 58803-60150i201212-201509

STEERING WHEEL-LTHR & WOOD(BIRDS EYE MAPLE),W(STRG HTR)

main58803-60240supersedes 58803-60150i201212-201509

STEERING WHEEL-LEATHER&WOOD(BIRDS-EYE MAPLE),W(HEATER)

main58803-60360supersedes 58803-60350i201509

INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-FULL GROSS)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE)

main58803-60380supersedes 58803-60350i201509

INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-MAT FINISH)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE)

main58803-60400i201808

INSTRUMENT PANEL ORNAMENT-WOOD(SHIMAMOKU BLACK)&SEAT COVER MATERIAL-LEATHER(QUILTING)

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-60420-A0i201008-201201

STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH&HEATER),IVORY,TRIM0#

main58804-60420-B0supersedes 58804-60500-B0i200711-201008

STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH),MD.GRAY,TRIM1#; STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH-W/ACC),MD.GRAY,TRIM1#

main58804-60420-C0supersedes 58804-60500-C0i201008-201201

STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH&HEATER),BLACK,TRIM2#; STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH),BLACK,TRIM2#; STEERING WHEEL-WOOD(BUBINGA),W(STEERING SWITCH-W/ACC),BLACK,TRIM2#

main58804-60800-A1supersedes 58804-60500-A1i201201-201212

STEERING WHEEL-LTHR & WOOD(BIRDS EYE MAPLE),W(STRG HTR),IVORY,TRIM0#

main58804-60800-C0supersedes 58804-60500-C0i201201-201212

STEERING WHEEL-LTHR & WOOD(BIRDS EYE MAPLE),W(STRG HTR),BLACK,TRIM2#

main58804-60820-A0supersedes 58804-60500-A1i201201-201212

STEERING WHEEL-LEATHER&WOOD(BIRDS-EYE MAPLE),W(HEATER),IVORY,TRIM0#

main58804-60820-C0supersedes 58804-60500-C0i201201-201212

STEERING WHEEL-LEATHER&WOOD(BIRDS-EYE MAPLE),W(HEATER),BLACK,TRIM2#

main58804-60A50-A0supersedes 58804-60500-A1i201201-201212

STEERING WHEEL-LEATHER & WOOD(MAHOGANY),W(STRG HEATER),IVORY,TRIM0#

main58804-60A50-C0supersedes 58804-60500-C0i201201-201212

STEERING WHEEL-LEATHER & WOOD(MAHOGANY),W(STRG HEATER),BLACK,TRIM2#

main58804-60B30-A0supersedes 58804-60500-A1i201212-201509

STEERING WHEEL-LEATHER & WOOD(MAHOGANY),W(STRG HEATER),IVORY,TRIM0#

main58804-60B30-C0i201212-201509

STEERING WHEEL-LEATHER & WOOD(MAHOGANY),W(STRG HEATER),BLACK,TRIM2#,3#,4#,5#

main58804-60B50-A1supersedes 58804-60500-A1i201212-201509

STEERING WHEEL-LTHR & WOOD(BIRDS EYE MAPLE),W(STRG HTR),IVORY,TRIM0#

main58804-60B50-C0i201212-201509

STEERING WHEEL-LTHR & WOOD(BIRDS EYE MAPLE),W(STRG HTR),BLACK,TRIM2#,3#,4#,5#

main58804-60B60-A0supersedes 58804-60500-A1i201212-201509

STEERING WHEEL-LEATHER&WOOD(BIRDS-EYE MAPLE),W(HEATER),IVORY,TRIM0#

main58804-60B60-C0i201212-201509

STEERING WHEEL-LEATHER&WOOD(BIRDS-EYE MAPLE),W(HEATER),BLACK,TRIM2#,3#,4#,5#

58825APOCKET, CONSOLE BOX

main58806-60080i201509

58825BPOCKET, CONSOLE BOX

main58806-60060i200711-201201

main58806-60100i201201-201509

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-60820-A5i201509

IVORY(SMOOTH LEATHER),TRIM02

main58901-60820-C4i201509

BLACK(MAJESTY/SMOOTH),TRIM05,06,2#,3#,4#,5#

main58901-60670-A0supersedes 58901-60660-A0i200711-201008

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,IVORY,TRIM0#

main58901-60670-B0supersedes 58901-60660-B0i200711-201008

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,MD.GRAY,TRIM1#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58923-60060i200711-200802

main58923-60070-A0supersedes 58923-60150-A0i200711-201201

REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM0#; TAIWAN SPEC&REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM0#

main58923-60070-B0supersedes 58923-60060-B0i200711-201008

REAR SEAT ENTERTAINMENT-WITH,MD.GRAY,TRIM1#; TAIWAN SPEC&REAR SEAT ENTERTAINMENT-WITH,MD.GRAY,TRIM1#

main58923-60070-C0supersedes 58923-60060-C0i201008-201201

REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#; TAIWAN SPEC&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#

main58923-60150-A0i201509-201603

IVORY,TRIM02; SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE),IVORY,TRIM02

main58923-60150-C0i201808

INSTRUMENT PANEL ORNAMENT-WOOD(SHIMAMOKU BLACK)&SEAT COVER MATERIAL-LEATHER(QUILTING),BLACK,TRIM0#,2#,3#,4#,5#; INSTRUMENT PANEL ORNAMENT-WOOD(SHIMAMOKU BLACK)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE),BLACK,TRIM0#,2#,3#,4#,5#; INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-FULL GROSS)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE),BLACK,TRIM05,06,2#,3#,4#,5#; INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-MAT FINISH)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE),BLACK,TRIM05,06,2#,3#,4#,5#; SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE),BLACK,TRIM3#,4#

main58923-60160-A0supersedes 58923-60150-A0i201509-201603

REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM02; SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE)&REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM02

main58923-60160-C0i201603

REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-60580-A5i201509

IVORY(SMOOTH LEATHER),TRIM02

main58905-60580-C4i201509

BLACK(MAJESTY/SMOOTH),TRIM05,06,2#,3#,4#,5#

main58905-60250-A1supersedes 58905-60240-A2i200711-201008

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,NEW IVORY,TRIM0#

main58905-60250-B1supersedes 58905-60240-B2i200711-201008

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,MD.GREY,TRIM1#

58941ACOVER, PARKING BRAKE HOLE

main58809-60010-B0i200711-201008

MD.GRAY,TRIM1#

main58809-60010-C0i201201-201509

BLACK,TRIM2#; STEERING WHEEL-LEATHER & WOOD(MAHOGANY),W(STRG HEATER),BLACK,TRIM2#,3#,4#,5#; STEERING WHEEL-LEATHER&WOOD(BIRDS-EYE MAPLE),W(HEATER),BLACK,TRIM2#,3#,4#,5#; STEERING WHEEL-LTHR & WOOD(BIRDS EYE MAPLE),W(STRG HTR),BLACK,TRIM2#,3#,4#,5#

main58809-60010-A1i201201-201509

IVORY,TRIM0#; STEERING WHEEL-LEATHER & WOOD(MAHOGANY),W(STRG HEATER),IVORY,TRIM0#; STEERING WHEEL-LEATHER&WOOD(BIRDS-EYE MAPLE),W(HEATER),IVORY,TRIM0#; STEERING WHEEL-LTHR & WOOD(BIRDS EYE MAPLE),W(STRG HTR),IVORY,TRIM0#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60030×2i200711-201201

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main58959-35010×2i201509

main58959-60060×4i200711-201008

58989PANEL, CONSOLE COMPARTMENT DOOR

main58906-60040-A0i200711-201201

REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM0#; TAIWAN SPEC&REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM0#

main58906-60040-A1i201201-201509

REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),IVORY,TRIM0#; TAIWAN SPEC&REAR SEAT ENTERTAINMENT-WITH(DUAL MONITOR),IVORY,TRIM0#

main58906-60040-B0i200711-201008

REAR SEAT ENTERTAINMENT-WITH,MD.GRAY,TRIM1#; TAIWAN SPEC&REAR SEAT ENTERTAINMENT-WITH,MD.GRAY,TRIM1#

main58906-60040-C0i201008-201201

REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#; TAIWAN SPEC&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM2#

main58906-60080-A0i201509

INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-MAT FINISH)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE)&REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM02; REAR SEAT ENTERTAINMENT-WITH,IVORY,TRIM02

main58906-60080-C0i201509

INSTRUMENT PANEL ORNAMENT-WOOD(WALNUT-MAT FINISH)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE)&REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM05,06,2#,3#,4#,5#; REAR SEAT ENTERTAINMENT-WITH,BLACK,TRIM05,06,2#,3#,4#,5#

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-60090i200711-201109

main86719-60310i201201-201205

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-60070i200711-201201

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-60080i200711-201201

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
