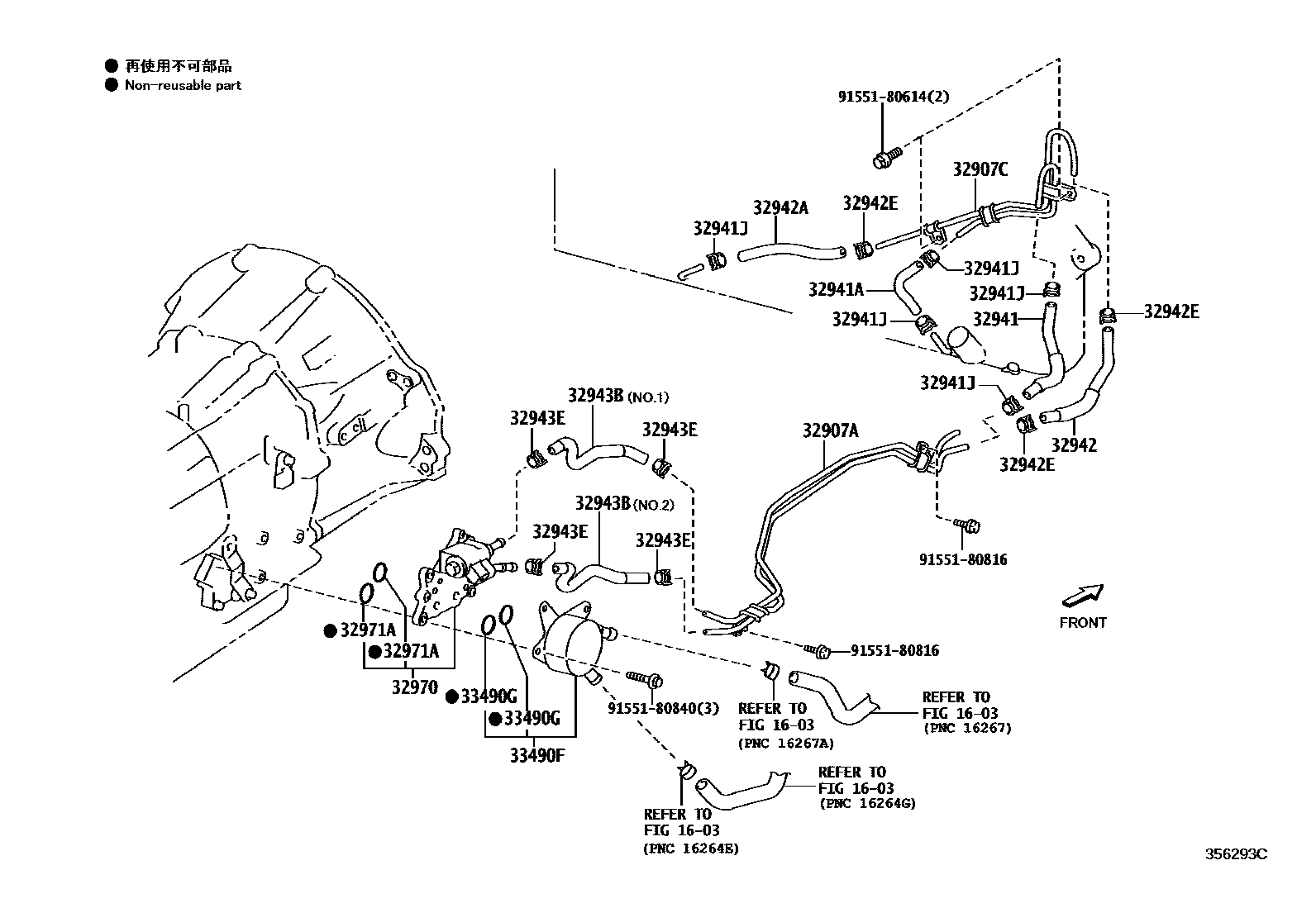

OIL COOLER & TUBE (ATM)

0001 1AB60F 0002 1AE80F 0003 1AB60F

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32907ATUBE, OIL COOLER

main32907-60161iVDJ201201509

main32907-60240iURJ201200711-201201

main32907-60360iURJ201201509

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-60170iVDJ201201509

main32907-60251iURJ201201509

main32907-60260iURJ201201201-201509

32941HOSE, OIL COOLER INLET, NO.1

main32941-60310iVDJ201201509

main32941-60340iURJ201201201-201509

main32941-60390iURJ201201509

32941AHOSE, OIL COOLER INLET, NO.2

main32943-60360iVDJ201201509

main32943-60490iURJ201200711-201201

main32943-60770iURJ201201509

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×5iURJ201201201-201509

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-60440iVDJ201201509

main32942-60500iURJ201200711-201201

main32942-60550iURJ201201509

32942AHOSE, OIL COOLER OUTLET, NO.2

main90445-17182iURJ201200711-201201

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×3iURJ201200711-201201

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-60800iURJ201201509

32943BHOSE, TRANSMISSION OIL COOLER

main32943-60310iURJ201200711-201201

NO.2

main32943-60340iURJ201201201-201509

NO.1

main32943-60351×2iVDJ201201509

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×4iURJ201200711-201201

32970COOLER ASSY, TRANSMISSION OIL W/THERMOSTAT

main32970-34030iURJ201201201-201509

32971ARING, O(FOR TRANSMISSION OIL THERMOSTAT)

main35147-34010×2iURJ201200711-201201

33490FCOOLER ASSY, TRANSMISSION OIL

main33490-34010iURJ201200711-201201

33490GRING, O (FOR TRANSMISSION OIL COOLER)

main90301-19020×2iURJ201200711-201201

9155180614

main91551-80614

9155180816

main91551-80816

9155180840

main91551-80840

19 parts on this diagram · 3 diagrams in section
