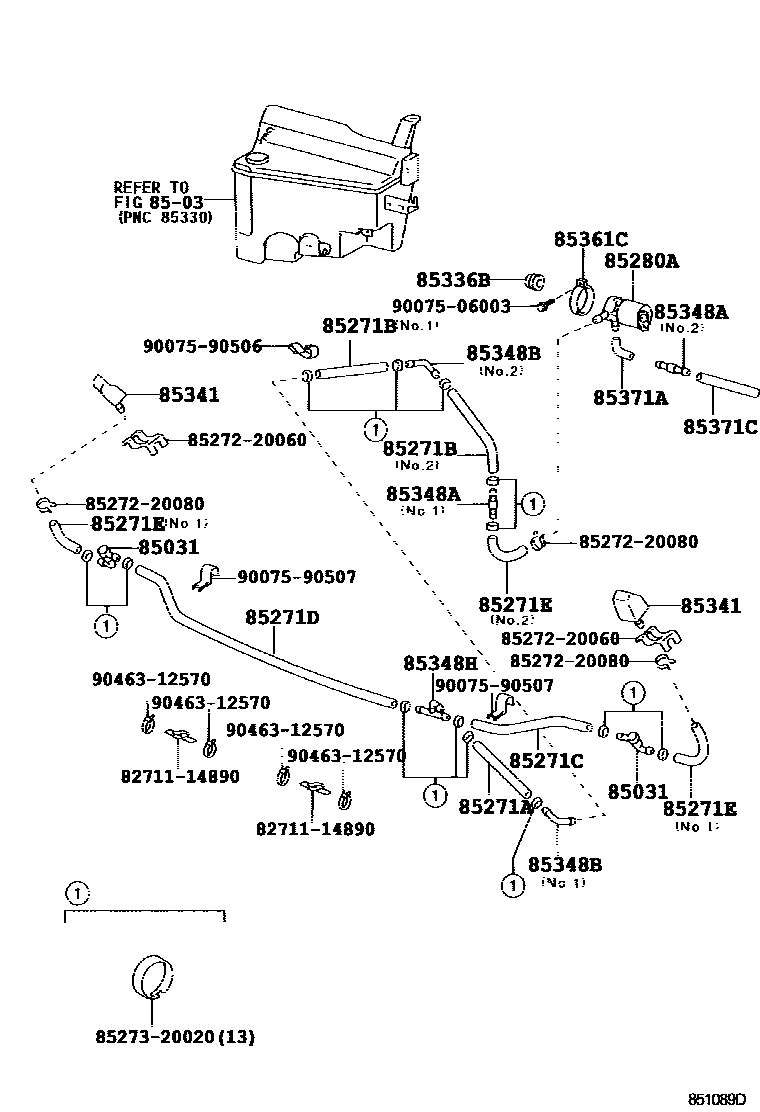

HEADLAMP CLEANER
8503WINDSHIELD WASHER
85031VALVE, HEADLAMP CLEANER WASHER HOSE
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
*H,L=500
L=640(*H,L=320)
85271BHOSE, HEADLAMP CLEANER, NO.3
L=90
L=140X31,NO.2
L=75,NO.1
L=850
85271CHOSE, HEADLAMP CLEANER, NO.4
L=68X68
L=280
85271DHOSE, HEADLAMP CLEANER, NO.5
L=640(*H,L=392)
L=280
L=850
85271EHOSE, HEADLAMP CLEANER, NO.6
NO.2
L=35,NO.1
L=850
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85336BPACKING, HEADLAMP CLEANER WASHER
85341NOZZLE, HEADLAMP CLEANER WASHER
WHITE PEARL CS.,070
WHITE PEARL CS.,062
SILVER ME.,1F7
DK. GRAY M.,202
BEIGE PEARL CS.,4R2
OLIVE M.M.,6T7
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
NO.2
NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
NO.1
NO.2
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85361CBRACKET, WASHER
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=15
85371CHOSE, HEADLAMP CLEANER, NO.1
L=275
8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14890
8527220060CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20060
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
9007506003
main90075-06003
9007590506
main90075-90506
9007590507
main90075-90507
9046312570
main90463-12570
25 parts on this diagram · 2 diagrams in section
