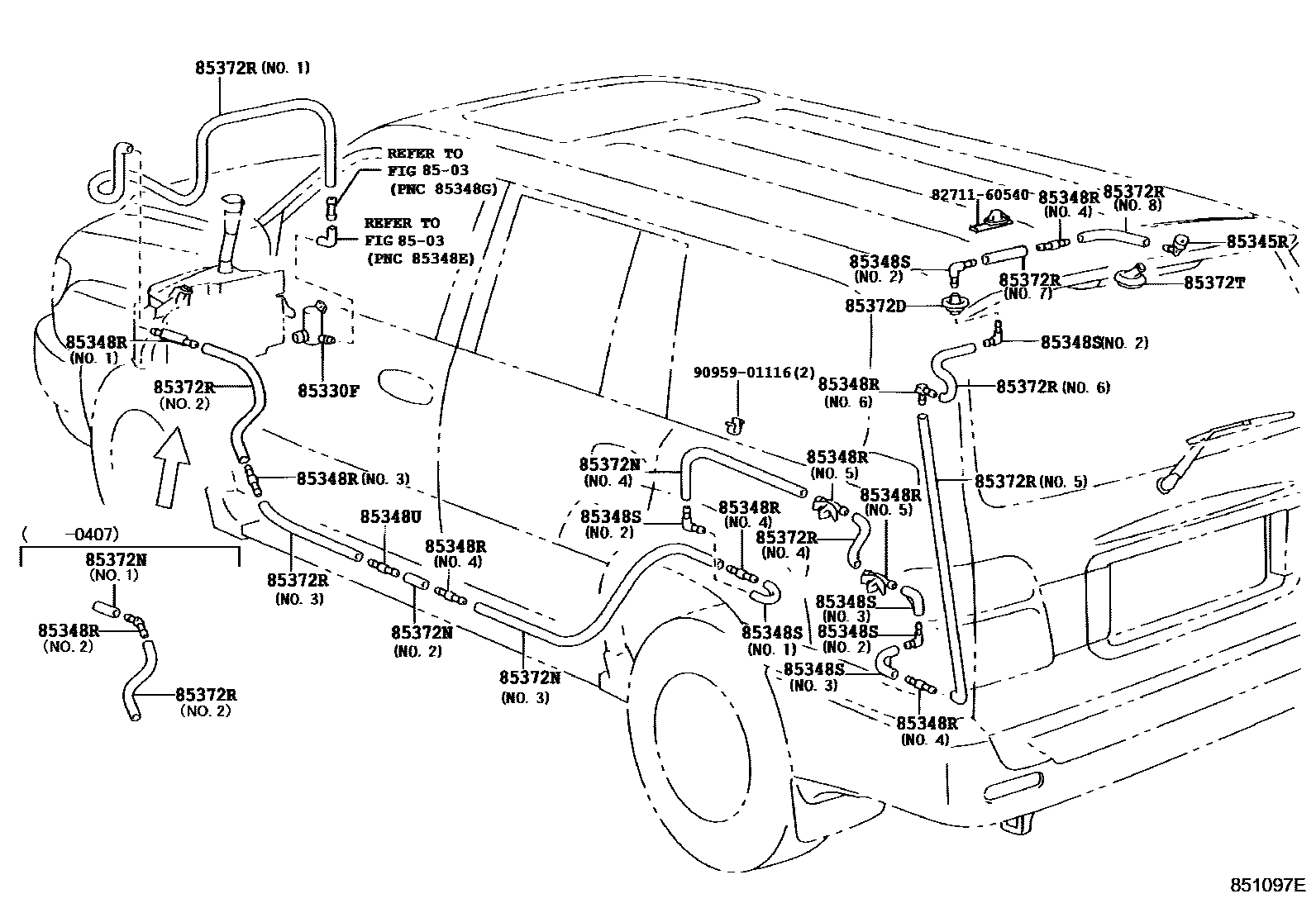

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
NO.3
NO.1
NO.4
NO.2
NO.5
NO.6
85348SJOINT, REAR WASHER ELBOW, NO.1
NO.3
NO.2
NO.1
85348UJOINT, REAR WASHER HOSE, NO.3
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=80),NO.4,NO.2
L=1000(*H,L=580),NO.1
L=2250,NO.3
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1100(*H,L=720),NO.1
L=1450(*H,L=1110),NO.5; L=1450(*H,L=120),NO.6; L=1450(*H,L=140),NO.4; L=1450(*H,L=210),NO.8; L=1450(*H,L=290),NO.7
L=1000(*H,L=580),NO.2
L=1000(*H,L=970),NO.3
85372TGROMMET, WASHER
8271160540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-60540
9095901116
main90959-01116
11 parts on this diagram · 1 diagram in section
