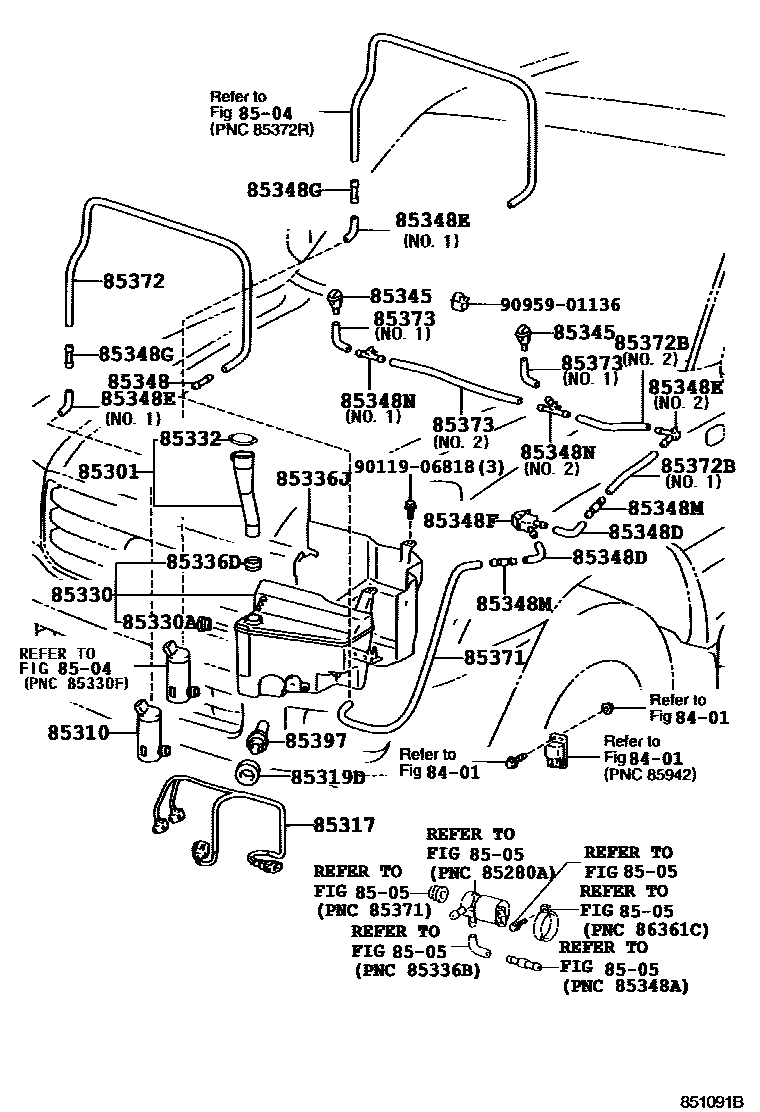

WINDSHIELD WASHER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-60030iUZJ100200208-200308

main85301-60070iUZJ100200308-200505

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-35070iUZJ100200208-200505

85317WIRING ASSY, WASHER

main85327-60120iUZJ100200208-200505

85319DPACKING, FRONT WASHER

main85319-33230iUZJ100200208-200505

85330JAR ASSY, WINDSHIELD WASHER

main85325-60320iUZJ100200208-200505

main85355-60171iUZJ100200505

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×2iUZJ100200208-200505

85332CAP, WINDSHIELD WASHER JAR

main85386-60030iUZJ100200208-200308

main85386-60070iUZJ100200308-200505

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iUZJ100200208-200505

85336JPROTECTOR, WASHER JAR

main85336-60280iUZJ100200505

85345NOZZLE, WINDSHIELD WASHER

main85381-12060×2iUZJ100200208-200505

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iUZJ100200208-200505

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481×2iUZJ100200505

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-32110iUZJ100200208-200505

NO.1

main85377-32220iUZJ100200208-200505

NO.2

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85377-34010iUZJ100200208-200505

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85334-22480iUZJ100200208-200505

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-10260×2iUZJ100200505

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-20800iUZJ100200505

NO.1

main85378-60380iUZJ100200505

NO.2

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iUZJ100200505

L=1450(*H,L=1240)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33075iUZJ100200208-200505

L=1100(*H,L=690)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iUZJ100200208-200505

L=1450(*H,L=300),NO.1,NO.2

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iUZJ100200505

L=1450(*H,L=160),NO.1; L=1450(*H,L=560),NO.2

85397SWITCH ASSY,LEVEL WARNING

main85397-33230iUZJ100200208-200505

9011906818

main90119-06818

9095901136

main90959-01136

27 parts on this diagram · 1 diagram in section
