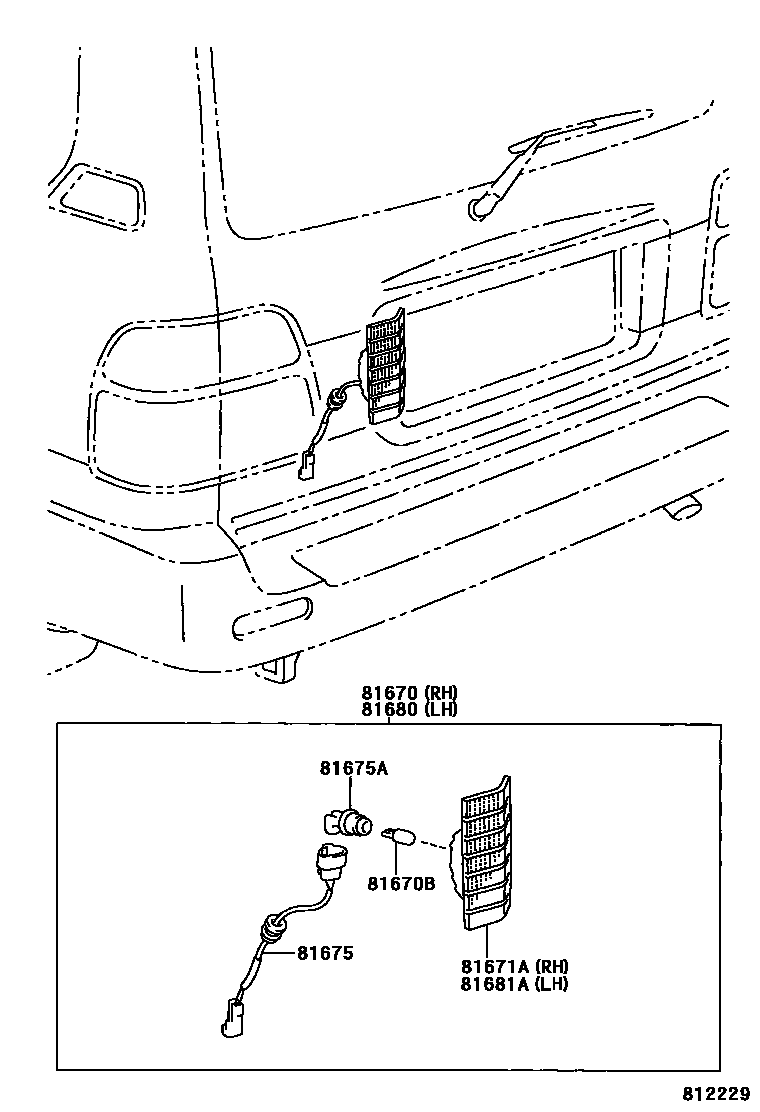

BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-60080iUZJ100200208-200505

81670BBULB(FOR BACK-UP LAMP)

main90981-11059×2iUZJ100200208-200505

12V 16W

81671ALENS & BODY, BACK-UP LAMP

main81671-60080iUZJ100200208-200505

main81671-60081iUZJ100200612

81675SOCKET & WIRE, BACK-UP LAMP

main81675-60080×2iUZJ100200208-200505

81675APLUG, SOCKET(FOR BACK-UP LAMP)

main90075-60005×2iUZJ100200208-200505

81680LAMP ASSY, BACK UP, LH

main81680-60040iUZJ100200208-200505

81681ALENS & BODY, BACK-UP LAMP, LH

main81681-60040iUZJ100200208-200505

main81681-60041iUZJ100200612

7 parts on this diagram · 1 diagram in section
