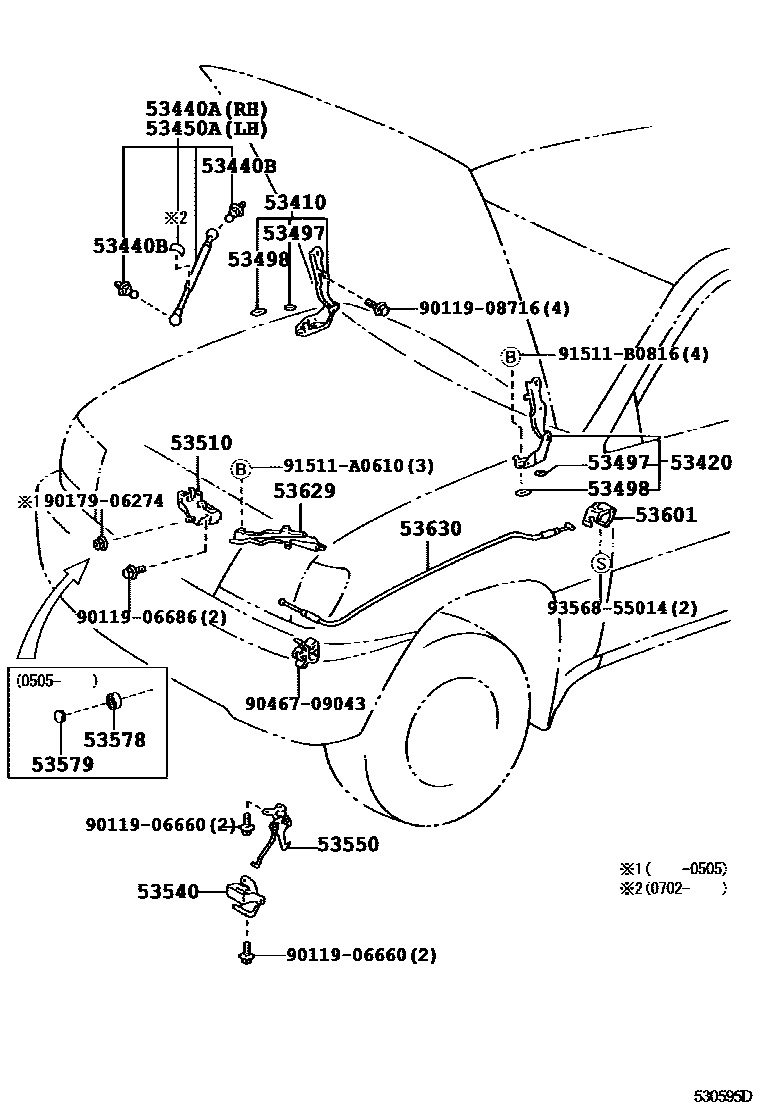

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-60050iUZJ100200208-200505

53420HINGE ASSY, HOOD, LH

main53420-60040iUZJ100200208-200505

53440ASUPPORT ASSY, HOOD, RH

main53440-69035iUZJ100200208-200505

main53440-69036iUZJ100200702

53440BBOLT, HOOD SUPPORT, NO.1

main68961-30020×4iUZJ100200208-200505

53450ASUPPORT ASSY, HOOD, LH

main53450-69035iUZJ100200208-200505

main53450-69036iUZJ100200702

53497PAD, HOOD HINGE, NO.1

main53497-42010×2iUZJ100200208-200505

T=0.5

53498PAD, HOOD HINGE, NO.2

main53498-12050×2iUZJ100200208-200505

53510LOCK ASSY, HOOD

main53510-60130iUZJ100200208-200505

main53510-60210iUZJ100200505

53540LEVER ASSY, AUXILIARY CATCH RELEASE

main53540-30020iUZJ100200208-200505

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-60060iUZJ100200208-200505

main53550-60080iUZJ100200505

53578NUT, HOOD LOCK

main53578-50010iUZJ100200505

53579CAP, HOOD LOCK NUT

main53579-50010iUZJ100200505

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-20060-A1iUZJ100200208-200505

IVORY,TRIM0#

main53601-20060-B6iUZJ100200505-200708

STONE,TRIM1#

53629COVER, HOOD LOCK CONTROL CABLE

main53629-60040iUZJ100200208-200505

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-60110iUZJ100200505

9011906660

main90119-06660

9011906686

main90119-06686

9011908716

main90119-08716

9017906274

main90179-06274

9046709043

main90467-09043

91511A0610

main91511-A0610

91511B0816

main91511-B0816

9356855014

main93568-55014

23 parts on this diagram · 1 diagram in section
