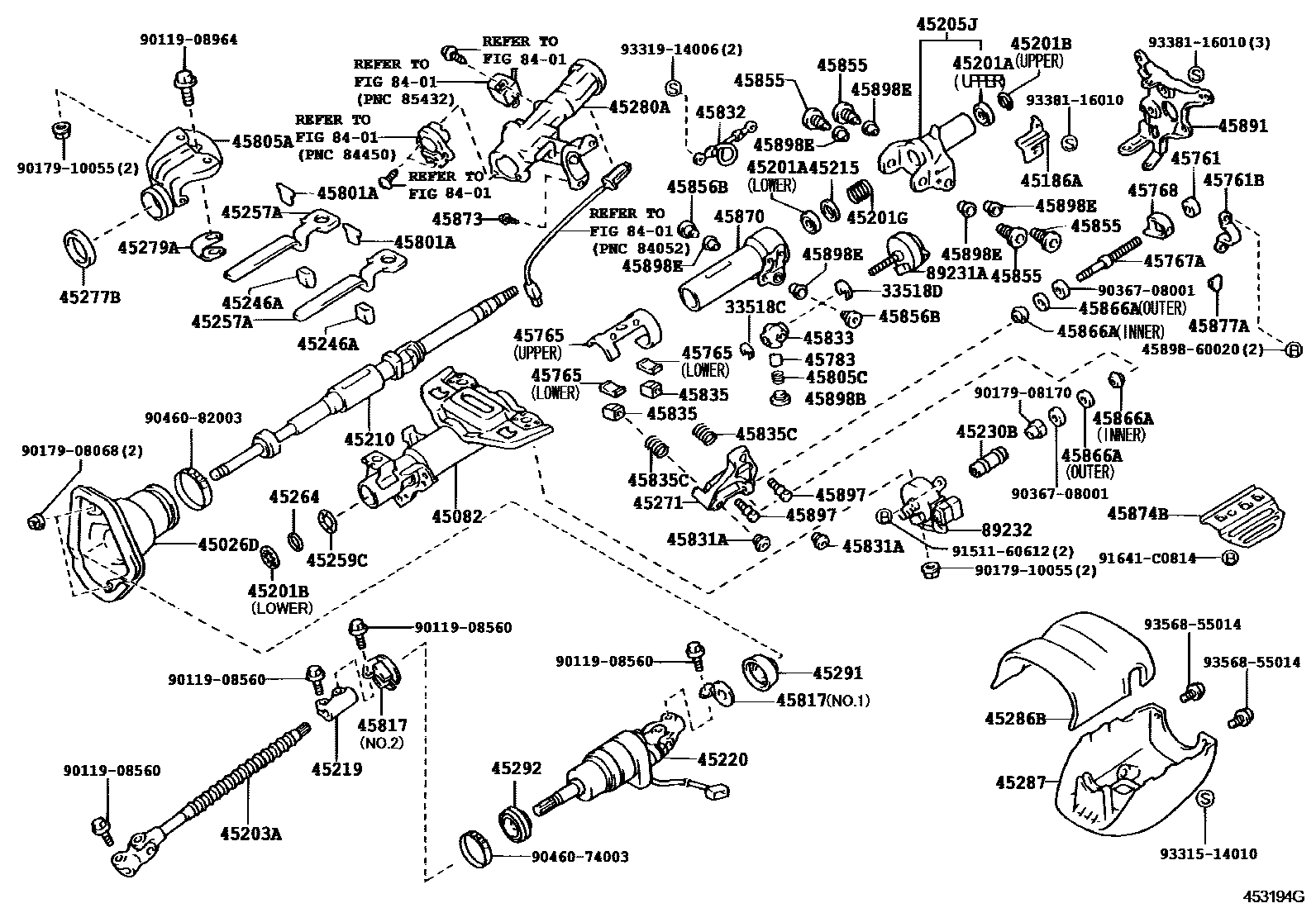

STEERING COLUMN & SHAFT

33518CE RING (FOR TILT MOTOR SHAFT, UPPER)

main90523-06019iUZJ100200208-200505

33518DE RING (FOR TILT MOTOR SHAFT, LOWER)

main90523-08001iUZJ100200208-200505

45026DCOVER SUB-ASSY, STEERING COLUMN HOLE

main45025-60150iUZJ100200208-200505

45082BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE

main45082-60031iUZJ100200505

45186ABRACKET, CONNECTOR, NO.2

main45816-60020iUZJ100200208-200505

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18005iUZJ100200208-200505

LOWER

main90363-18009iUZJ100200208-200505

UPPER

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main45263-60040iUZJ100200505-200708

T=0.5,LOWER

main90520-17042iUZJ100200208-200505

T=1.20,UPPER

45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

main90501-40017iUZJ100200208-200505

45203ASHAFT, STEERING INTERMEDIATE, NO.2

main45203-60110iUZJ100200208-200505

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-60180iUZJ100200208-200505

45210SHAFT ASSY, STEERING MAIN

main45210-60101iUZJ100200208-200505

45215COLLAR, MAIN SHAFT BEARING THRUST

main45215-12010iUZJ100200208-200505

45219YOKE, STEERING SLIDING

main45219-60080iUZJ100200208-200505

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60180iUZJ100200208-200211

main45220-60200iUZJ100200211-200310

main45220-60201iUZJ100200310-200505

main45220-60202iUZJ100200702

45230BJOINT ASSY, STEERING SHAFT UNIVERSAL

main45230-50020iUZJ100200208-200505

45246AGUIDE, STEERING ENERGY ABSORBING PLATE

main45246-50040×2iUZJ100200208-200505

45257APLATE, STEERING COLUMN ENERGY ABSORBING

main45257-12070×2iUZJ100200505

45259CSHEET, STEERING MAIN SHAFT BEARING

main45259-60020iUZJ100200208-200505

45264RING, STEERING COLUMN, NO.2

main45264-60020iUZJ100200208-200505

45271CLAMP, STEERING COLUMN, UPPER

main45271-60030iUZJ100200208-200505

45277BCUSHION(FOR TILT STEERING SUPPORT)

main45848-60010iUZJ100200505-200708

45279AATTACHMENT, STEERING COLUMN TUBE, LWR

main45279-33030iUZJ100200505

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-60600iUZJ100200208-200407

main45280-60610iUZJ100200407-200505

45286BCOVER, STEERING COLUMN, UPR

main45286-60340-B1iUZJ100200505-200708

DK.GRAY,TRIM1#

main45286-60340-E1iUZJ100200505-200708

SANDAL WOOD,TRIM0#

45287COVER, STEERING COLUMN, LWR

main45287-60341-B1iUZJ100200505-200708

DK.GRAY,TRIM1#

main45287-60341-E1iUZJ100200208-200505

SANDAL WOOD,TRIM0#

45291SEAL, MAIN SHAFT UPPER DUST

main45282-60020iUZJ100200208-200505

45292SEAL, MAIN SHAFT LOWER DUST

main45292-60160iUZJ100200208-200505

45761SLIDER, TELESCOPIC STEERING

main45761-60010iUZJ100200208-200505

45761BSUPPORT, TELESCOPIC STEERING SLIDER

main45766-60011iUZJ100200208-200505

45765GUIDE, TELESCOPIC STEERING

main45765-60011iUZJ100200208-200505

UPPER

main45765-60021×2iUZJ100200505

LOWER

45767ASCREW, TELESCOPIC STEERING

main45811-60010iUZJ100200208-200505

45768BUSH, TELESCOPIC STEERING

main45768-60011iUZJ100200208-200505

45783STOPPER, TILT STEERING, NO.1

main45783-60010iUZJ100200208-200505

45801APIN SUB-ASSY, STEERING ENERGY ABSORBING

main45875-12010×2iUZJ100200208-200505

45805ASUPPORT SUB-ASSY, TILT STEERING

main45805-60020iUZJ100200208-200505

45805CSPRING, COMPRESSION(FOR TILT STEERING SUPPORT)

main90504-14007iUZJ100200505

45817STOPPER, STEERING SHAFT THRUST

main45808-60010iUZJ100200208-200505

NO.2

main45817-60020iUZJ100200208-200505

NO.1

45831ABOLT, TELESCOPE LEVER LOCK

main45831-60010×2iUZJ100200505

45832CABLE, TILT STEERING SUPPORT BOND

main45832-60010iUZJ100200208-200505

45833NUT, TILT STEERING ADJUSTING, NO.1

main45833-60010iUZJ100200208-200505

45835WEDGE, LOCK

main45835-60010×2iUZJ100200208-200505

45835CSPRING, COMPRESSION(FOR STEERING TELESCOPIC WEDGE LOCK)

main90501-23140×2iUZJ100200208-200505

45855BOLT, TILT STEERING, NO.1

main45855-60010×4iUZJ100200505

OD=11.993-11.979

45856BSHAFT, T1LT STEERING, NO.2

main45856-60010×2iUZJ100200208-200505

45866ASTOPPER, STEERING MAIN SHAFT BUSH

main45866-60010×2iUZJ100200505

INNER

main45866-60020×2iUZJ100200505

OUTER

45870TUBE ASSY, STEERING COLUMN

main45870-60160iUZJ100200208-200505

45873STOPPER, STEERING COLUMN TUBE

main45873-60010iUZJ100200208-200505

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-60010iUZJ100200208-200505

45877ASPACER, STEERING COLUMN BRACKET

main45877-60011iUZJ100200505

45891BRACKET, TURN SIGNAL

main45891-60040iUZJ100200208-200505

45897BOLT, STEERING LOCK SET

main45897-12020×2iUZJ100200208-200505

45898BBOLT, TILT STEERING SUPPORT STOPPER

main45898-60010iUZJ100200208-200505

45898EBUSH(FOR TILT STEERING SUPPORT BOLT)

main90389-08124×6iUZJ100200208-200505

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89231AMOTOR, POWER TILT

main89231-60021iUZJ100200208-200505

main89231-60022iUZJ100200612

89232MOTOR, POWER TELESCOPIC

main89232-60021iUZJ100200208-200505

main89232-60022iUZJ100200612

4589860020BOLT, STEERING LOCK SET

main45898-60020

9011908560

main90119-08560

9011908964

main90119-08964

9017908068

main90179-08068

9017908170

main90179-08170

9017910055

main90179-10055

9036708001

main90367-08001

9046074003

main90460-74003

9046082003

main90460-82003

9151160612

main91511-60612

91641C0814

main91641-C0814

9331514010

main93315-14010

9331914006

main93319-14006

9338116010

main93381-16010

9356855014

main93568-55014
