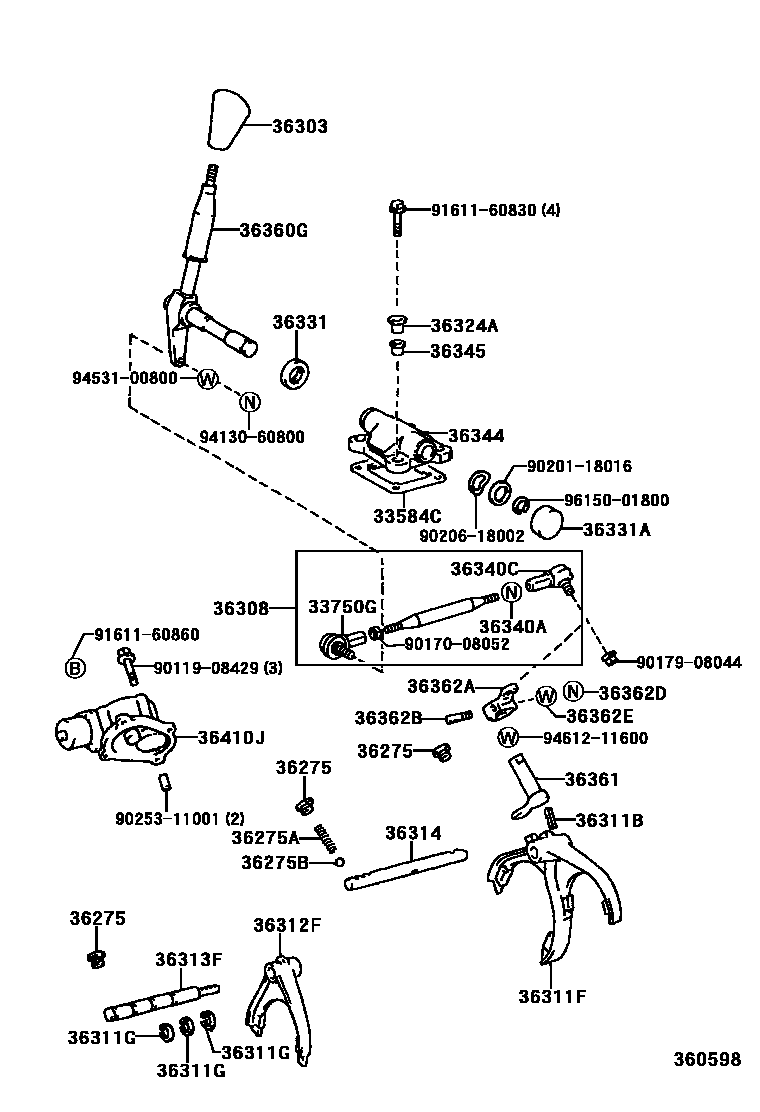

TRANSFER LEVER & SHIFT ROD

33584CGASKET,TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-60010iUZJ100200208-200505

33750GEND ASSY, CONNECTING ROD, NO.2 (FOR TRANSFER SHIFT ROD)

main33750-26010iUZJ100200208-200505

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12008×3iUZJ100200208-200505

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-18093iUZJ100200208-200505

L=23.8

36275BBALL, SHIFT DETENT

main90360-10003iUZJ100200208-200505

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-60240-C0iUZJ100200208-200505

BLACK,TRIM0#,1#

36308ROD SUB-ASSY, HIGH & LOW SHIFT

main36308-60270iUZJ100200208-200505

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05016iUZJ100200208-200505

L=25.5

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-60120iUZJ100200208-200505

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13004×3iUZJ100200208-200505

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-60050iUZJ100200208-200505

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-60100iUZJ100200208-200505

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-60050iUZJ100200208-200505

36324ABUSH, TRANSFER SHIFT LEVER

main36324-60070×4iUZJ100200208-200505

36331BOOT, TRANSFER SHIFT LEVER

main36331-60040iUZJ100200208-200505

36331ABOOT, TRANSFER SHIFT LEVER, NO.2

main36331-60070iUZJ100200208-200505

36340ANUT (FOR HIGH AND LOW SHIFT ROD)

main94130-60800iUZJ100200208-200505

36340CEND ASSY, HIGH & LOW CONNECTING ROD

main33740-26010iUZJ100200208-200505

36344RETAINER, TRANSFER CONTROL SHIFT LEVER

main36344-60080iUZJ100200208-200505

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-60020×4iUZJ100200208-200505

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-60730iUZJ100200208-200505

36361LEVER, TRANSFER SHIFT, INNER

main36361-60030iUZJ100200208-200505

36362ALEVER, TRANSFER SHIFT, OUTER

main36362-60030iUZJ100200208-200505

36362BPIN, LEVER LOCK (FOR TRANSFER SHIFT LEVER OUTER)

main33281-16020iUZJ100200208-200505

36362DNUT (FOR TRANSFER SHIFT OUTER LEVER)

main94130-60800iUZJ100200208-200505

36362EWASHER (FOR TRANSFER SHIFT OUTER LEVER)

main94531-00800iUZJ100200208-200505

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-60061iUZJ100200208-200505

9011908429

main90119-08429

9017008052

main90170-08052

9017908044

main90179-08044

9020118016

main90201-18016

9020618002

main90206-18002

9025311001

main90253-11001

9161160830

main91611-60830

9161160860

main91611-60860

9413060800

main94130-60800

9453100800

main94531-00800

9461211600

main94612-11600

9615001800

main96150-01800

39 parts on this diagram · 1 diagram in section
