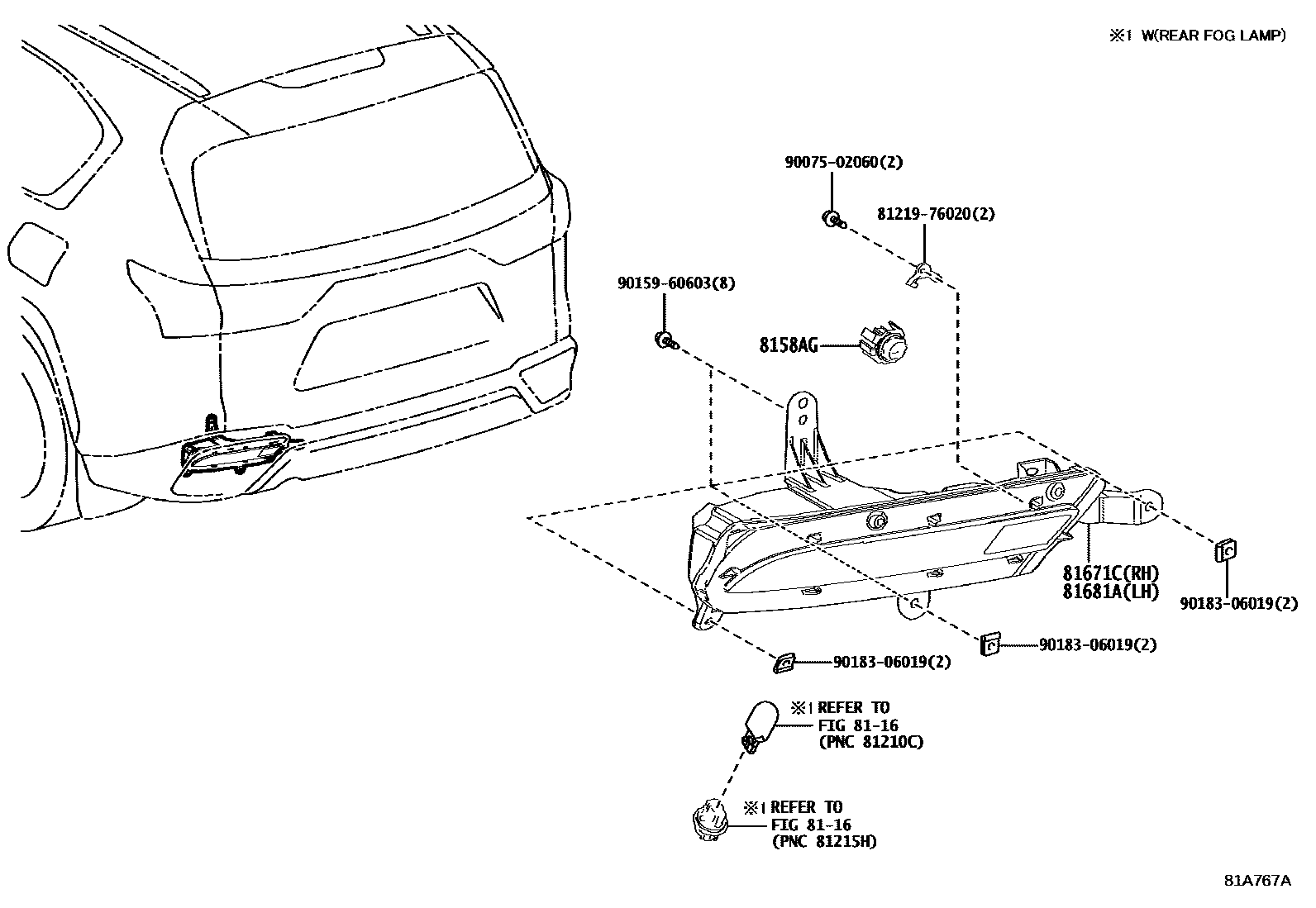

BACK UP LAMP

8116REAR FOG LAMP

→ Go to FIG 81-16

8158AGLED, BACK-UP LAMP

main8158A-12260×2i202112-202411

81671CLENS & BODY, BACK-UP LAMP, RH

main81457-60130i202112-202409

ARGENTINA SPEC&LIGHT CONTROL SYSTEM-3 PEACE; EGYPT SPEC&LIGHT CONTROL SYSTEM-3 PEACE; IRAQ SPEC; JORDAN SPEC; KUWAIT SPEC; LEBANON SPEC; OMAN SPEC; QATAR SPEC; SAUDI ARABIA SPEC; UAE SPEC; YEMEN SPEC

main81457-60131supersedes 81457-60121i202411

81681ALENS & BODY, BACK-UP LAMP, LH

main81456-60130i202112-202409

ARGENTINA SPEC&LIGHT CONTROL SYSTEM-3 PEACE; EGYPT SPEC&LIGHT CONTROL SYSTEM-3 PEACE; IRAQ SPEC; JORDAN SPEC; KUWAIT SPEC; LEBANON SPEC; OMAN SPEC; QATAR SPEC; SAUDI ARABIA SPEC; UAE SPEC; YEMEN SPEC

main81456-60131supersedes 81456-60121i202411

8121976020BOLT, FOG LAMP

main81219-76020

9007502060

main90075-02060

9015960603

main90159-60603

9018306019

main90183-06019

8 parts on this diagram · 1 diagram in section
