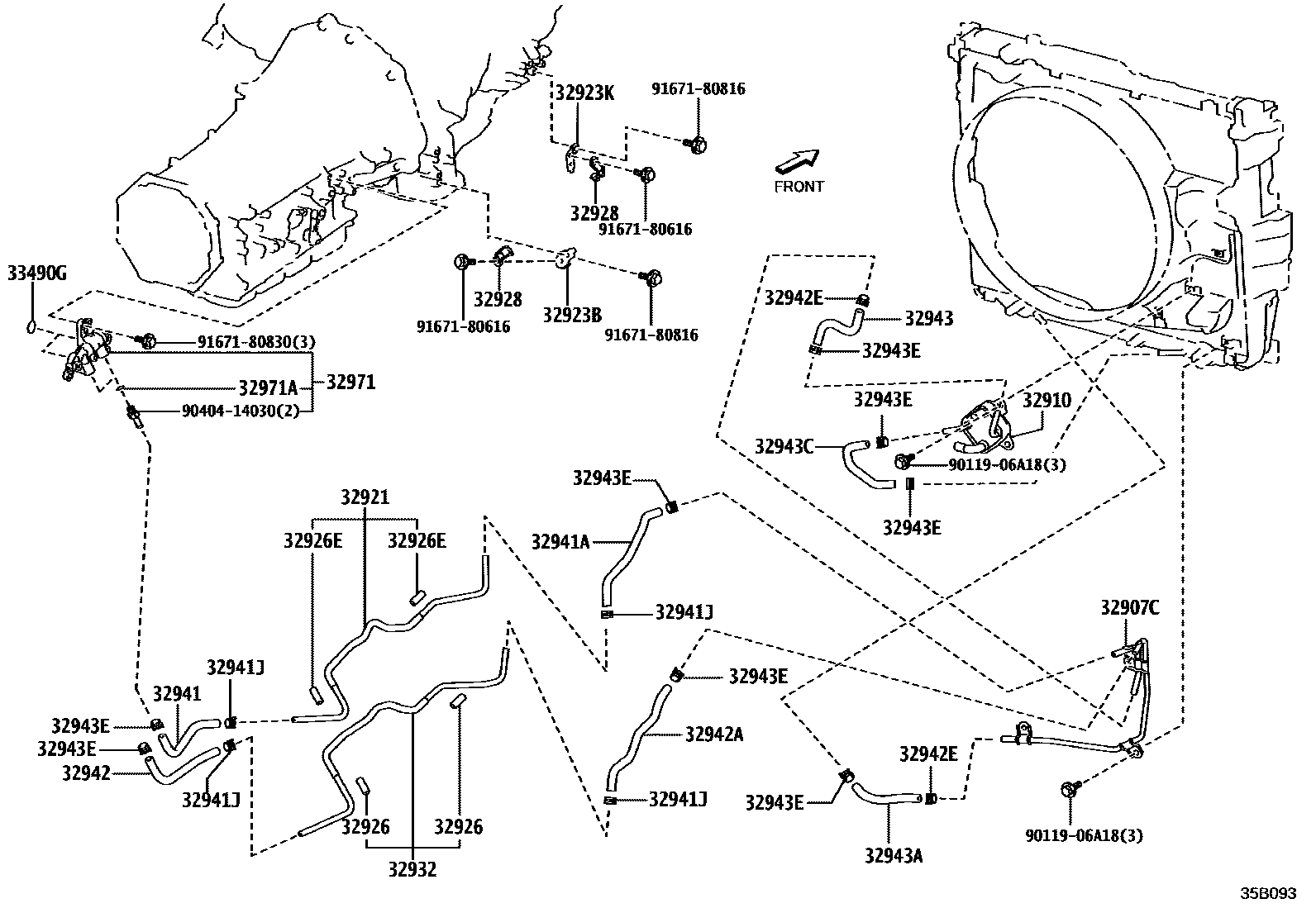

OIL COOLER & TUBE (ATM)

0001 1AJA0F 0002 1AJA0F 0003 1L4A0F

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-60400iVJA310,VJH310202411

main32907-60410iFJA310202411

32910COOLER ASSY, OIL

main32910-60190iVJA310,VJH310202411

32921TUBE, OIL COOLER INLET, NO.1

main32921-60490iVJA310202112-202411

main32921-60510iFJA310202411

main32921-60630iVJH310202411

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-60220iVJA310202411

main32923-60260iVJH310202411

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32924-60210iVJA310,VJH310202411

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×3iFJA310,VJA310; VJH310202411

L=35,ID=10

32926ECUSHION, OIL COOLER TUBE, NO.2(ATM)

main32926-30030×2iFJA310; VJA310; VJH310202411

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-60170iVJH310202411

main32928-60180×2iVJA310202411

32932TUBE, OIL COOLER OUTLET

main32922-60520iVJA310202411

main32922-60540iFJA310202112-202411

main32922-60660iVJH310202411

32941HOSE, OIL COOLER INLET, NO.1

main32941-60420iVJA310202411

main32941-60460iFJA310202411

main32941-60570iVJH310202411

32941AHOSE, OIL COOLER INLET, NO.2

main32941-60450iVJA310202112-202406

main32941-60451iVJA310202406-202411

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iFJA310; VJA310202112-202411

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-60580iVJA310202112-202411

main32942-60630iFJA310202411

main32942-60740iVJH310202411

32942AHOSE, OIL COOLER OUTLET, NO.2

main32942-60620iVJA310202112-202406

main32942-60621iVJA310,VJH310202411

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iFJA310,VJA310,VJH310202411

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-60880iVJA310202112-202406

main32943-60881iVJA310,VJH310202411

main32943-60890iFJA310202112-202405

main32943-60891iFJA310202411

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-60890iVJA310202112-202405

main32943-60891iVJA310202406-202411

main32943-60A10iFJA310202411

32943CHOSE, TRANSMISSION OIL COOLER, NO.3

main32943-60A00iVJA310202112-202405

main32943-60A01iVJA310,VJH310202411

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×4iFJA310; VJA310202112-202411

32971THERMOSTAT, TRANSMISSION OIL

main32971-60030iVJA310,VJH310202411

32971ARING, O(FOR TRANSMISSION OIL THERMOSTAT)

main90301-11031×2iVJA310,VJH310202411

33490GRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012×2iVJA310,VJH310202411

9011906A18

main90119-06A18

9040414030

main90404-14030

9167180616

main91671-80616

9167180816

main91671-80816

9167180830

main91671-80830

27 parts on this diagram · 3 diagrams in section
