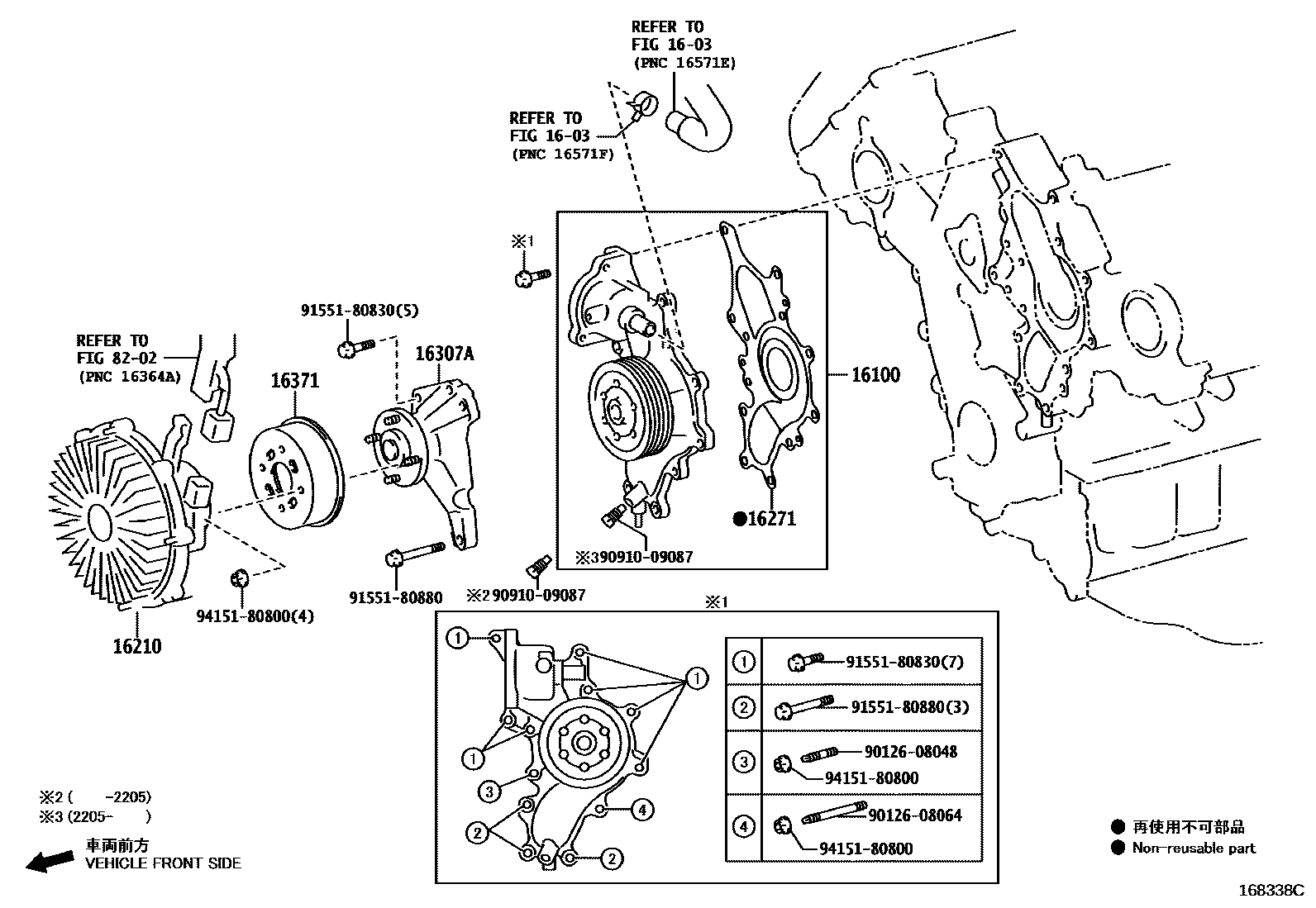

WATER PUMP

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-59375iF33AFTV..FJA310202112-202205

main16100-69555iF33AFTV..FJA310202205-202411

main16100-79525iV35AFTS..VJA310,VJH310202112-202411

16210COUPLING ASSY, FLUID

main16210-52030iF33AFTV..FJA310202112-202411

main16210-70110iV35AFTS..VJA310202112-202407

main16210-70111iV35AFTS..VJA310202408-202411

16271GASKET, WATER PUMP

main16271-52010iF33AFTV..FJA310202112-202411

main16271-70020iV35AFTS..VJA310,VJH310202112-202411

NO.2

main16271-70030iV35AFTS..VJA310,VJH310202112-202411

NO.1

16307ABRACKET SUB-ASSY, FAN

main16307-52010iF33AFTV..FJA310202112-202411

16371PULLEY, FAN

main16371-0W010iV35AFTS..VJA310202112-202411

main16371-51020iF33AFTV..FJA310202112-202411

8202WIRING & CLAMP

→ Go to FIG 82-02

9012608048

main90126-08048

9012608064

main90126-08064

9091009087

main90910-09087

9155180830

main91551-80830

9155180880

main91551-80880

9415180800

main94151-80800

13 parts on this diagram · 2 diagrams in section
