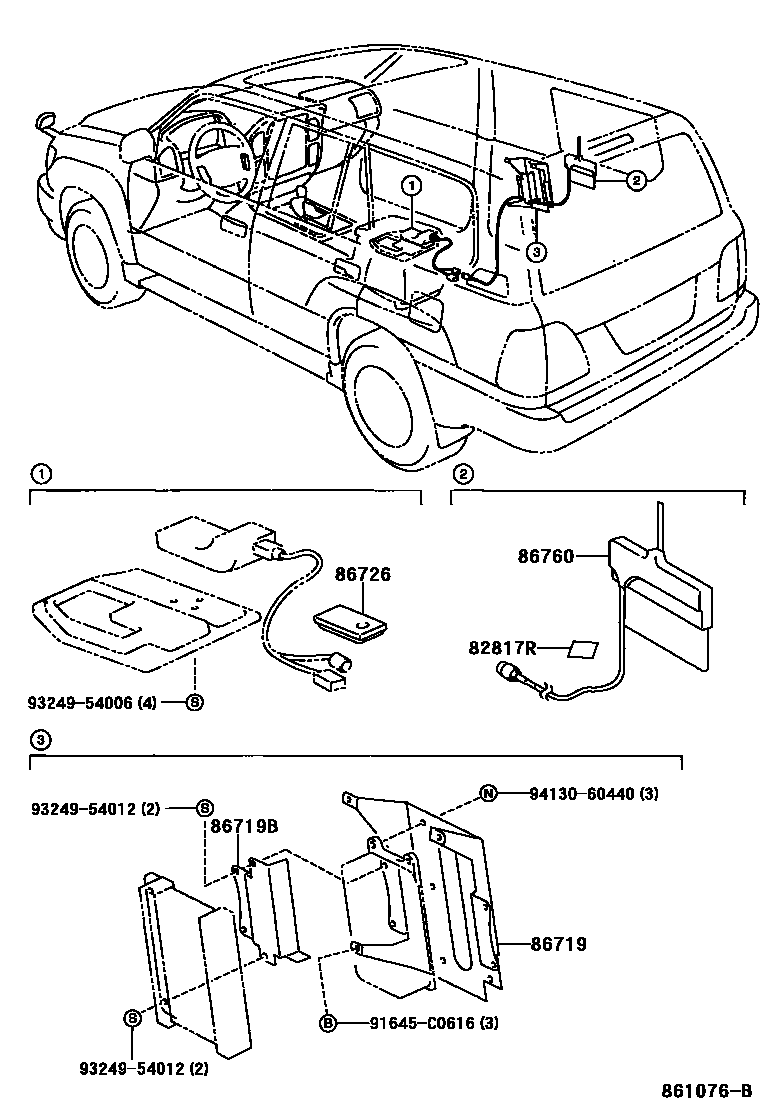

TELEPHONE & MAYDAY

82817RPROTECTOR, WIRING HARNESS, NO.16

main82817-12400×10iHDJ100..(4FC,5F)..VX200208

86719BRACKET, TELEPHONE

main86719-60020iHDJ100,UZJ100..VX199907-200208

86719BBRACKET, TELEPHONE NO.2

main86719-60040iHDJ100..(4FC,5F)..VX200208

86726COVER, MOBILEPHONE

main86726-30190iHDJ100,UZJ100..VX199907-200208

86760ANTENNA ASSY, TELEPHONE

main86760-48010iHDJ100,UZJ100..VX200110-200208

main86760-60030iHDJ100,UZJ100..VX199907-200110

91645C0616

main91645-C0616

9324954006

main93249-54006

9324954012

main93249-54012

9413060440

main94130-60440

9 parts on this diagram · 1 diagram in section
