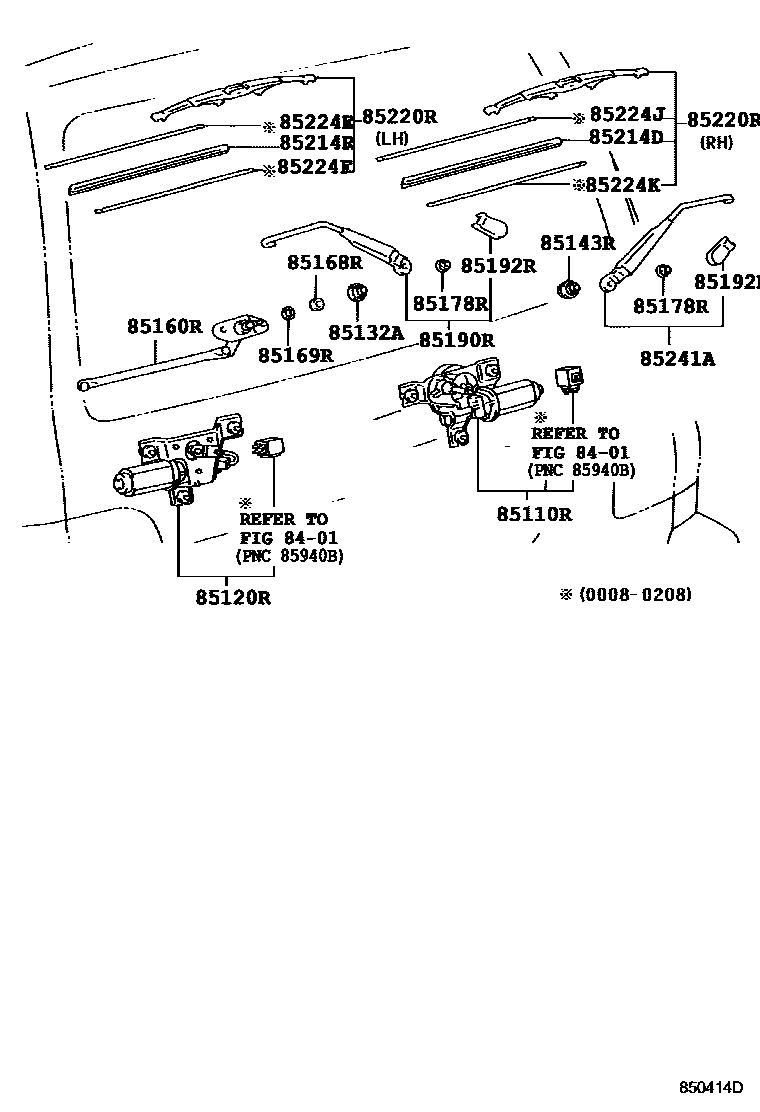

REAR WIPER
8401SWITCH & RELAY & COMPUTER
85110RMOTOR ASSY, REAR WIPER
85120RMOTOR AND BRACKET ASSY, REAR WIPER
85132ACOVER, REAR WIPER SHAFT
85143RGROMMET, REAR WIPER MOTOR
85160RLINK ASSY, REAR WIPER
85168RNUT, REAR WIPER LINK PIVOT, NO.1
85169RWASHER, REAR WIPER LINK PIVOT, NO.1
85178RNUT (FOR REAR WIPER ARM SETTING)
85190RARM ASSY, REAR WIPER
85192RCOVER, REAR WIPER ARM
85214DRUBBER, WIPER BLADE, RH
85214RRUBBER, REAR WIPER
85220RBLADE ASSY, REAR WIPER
LH
RH
85224EPLATE, REAR WIPER RUBBER BACKING, NO.1
85224FPLATE, REAR WIPER RUBBER BACKING, NO.2
85224JPLATE, WIPER BLADE RUBBER BACKING, NO.3
85224KPLATE, WIPER BLADE RUBBER BACKING, NO.4
85241AARM, REAR WIPER
19 parts on this diagram · 2 diagrams in section
