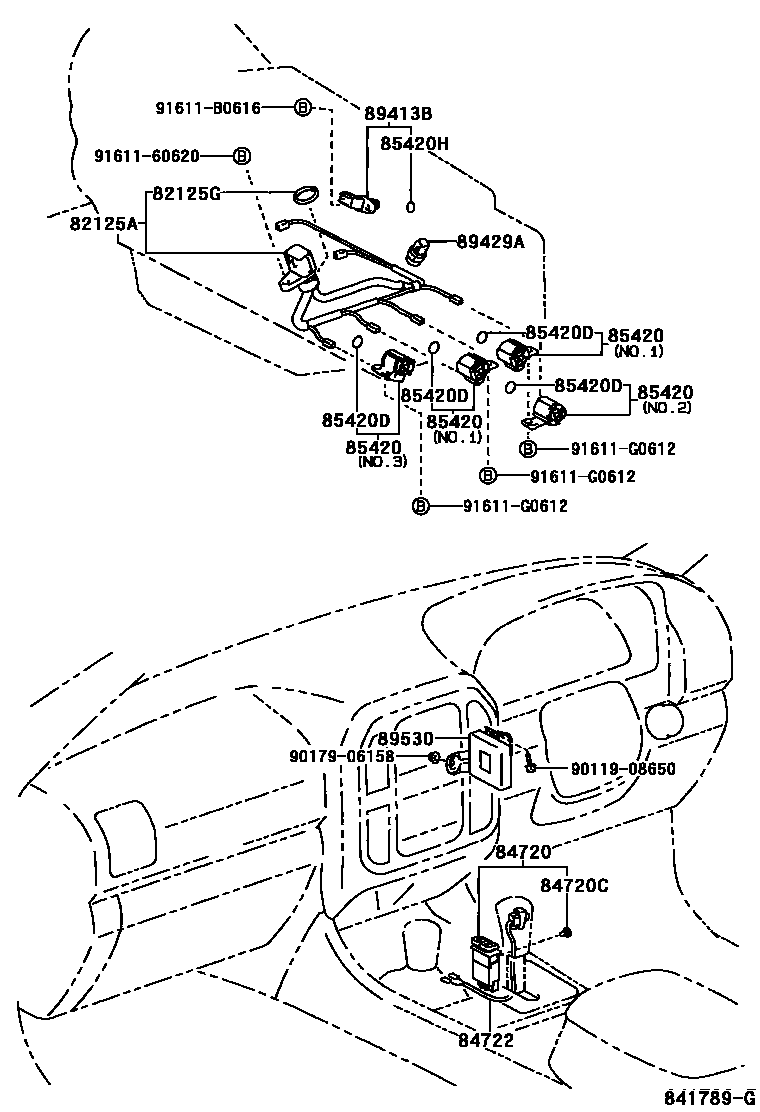

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
82125AWIRE, TRANSMISSION
TEMPERATURE SENSOR HOUSING = GRAY
TEMPERATURE SENSOR HOUSING = GRAY; TEMPERATURE SENSOR HOUSING = GRAY RUSSIA SPEC
TEMPERATURE SENSOR HOUSING = BLACK
TEMPERATURE SENSOR HOUSING = BLACK; TEMPERATURE SENSOR HOUSING = BLACK SOUTH AMERICA SPEC
82125GRING, O(FOR TRANSMISSION WIRE)
RUSSIA SPEC OR SOUTH AMERICA
84720SWITCH ASSY, PATTERN SELECT
84720CBULB(FOR PATTERN SELECT SWITCH)
14V0.91W,W(GREEN CAP
84722SWITCH, TRANSMISSION CONTROL
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
WOOD KNOB
NO.1
NO.1
NO.2
85420SOLENOID ASSY, TRANSMISSION
NO.1,AISIN
NO.1,DENSO
NO.2,AISIN
NO.2,DENSO
NO.3
NO.1,DENSO
NO.2,DENSO
NO.1,DENSO
NO.1,AISIN
NO.2,DENSO
NO.2,AISIN
NO.3
NO.3,DENSO
NO.3,AISIN
NO.1; RUSSIA SPEC OR SOUTH AMERICA,NO.1
NO.2; RUSSIA SPEC OR SOUTH AMERICA,N0.2
NO.3; RUSSIA SPEC OR SOUTH AMERICA,NO.3
85420DRING, O (FOR TRANSMISSION SOLENOID)
RUSSIA SPEC OR SOUTH AMERICA
85420HRING, O(FOR SPEED SENSOR)
89413BSENSOR, TRANSMISSION REVOLUTION
89429ASENSOR, TEMPERATURE
89530COMPUTER ASSY, TRANSMISSION CONTROL
9011908650
main90119-08650
9017906158
main90179-06158
9161160620
main91611-60620
91611B0616
main91611-B0616
91611G0612
main91611-G0612
16 parts on this diagram · 5 diagrams in section
