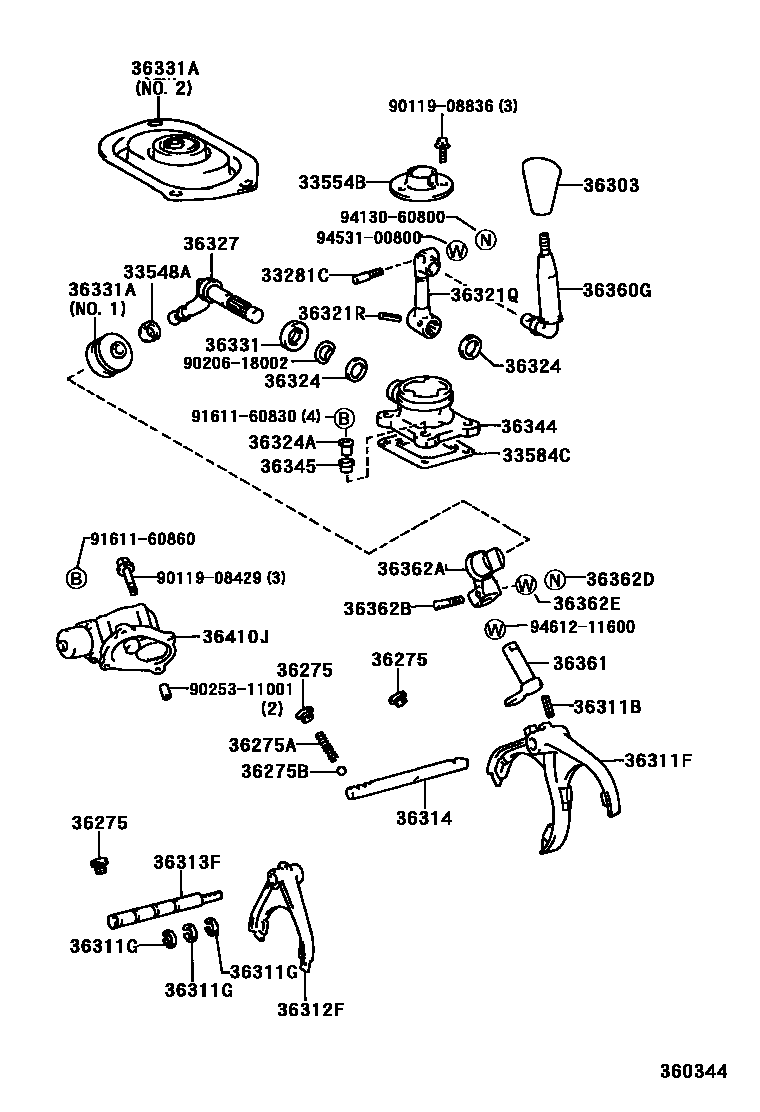

TRANSFER LEVER & SHIFT ROD

0001 1SEPARATE SEAT TYPE 0002 1BENCH SEAT TYPE 0003 1 0004 1 0005 1 0006 1

33281CPIN, LEVER LOCK

main33281-16020iHDJ100..5F199801-200208

33548ABUSH, TRANSFER SHIFT LEVER

main33548-60030iHDJ100..5F199801-200208

33554BCAP, TRANSFER SHIFT LEVER

main33554-60081iHDJ100..5F199801-200208

33584CGASKET,TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-60010iHDJ100,UZJ100200505

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12008×3iHDJ100,UZJ100199801-200208

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-18093iHDJ100,UZJ100199801-200208

L=23.8

36275BBALL, SHIFT DETENT

main90360-10003iHDJ100..LHD..4FC; HDJ100..RHD..4FC200208-200307

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-60181-C0iHDJ100..STD200208-200505

BLACK,TRIM1#

main36303-60240-C0iHDJ100,UZJ100200505-200708

BLACK,TRIM0#,1#

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05016iHDJ100,UZJ100200505

L=25.5

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-60120iHDJ100,UZJ100199801-200208

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13004×3iHDJ100,UZJ100199801-200208

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-60050iHDJ100,UZJ100200505

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-60100iHDJ100,UZJ100200505

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-60050iHDJ100,UZJ100..5F,5FC200208-200505

36321QLEVER, TRANSFER SHIFT

main36321-60410iHDJ100..LHD..5F199801-200208

BENCH SEAT TYPE

main36321-60420iHDJ100..5F199801-200208

SEPARATE SEAT TYPE

36321RPIN, SLOTTED SPRING (FOR TRANSFER SHIFT LEVER)

main90254-05002iHDJ100..5F199801-200208

main90254-05011iHDJ100,UZJ100..RHD..ATM200208-200505

36324BUSH, TRANSFER SHIFT LEVER

main36324-60060×2iHDJ100..5F200208-200505

36324ABUSH, TRANSFER SHIFT LEVER

main36324-60070×4iHDJ100,UZJ100200208-200505

36327SHAFT, TRANSFER SHIFT LEVER

main36327-60050iHDJ100..LHD..5F200208-200505

BENCH SEAT TYPE

main36327-60130iHDJ100..5F199801-200208

SEPARATE SEAT TYPE

main36327-60150iHDJ100,UZJ100..RHD..ATM200208-200505

36331BOOT, TRANSFER SHIFT LEVER

main36331-60010iHDJ100,UZJ100..RHD..5FC200505

NO.1

main36331-60040iHDJ100,UZJ100..RHD..5FC; HDJ100..5F;HDJ100,UZJ100..LHD..5FC200505

NO.2

36331ABOOT, TRANSFER SHIFT LEVER, NO.2

main36331-60070iHDJ100,UZJ100..LHD..4FC199801-200208

main36331-60080iHDJ100..5F199801-200208

SEPARATE SEAT TYPE,NO.1

main36331-60090iHDJ100..5F200208-200505

SEPARATE SEAT TYPE,NO.2

main36331-60110iHDJ100..LHD..5F199801-200208

BENCH SEAT TYPE

36344RETAINER, TRANSFER CONTROL SHIFT LEVER

main36344-60030iHDJ100..5F200505

main36344-60080iHDJ100,UZJ100..5FC200505

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-60020×4iHDJ100,UZJ100199801-200208

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-60590iHDJ100..RHD..5F200505

main36360-60610iHDJ100..LHD..5F199801-200208

BENCH SEAT TYPE

main36360-60620iHDJ100..LHD..5F200208-200505

SEPARATE SEAT TYPE

main36360-60640iHDJ100,UZJ100..LHD..4FC199801-200001

main36360-60650iHDJ100,UZJ100..RHD..5FC200505

main36360-60730iUZJ100..LHD200208-200505

36361LEVER, TRANSFER SHIFT, INNER

main36361-60030iHDJ100,UZJ100200505

36362ALEVER, TRANSFER SHIFT, OUTER

main36362-60030iHDJ100,UZJ100..5FC; HDJ100..LHD..5F200208-200505

BENCH SEAT TYPE

main36362-60060iHDJ100..5F200505

SEPARATE SEAT TYPE

36362BPIN, LEVER LOCK (FOR TRANSFER SHIFT LEVER OUTER)

main33281-16020iHDJ100,UZJ100200505

36362DNUT (FOR TRANSFER SHIFT OUTER LEVER)

main94130-60800×2iHDJ100,UZJ100..LHD..5FC; HDJ100,UZJ100..RHD..5FC; HDJ100..5F; HDJ100..LHD..5F200505

SEPARATE SEAT TYPE

36362EWASHER (FOR TRANSFER SHIFT OUTER LEVER)

main94531-00800iHDJ100,UZJ100..4FC199801-199807

36410JACTUATOR ASSY, TRANSFER SHIFT

main36410-60060iHDJ100,UZJ100199801-200103

main36410-60061iHDJ100,UZJ100200103-200208

9011908429

main90119-08429

9011908836

main90119-08836

9020618002

main90206-18002

9025311001

main90253-11001

9161160830

main91611-60830

9161160860

main91611-60860

9413060800

main94130-60800

9453100800

main94531-00800

9461211600

main94612-11600

39 parts on this diagram · 6 diagrams in section
