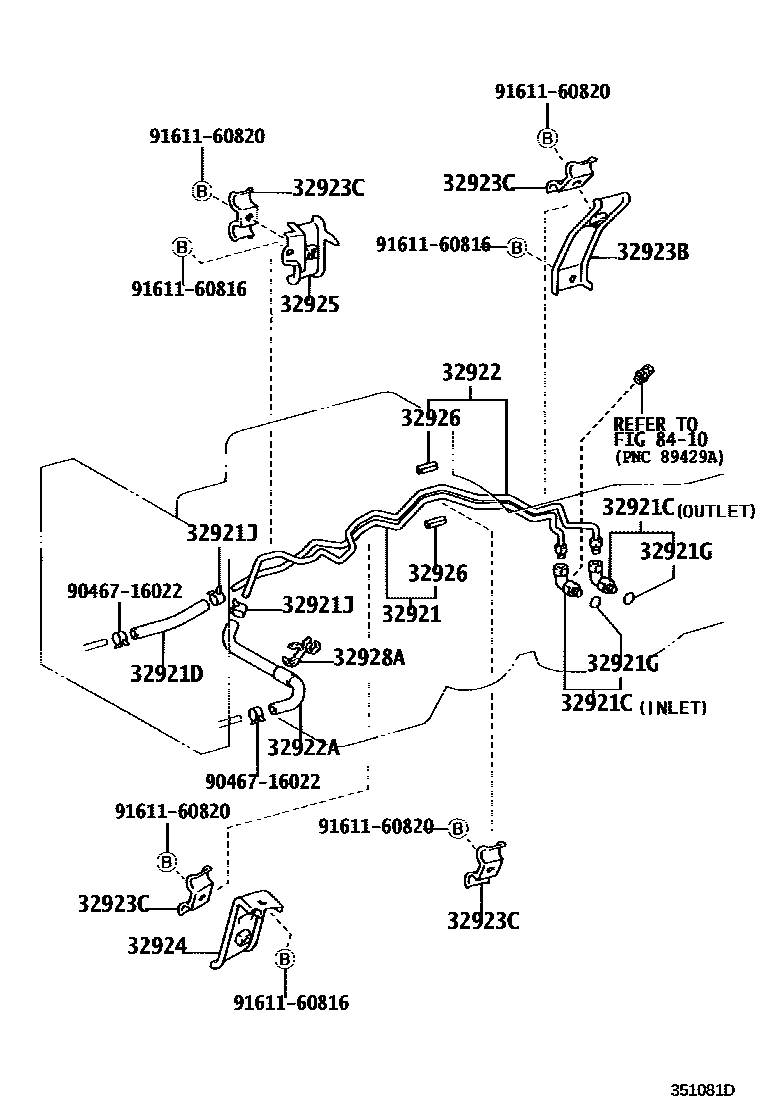

OIL COOLER & TUBE (ATM)

0001 1A442F 0002 1A343F 0003 1A442F,AIR COOLING OIL COOLER 0004 1A442F,AIR COOLING OIL COOLER 0005 1A343F,AIR COOLING OIL COOLER 0006 1A442F,RUSSIA,SOUTH AMERICA SP0007 1A442F,CHINA SPEC 0008 1A442F 0009 1A750F 0010 1A442F,AIR COOLING OIL COOLER 0011 1A750F,AIR COOLING OIL COOLER 0012 1A750F 0013 1A750F,AIR COOLING OIL COOLER

32921TUBE, OIL COOLER INLET, NO.1

main32921-60090iUZJ100199801-200208

main32921-60110iUZJ100..LHD199907-200010

SOUTH AMERICA SPEC

main32921-60111iUZJ100..LHD200010-200208

RUSSIA SPEC

main32921-60180iHDJ100..4FC200208-200307

main32921-60220iHDJ100..5FC200307-200505

main32921-60370iUZJ100200208-200209

main32921-60371iUZJ100200505

32921CUNION(FOR OIL COOLER TUBE)

main90407-14027iUZJ100199801-200208

INLET

main90407-14029iUZJ100199801-200208

OUTLET

main90407-16009×2iHDJ100..5FC200307-200505

main90407-16037×2iUZJ100200505

main90407-20004iHDJ100..4FC199801-200208

OUTLET

main90407-20006iHDJ100..4FC200208-200307

INLET

main90407-20007iUZJ100..LHD199907-200208

SOUTH AMERICA SPEC,INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-60190iUZJ100199801-200208

main32941-60290iUZJ100200208-200505

main90445-17096iHDJ100..4FC199801-200208

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iUZJ100;HDJ100..4FC200208-200505

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16022×2iHDJ100,UZJ100..4FC199801-200208

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-60170iUZJ100199801-200208

main32922-60180iUZJ100..LHD199907-200010

RUSSIA SPEC

main32922-60181iUZJ100..LHD200010-200208

CHINA SPEC

main32922-60200iHDJ100..4FC199801-200208

main32922-60240iHDJ100..5FC200307-200505

main32922-60390iHDJ100..4FC200208-200307

main32922-60400iUZJ100200208-200209

main32922-60401iUZJ100200505

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-60180iHDJ100..4FC199801-200208

main32941-60290iHDJ100..5FC200505

main32942-60290iUZJ100200208-200505

AIR COOLING OIL COOLER

main32942-60310iHDJ100..4FC199905-200208

AIR COOLING OIL COOLER

main32942-60320iHDJ100..4FC199801-199905

AIR COOLING OIL COOLER

main32942-60330iUZJ100200208-200505

main32942-60430iHDJ100..5FC200505

AIR COOLING OIL COOLER

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-60120iUZJ100200208-200505

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-60050iHDJ100..4FC199801-200208

main32923-60090iUZJ100199801-200208

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main90462-12076×4iHDJ100..4FC200208-200307

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-60070iUZJ100199801-200208

main32924-60110iHDJ100..4FC199801-200208

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-60120iUZJ100199801-200208

main32925-60130iHDJ100..4FC199801-200208

main32925-60190iUZJ100200505

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30060iUZJ100199801-200208

L=35,ID=10

main32926-60010×5iHDJ100..4FC; UZJ100199801-200208

L=45,ID=12

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-60070iUZJ100199801-200208

main32928-60120iHDJ100..ATM200208-200505

main32928-60130iUZJ100200208-200505

main32928-60150iUZJ100200706

main32928-60160iHDJ100..5FC200706

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32928-60080iHDJ100..4FC199801-200208

main90949-01B51iUZJ100199801-200208

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9046716022

main90467-16022

9161160816

main91611-60816

9161160820

main91611-60820

19 parts on this diagram · 13 diagrams in section
