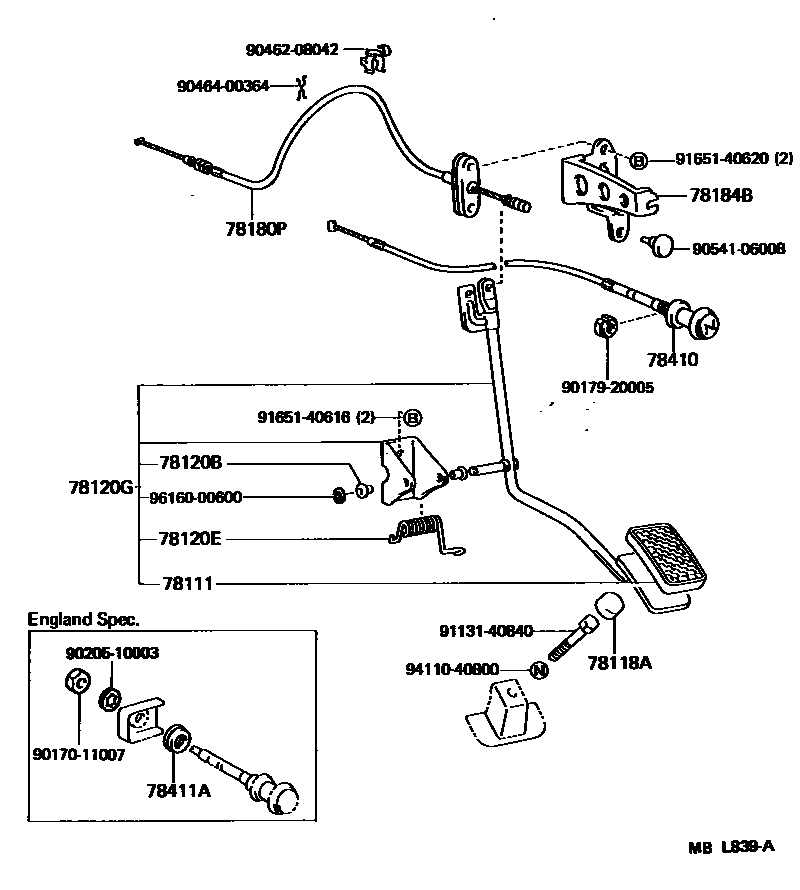

ACCELERATOR LINK

0001 1 0002 1 0003 1

78111PEDAL, ACCELERATOR

main78111-95110iFJ62,HJ6#198708-199001

78118ASTOPPER, ACCELERATOR PEDAL

main78118-90K00iFJ62,HJ6#198708-199001

78120BBUSH (FOR ACCELERATOR LINK ROD)

main90386-08155×2iFJ62,HJ61;HJ60..RHD198708-199001

main90386-10138×2iHJ60..LHD198708-199001

78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)

main90506-12262iHJ60..LHD198708-199001

main90508-26046iHJ60..RHD198708-199001

main90508-29017iFJ62,HJ61198708-199001

78120GROD ASSY, ACCELERATOR PEDAL

main78120-90A05iHJ60..RHD198708-199001

main78120-90A06iHJ60..LHD198708-199001

main78120-90A08iHJ61198708-199001

main78120-90A09iFJ62198808-199001

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-90A13iHJ60..LHD..MTM198708-199001

main78180-90A14iHJ60..ATM198708-199001

main78180-90A22iHJ61198708-199001

main78180-90A24iFJ62198808-199001

main78180-90A29iHJ60..RHD198708-198808

main78180-90A34iHJ60..RHD198808-199001

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-90A01iHJ60..RHD198708-199001

main78184-90A02iHJ61198708-199001

main78184-90A03iFJ62198808-199001

78410CABLE ASSY, THROTTLE CONTROL

main78410-90A00iHJ60..RHD198708-199001

main78410-90A02iHJ6#..LHD198708-199001

main78410-90A06iHJ61..VX198708-199001

W(THROTTLE BUTTON)

main78410-90A07iHJ60..RHD198708-199001

W(THROTTLE BUTTON)

main78410-90A11iFJ62198808-199001

78411AKNOB, THROTTLE CONTROL CABLE

main78402-90K00iHJ60..RHD198708-199001

9017011007

main90170-11007

9017920005

main90179-20005

9020510003

main90205-10003

9046208042

main90462-08042

9046400364

main90464-00364

9054106008

main90541-06008

9113140840

main91131-40840

9165140616

main91651-40616

9165140620

main91651-40620

9411040800

main94110-40800

9616000600

main96160-00600

20 parts on this diagram · 3 diagrams in section
