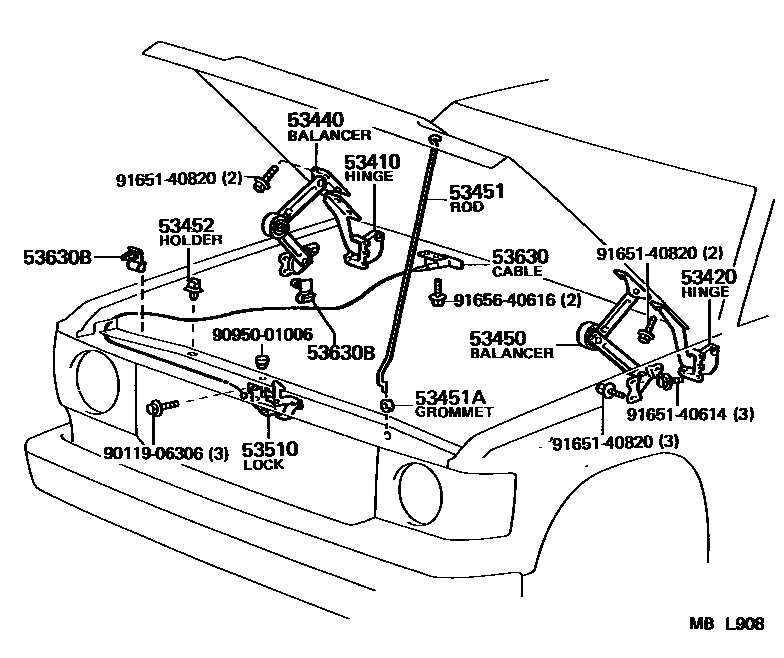

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-90A01iHJ6#;FJ62..SOB198708-199001

53420HINGE ASSY, HOOD, LH

main53420-90A01iHJ6#;FJ62..SOB198708-199001

53440BALANCER ASSY, HOOD, RH

main53440-90A00iFJ62..SOB;HJ6#..GX,VX198708-199001

53450BALANCER ASSY, HOOD, LH

main53450-90A00iFJ62..SOB;HJ6#..GX,VX198708-199001

53451ROD, HOOD SUPPORT

main53451-90A00iFJ62,HJ6#198708-199001

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15002iFJ62,HJ6#198708-199001

53452HOLDER, HOOD STAY

main53452-90351iFJ62,HJ6#198708-199001

53510LOCK ASSY, HOOD

main53510-90A00iHJ60..RHD198708-199001

main53510-90A01iFJ62..SOB;HJ6#..LHD198708-199001

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-90A01iFJ62..SOB;HJ6#..LHD198708-199001

main53630-90A02iHJ60..RHD198708-199001

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main69749-12010×2iHJ6#;FJ62..SOB198708-199001

9011906306

main90119-06306

9095001006

main90950-01006

9165140614

main91651-40614

9165140820

main91651-40820

9165640616

main91656-40616

15 parts on this diagram · 2 diagrams in section
