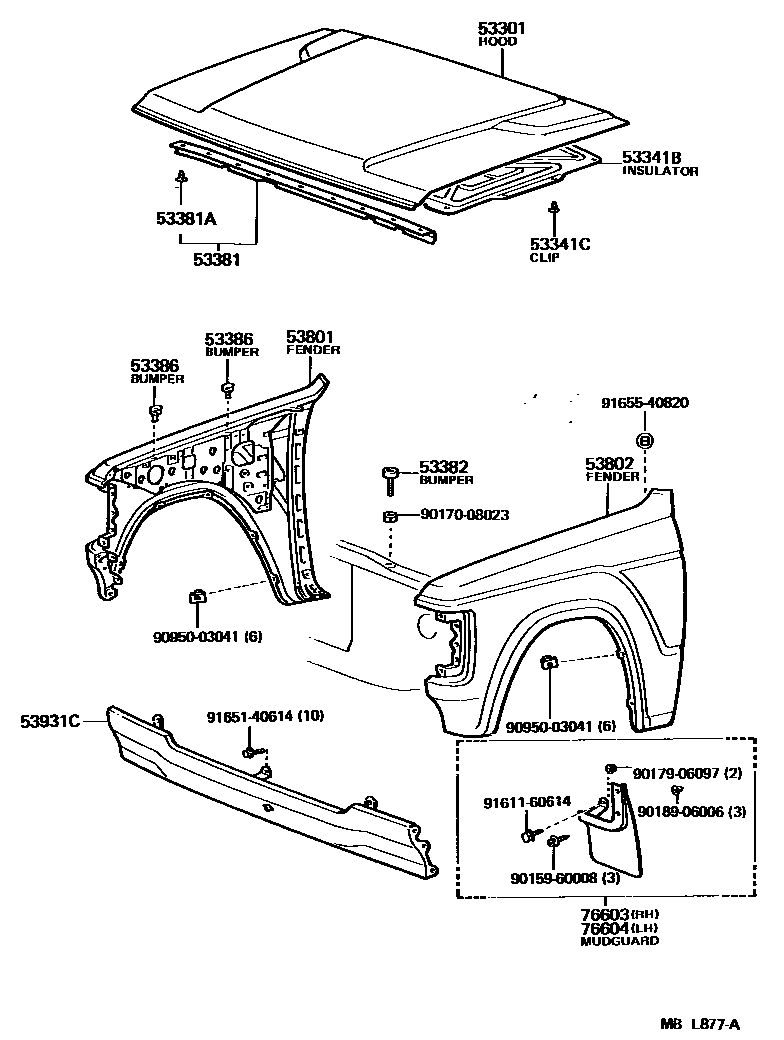

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-90A01iFJ62,HJ6#198708-199001

53341BINSULATOR, HOOD

main53341-90A00iHJ60198708-199001

main53341-90A01iFJ62,HJ61198708-199001

53341CCLIP(FOR HOOD INSULATOR)

main90467-09014×17iFJ62,HJ6#198708-199001

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-90A00iFJ62,HJ6#198708-199001

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×9iFJ62,HJ6#198708-199001

53382BUMPER, HOOD, FRONT

main53382-90K00×2iHJ6#198708-198806

main53382-90K01×2iFJ62,HJ6#198806-199001

53386BUMPER, HOOD, REAR

main53382-30060×4iFJ62,HJ6#198708-199001

53801FENDER SUB-ASSY, FRONT RH

main53801-90A85iHJ6#..LHD..MTM..LUB..GX198708-199001

W(SIDE STEP & ANTENNA)

main53801-90G01iHJ60..RHD; HJ61..VX198708-199001

W(FORWARD MUDGUARD); W(FORWARD MUDGUARD) OR W(FORWARD & ANTENNA)

main53801-90G14iHJ6#..LHD..(GX,VX)198708-199001

W(OVER FENDER) OR W(OVER FENDER & ANTTENA)

main53801-90G29iHJ6#198708-199001

main53801-90G40iFJ62198808-199001

main53801-90G42iFJ62198808-199001

W(SIDE STEP)

main53801-90G44iFJ62198808-199001

W(OVER FENDER)

53802FENDER SUB-ASSY, FRONT LH

main53802-90A78iHJ61..VX;HJ60..RHD198708-199001

W(FORWARD MUDGUARD)

main53802-90A90iHJ6#..LHD..(GX,VX)198708-199001

W(OVER FENDER)

main53802-90A94iHJ6#198708-199001

main53802-90G05iFJ62198808-199001

main53802-90G07iFJ62198808-199001

W(SIDE STEP)

main53802-90G09iFJ62198808-199001

W(OVER FENDER)

53931CPANEL, FRONT END

main53931-90A06iFJ62,HJ6#198708-199001

main53931-90A07iHJ60..RHD; HJ61..VX198708-199001

*FRG SPEC; UNITED KINGDOM SPEC

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-69015iHJ60..LHD..MTM..GX; HJ60..STD; HJ61;HJ60..ATM;HJ60..RHD198708-199001

main76603-90A01iFJ62; HJ6#..LHD..(GX,VX)198708-199001

W(OVER FENDER)

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-69015iHJ60..LHD..MTM..GX; HJ60..STD; HJ61;HJ60..ATM;HJ60..RHD198708-199001

main76604-90A01iFJ62; HJ6#..LHD..(GX,VX)198708-199001

W(OVER FENDER)

9015960008

main90159-60008

9017008023

main90170-08023

9017906097

main90179-06097

9018906006

main90189-06006

9095003041

main90950-03041

9161160614

main91611-60614

9165140614

main91651-40614

9165540820

main91655-40820

20 parts on this diagram · 2 diagrams in section
