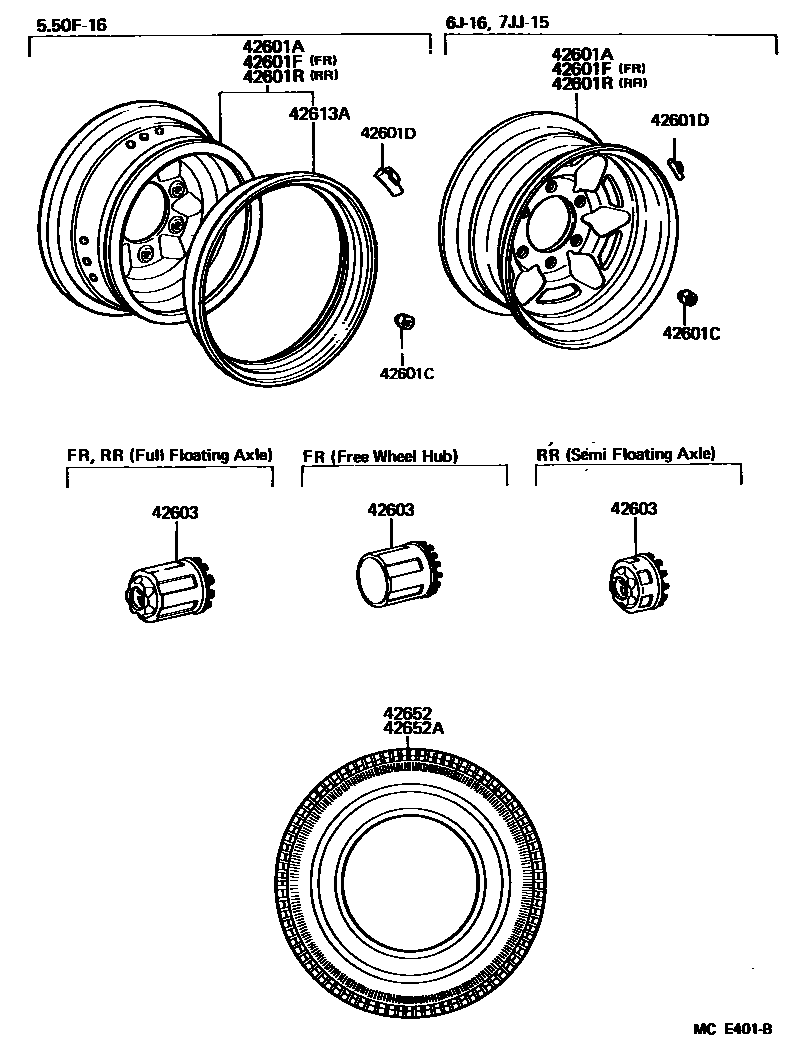

DISC WHEEL & WHEEL CAP

42601AWHEEL, DISC (FOR SPARE)

main42601-60170iFJ62,HJ6#..LHD..GX; HJ60..RHD; HJ61..VX198708-199001

16X6J

main42601-60180-05iFJ62,HJ6#..LHD..(GX,STD); HJ60..RHD; HJ61..VX198708-199001

6J-16,WHITE,WHITE,045 ,153 ,155 ,3F4 ,4E9 ,4G8 ,8B2

main42601-60200-05iFJ62; HJ6#..LHD..(GX,VX)198708-199001

7JJ-15,WHITE,WHITE,045 ,153 ,155 ,3F4 ,4E9 ,4G8 ,8B2

main42601-60210iFJ62; HJ6#..LHD..(GX,VX)198708-199001

15X7JJ,#

main42610-60022iFJ62,HJ6#198708-199001

5.50F-16,#

42601CNUT, HUB (FOR AXLE)

main90942-01047×24iFJ62,HJ6#198708-199001

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03045iFJ62,HJ6#198708-199001

20G,20G,W(5.50F-15 WHEEL)

main90942-03047iFJ62,HJ6#198708-199001

40G,40G,W(5.50F-15 WHEEL)

main90942-03049iFJ62,HJ6#198708-199001

60G,60G,W(5.50F-15 WHEEL)

main90942-03050iFJ62,HJ6#198708-199001

30G,30G,W(5.50F-15 WHEEL)

main90942-03051iFJ62,HJ6#198708-199001

80G,80G,W(5.50F-15 WHEEL)

main90942-03052iFJ62,HJ6#198708-199001

50G,50G,W(5.50F-15 WHEEL)

main90942-03053iFJ62,HJ6#198708-199001

100G,100G,W(5.50F-15 WHEEL)

main90942-03064iFJ62,HJ6#198708-199001

70G,70G,W(5.50F-15 WHEEL)

main90942-03079iFJ62; HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

20G,T=10,20G,W(6J-16,7JJ-15 WHEEL)

main90942-03080iFJ62; HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

30G,T=9.3,30G,W(6J-16,7JJ-15 WHEEL)

main90942-03081iFJ62; HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

40G,T=9.3,40G,W(6J-16,7JJ-15 WHEEL)

main90942-03082iFJ62; HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

50G,T=9.3,50G,W(6J-16,7JJ-15 WHEEL)

main90942-03083iFJ62; HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

60G,T=9.3,60G,W(6J-16,7JJ-15 WHEEL)

main90942-03084iFJ62; HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

70G,T=9.3,70G,W(6J-16,7JJ-15 WHEEL)

main90942-03085iFJ62; HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

80G,T=9.3,80G,W(6J-16,7JJ-15 WHEEL)

main90942-03086iFJ62; HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

100G,100G,6J-16,7JJ-15 WHEEL)

main90942-03106iFJ62,HJ6#198708-199001

10G,10G,W(5.50F-15 WHEEL)

main90942-03107iFJ62; HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

10G,T=8,10G,W(6J-16,7JJ-15 WHEEL)

42601FWHEEL, DISC (FOR FRONT)

main42601-60170×2iFJ62,HJ6#..LHD..GX; HJ60..RHD; HJ61..VX198708-199001

16X6J

main42601-60180-05×2iFJ62,HJ6#..LHD..(GX,STD); HJ60..RHD; HJ61..VX198708-199001

6J-16,WHITE,WHITE,045 ,153 ,155 ,3F4 ,4E9 ,4G8 ,8B2

main42601-60200-05×2iFJ62; HJ6#..LHD..(GX,VX)198708-199001

7JJ-15,WHITE,WHITE,045 ,153 ,155 ,3F4 ,4E9 ,4G8 ,8B2

main42601-60210×2iFJ62; HJ6#..LHD..(GX,VX)198708-199001

15X7JJ,#

main42610-60022×2iFJ62,HJ6#198708-199001

5.50F-16,#

42601RWHEEL, DISC (FOR REAR)

main42601-60170×2iFJ62,HJ6#..LHD..GX; HJ60..RHD; HJ61..VX198708-199001

16X6J

main42601-60180-05×2iFJ62,HJ6#..LHD..(GX,STD); HJ60..RHD; HJ61..VX198708-199001

6J-16,WHITE,WHITE,045 ,153 ,155 ,3F4 ,4E9 ,4G8 ,8B2

main42601-60200-05×2iFJ62; HJ6#..LHD..(GX,VX)198708-199001

7JJ-15,WHITE,WHITE,045 ,153 ,155 ,3F4 ,4E9 ,4G8 ,8B2

main42601-60210×2iFJ62; HJ6#..LHD..(GX,VX)198708-199001

15X7JJ,#

main42610-60022×2iFJ62,HJ6#198708-199001

5.50F-16,#

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-35080×2iFJ62; HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

*STE,FR,W/*FWH

main42603-60012×2iFJ62; HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

RR,*FFA; RR,*FFA,FR

main42603-60052×2iFJ62; HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

RR,*SFA; RR,*SFA,RR

42613ARING, DISC WHEEL SIDE

main42613-36020×5iFJ62,HJ6#198708-199001

42652TIRE

main42605-60562×4iFJ62,HJ6#198708-199001

205R16,SNOW,*D/L

main42605-60612×4iFJ62,HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

205R16,*D/L; 205R16,*D/L,W(6J-16 WHEEL)

main42605-60732×4iFJ62,HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

205R16,*B/S; 205R16,*B/S,W(6J-16 WHEEL)

main42605-60742×4iFJ62,HJ6#198708-199001

205R16,SNOW,*B/S

main42605-60830×4iFJ62; HJ6#..LHD..(GX,VX)198708-199001

10R15-6,*D/L

main42605-60840×4iFJ62; HJ6#..LHD..(GX,VX)198708-199001

10R15-6,*B/S

42652ATIRE (FOR SPARE)

main42605-60562iFJ62,HJ6#198708-199001

205R16,SNOW,*D/L

main42605-60612iFJ62,HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

205R16,*D/L; 205R16,*D/L,W(6J-16 WHEEL)

main42605-60732iFJ62,HJ6#..LHD..GX; HJ60..RHD; HJ60..STD; HJ61..VX198708-199001

205R16,*B/S; 205R16,*B/S,W(6J-16 WHEEL)

main42605-60742iFJ62,HJ6#198708-199001

205R16,SNOW,*B/S

main42605-60830iFJ62; HJ6#..LHD..(GX,VX)198708-199001

10R15-6,*D/L

main42605-60840iFJ62; HJ6#..LHD..(GX,VX)198708-199001

10R15-6,*B/S

9 parts on this diagram · 1 diagram in section
