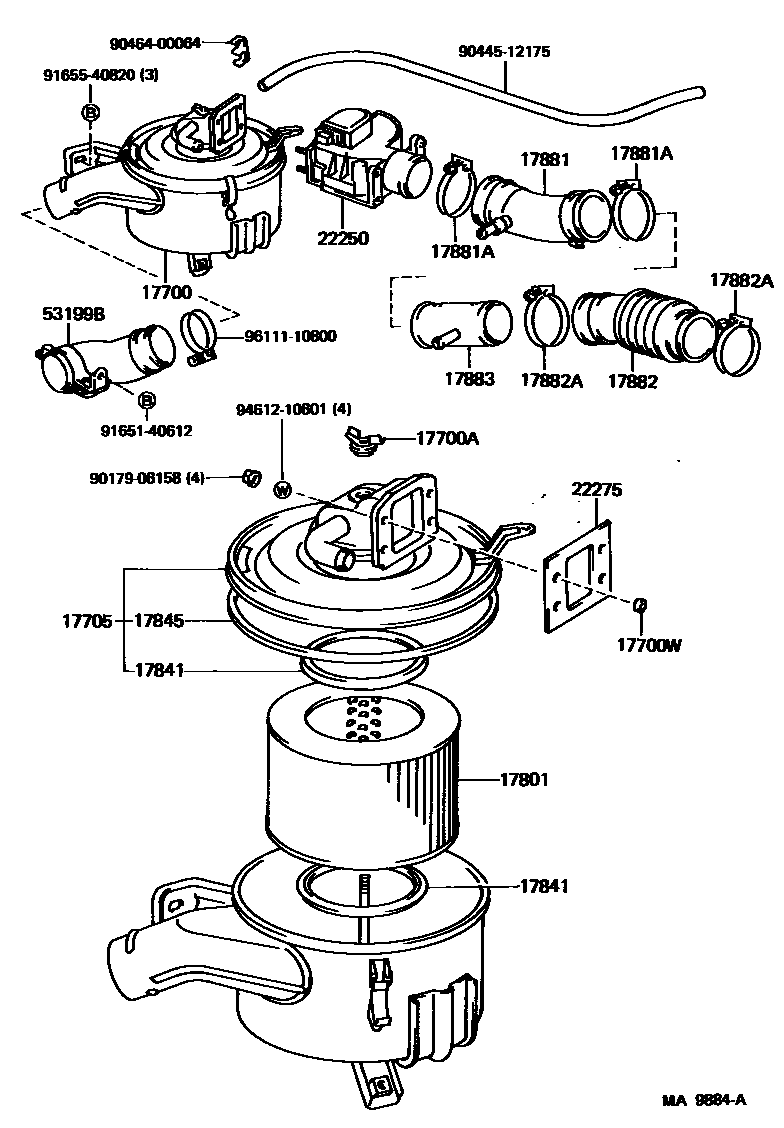

AIR CLEANER
17700CLEANER ASSY, AIR
17700ANUT, WING(FOR AIR CLEANER)
17700WSPACER(FOR AIR CLEANER)
17705CAP SUB-ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17841GASKET, FILTER ELEMENT
17845GASKET, AIR CLEANER CAP
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
VENTURI SIDE
AIR CLEANER SIDE
PIPE SIDE
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
TURBO SIDE
PIPE SIDE
TURBO SIDE
PIPE SIDE
17883HOSE, AIR CLEANER, NO.3
22250METER ASSY, INTAKE AIR FLOW
22275GASKET, AIR FLOW METER
53199BDUCT SUB-ASSY, COOL AIR INTAKE
9017906158
main90179-06158
9044512175
main90445-12175
9046400064
main90464-00064
9165140612
main91651-40612
9165540820
main91655-40820
9461210601
main94612-10601
9611110800
main96111-10800
22 parts on this diagram · 4 diagrams in section
