DOOR MOTOR & DOOR SOLENOID

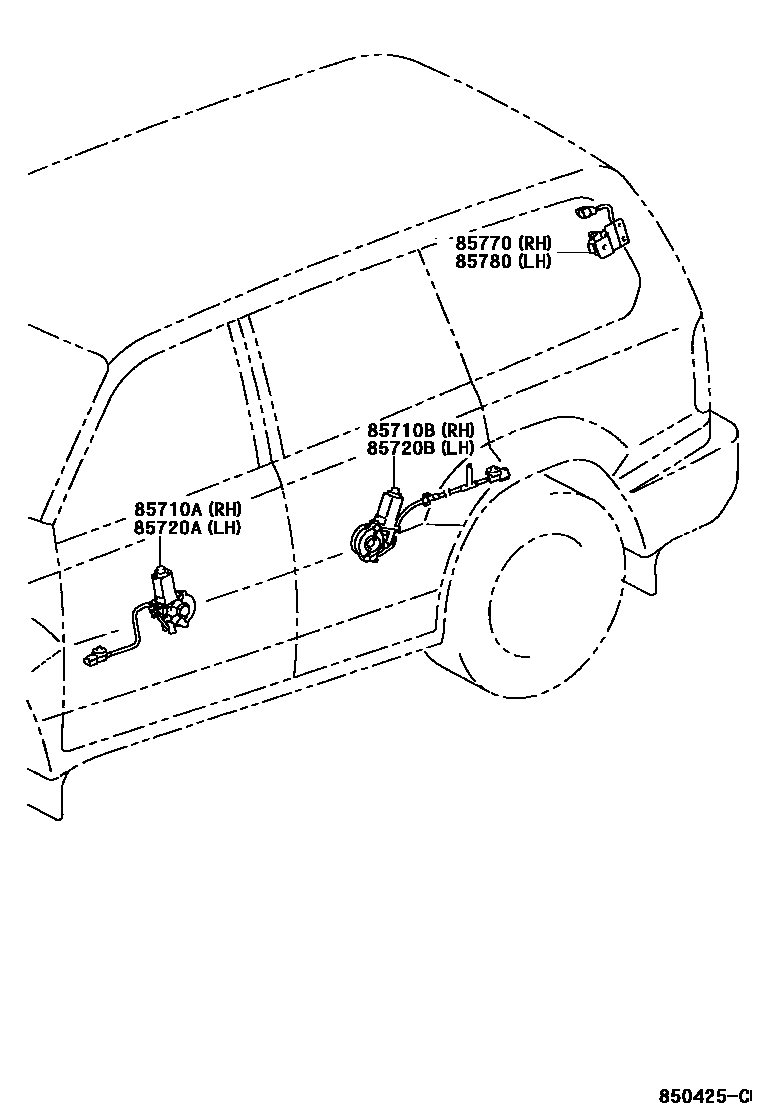

Parts diagram

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-60100i199801-200008

main85710-60140i200008-200505

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85720-60110i199801-200008

main85720-60120i200008-200505

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-60090i199801-199807

main85720-60130i199807-200505

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85710-60110i199801-200008

main85710-60120i200008-200505

85770MOTOR ASSY, REAR VENT WINDOW, RH

main85770-60020i199801-200505

85780MOTOR ASSY, REAR VENT WINDOW, LH

main85770-60020i199801-200505

6 parts on this diagram · 1 diagram in section
