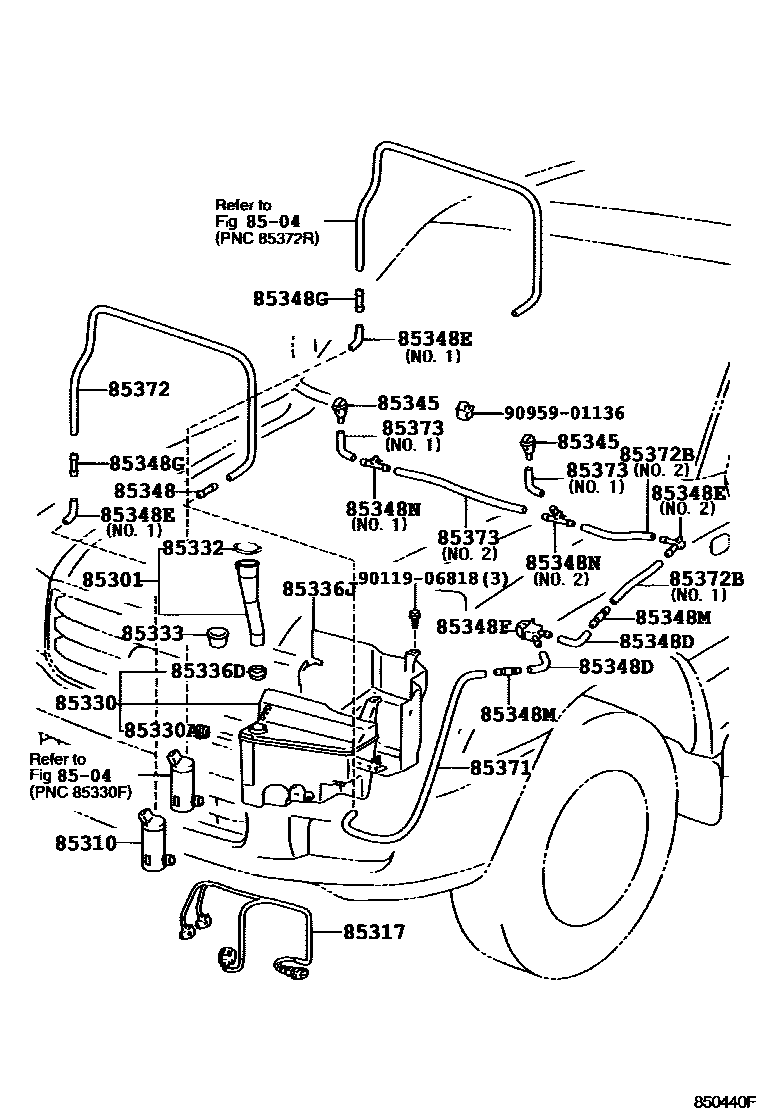

WINDSHIELD WASHER
8504REAR WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85317WIRING ASSY, WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85336JPROTECTOR, WASHER JAR
85345NOZZLE, WINDSHIELD WASHER
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
NO.1
NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
NO.1
NO.2
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=1240)
L=1300
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1100(*H,L=690)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=260),NO.1,NO.2
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=160),NO.1; L=1450(*H,L=560),NO.2
9011906818
main90119-06818
9095901136
main90959-01136
24 parts on this diagram · 1 diagram in section
