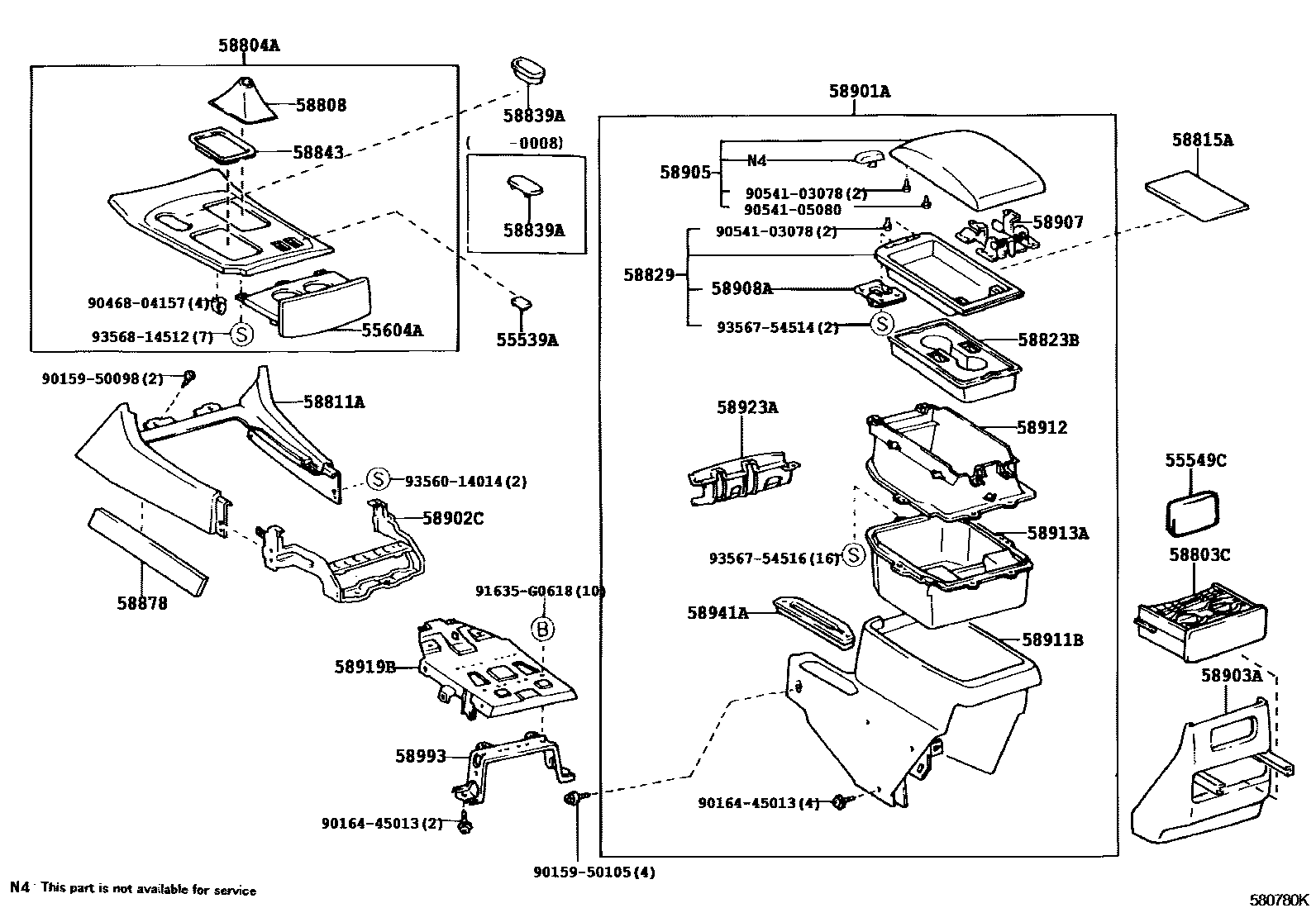

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-60020-C0i199801-199907

BLACK,TRIM1#,40,41

55549CCOVER, REAR COOLER SWITCH HOLE

main55549-60030-A0i199801-200208

IVORY,TRIM40,41

main55549-60030-B1i199801-200208

MD.GRAY,TRIM1#

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-60060i199907-200208

main55604-60061i200208-200510

main55604-60062i200511

main55604-60080i199801-199907

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-60010-A0i199801-199809

IVORY,TRIM4#

main58803-60010-B0i199801-199809

MD. GRAY,TRIM1#

main58803-60011-A0i199809-200201

IVORY,TRIM4#

main58803-60011-B0i199809-200201

MD.GRAY,TRIM1#

main58803-60012-A0i200201-200208

IVORY,TRIM40,41

main58803-60012-A1i200208-200708

IVORY,TRIM0#

main58803-60012-B0i200201-200208

MD.GRAY,TRIM1#

main58803-60012-B1i200208-200708

STONE,TRIM1#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-60130i199801-199907

main58804-60131i199907-200208

main58804-60132i200208-200505

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-60130i199801-200505

58811ABOX, CONSOLE, FRONT

main58811-60180-A0i199801-200208

IVORY,TRIM40,41

main58811-60180-B1i199801-200208

MD.GRAY,TRIM1#

main58811-60210-A0i200208-200708

IVORY,TRIM0#

main58811-60210-B0i200208-200708

STONE,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-60060i199801-200505

main58815-60080i200008-200505

W(ELECTRO MULTI VISION & NAVIGATION SYSTEM)

58823BBOX, CONSOLE COMPARTMENT

main58823-60020i199801-200008

main58823-60030i200008-200505

58829POCKET, CONSOLE BOX

main58806-60050i199801-200008

main58806-60051i200008-200505

58839ACOVER, CONSOLE BOX HOLE

main58839-60020i199801-200008

main58839-60030i200008-200209

main58839-60040i200209-200505

58843BEZEL, SHIFTING HOLE

main58843-60010i199801-200208

main58843-60050i200208-200505

58878PAD, CONSOLE BOX SILENCER, NO.4

main58878-60040i199801-200505

58901ABOX SUB-ASSY, CONSOLE, REAR

main58081-60040-A0i200208-200212

IVORY,TRIM0#

main58081-60040-B0i200208-200212

STONE,TRIM1#

main58081-60041-A0i200212-200708

IVORY,TRIM0#

main58081-60041-B0i200212-200708

STONE,TRIM1#

main58081-60060-A0i200208-200212

W(ELECTRO MULTI VISION & NAVIGATION SYSTEM),IVORY,TRIM0#

main58081-60060-B0i200208-200212

W(ELECTRO MULTI VISION & NAVIGATION SYSTEM),STONE,TRIM1#

main58081-60061-A0i200212-200708

W(ELECTRO MULTI VISION & NAVIGATION SYSTEM),IVORY,TRIM0#

main58081-60061-B0i200212-200708

W(ELECTRO MULTI VISION & NAVIGATION SYSTEM),STONE,TRIM1#

main58901-60230-A0i199801-200008

LEATHER PACKAGE,IVORY,TRIM4#

main58901-60230-B0i199801-200008

LEATHER PACKAGE,MD.GRAY,TRIM1#

main58901-60231-A0i200008-200208

LEATHER PACKAGE,IVORY,TRIM4#

main58901-60231-B0i200008-200208

LEATHER PACKAGE,MD.GRAY,TRIM1#

main58901-60350-A0i199801-200008

IVORY,TRIM4#

main58901-60350-B0i199801-200008

MD.GRAY,TRIM1#

main58901-60351-A0i200008-200208

IVORY,TRIM4#

main58901-60351-B0i200008-200208

MD.GRAY,TRIM1#

main58901-60480-A0i200008-200208

W(ELECTRO MULTI VISION W/CD AUTO CHANGER),IVORY,TRIM4#

main58901-60480-B0i200008-200208

W(ELECTRO MULTI VISION W/CD AUTO CHANGER),MD.GRAY,TRIM1#

main58901-60490-A0i200008-200208

LEATHER PACKAGE & W(ELECTRO MULTI VISION W/CD AUTO CHANGER),IVORY,TRIM4#

main58901-60490-B0i200008-200208

LEATHER PACKAGE & W(ELECTRO MULTI VISION W/CD AUTO CHANGER),MD.GRAY,TRIM1#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-60050i199801-200208

main58902-60070i200208-200505

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-60020-A0i199801-199809

IVORY,TRIM4#

main58903-60020-B0i199801-199809

MD.GRAY,TRIM1#

main58903-60021-A0i199809-200208

IVORY,TRIM4#

main58903-60021-A1i200208-200708

IVORY,TRIM0#

main58903-60021-B0i199809-200208

MD.GRAY,TRIM1#

main58903-60021-B1i200208-200708

STONE,TRIM1#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-60100-A0i199801-200008

IVORY,TRIM4#

main58905-60100-B0i199801-200008

MD.GRAY,TRIM1#

main58905-60110-A0i199801-200008

LEATHER PACKAGE,IVORY,TRIM4#

main58905-60110-B0i199801-200008

LEATHER PACKAGE,MD.GRAY,TRIM1#

main58905-60130-A0i200008-200208

IVORY,TRIM4#

main58905-60130-B0i200008-200208

MD.GRAY,TRIM1#

main58905-60140-A0i200008-200208

LEATHER PACKAGE,IVORY,TRIM4#

main58905-60140-A1i200208-200212

IVORY,TRIM0#

main58905-60140-B0i200008-200208

LEATHER PACKAGE,MD.GRAY,TRIM1#

main58905-60140-B1i200208-200212

STONE,TRIM1#

main58905-60141-A1i200212-200708

IVORY,TRIM0#

main58905-60141-B1i200212-200708

STONE,TRIM1#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-60050i199801-200008

main58907-60051i200008-200212

main58907-60052i200212-200505

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-32050i199801-200505

58911BPANEL, BOX, NO.1

main58911-60100-A0i199801-200208

IVORY,TRIM4#

main58911-60100-A1i200208-200708

IVORY,TRIM0#

main58911-60100-B0i199801-200208

MD.GRAY,TRIM1#

main58911-60100-B1i200208-200708

STONE,TRIM1#

58912BOX, REAR CONSOLE, NO.2

main58912-60050i199801-200505

main58912-60070i200008-200505

W(ELECTRO MULTI VISION & NAVIGATION SYSTEM)

58913APANEL, BOX, NO.3

main58913-60010i199801-200505

main58913-60020i200008-200505

W(ELECTRO MULTI VISION & NAVIGATION SYSTEM)

58919BPLATE, CONSOLE BOX

main58085-60010i200008-200208

W(ELECTRO MULTI VISION & NAVIGATION SYSTEM)

main58085-60020i200208-200505

W(ELECTRO MULTI VISION & NAVIGATION SYSTEM)

main58919-60020i199801-200208

main58919-60080i200208-200505

58923APANEL, CONSOLE REAR END

main58923-60030i199801-200505

58941ACOVER, PARKING BRAKE HOLE

main58941-60040i199801-200505

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-60030i199803-200505

main58993-60050i199801-199803

9015950098

main90159-50098

9015950105

main90159-50105

9016445013

main90164-45013

9046804157

main90468-04157

9054103078

main90541-03078

9054105080

main90541-05080

91635G0618

main91635-G0618

9356014014

main93560-14014

9356754514

main93567-54514

9356754516

main93567-54516

9356814512

main93568-14512

37 parts on this diagram · 4 diagrams in section
