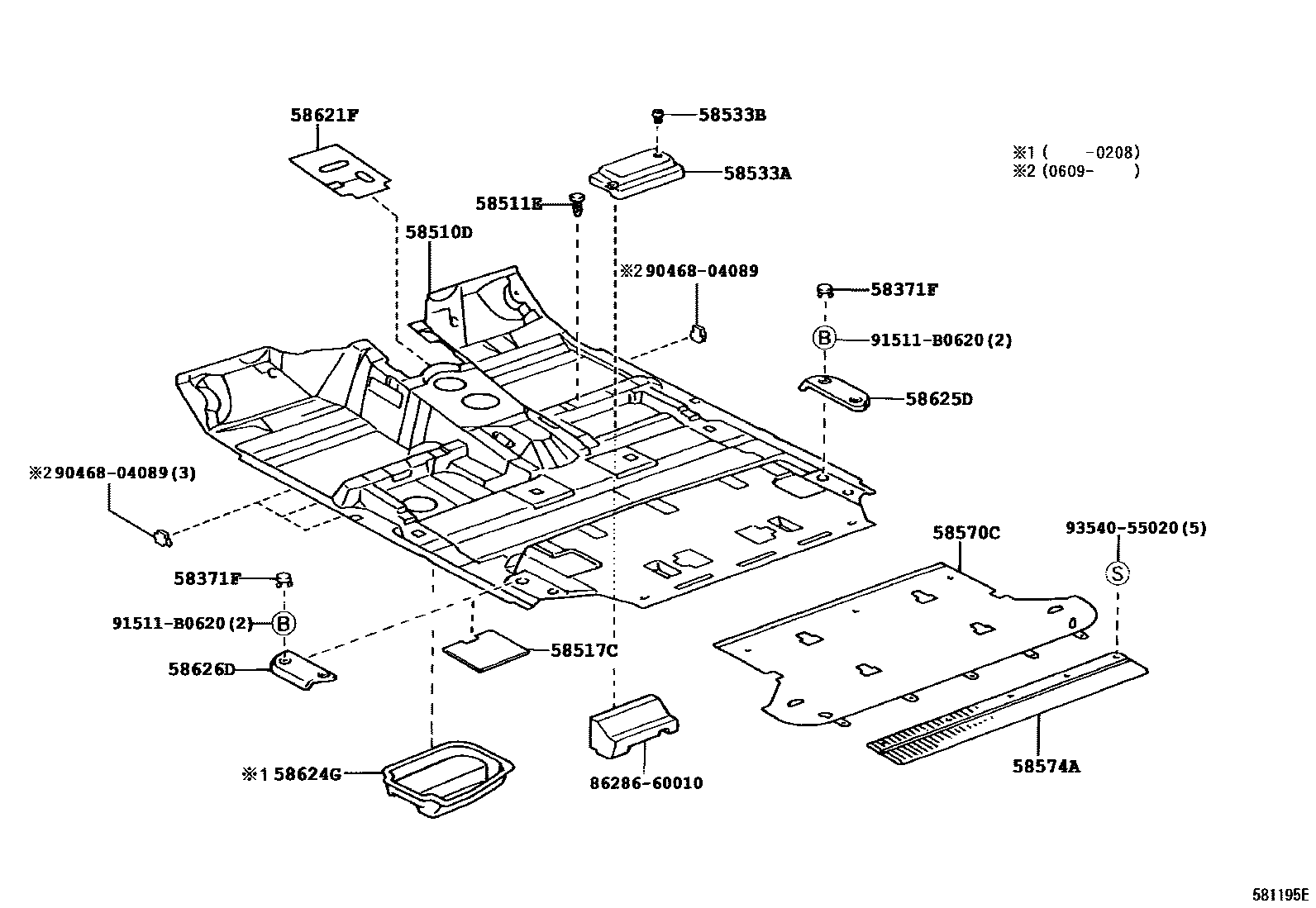

FLOOR MAT & SILENCER PAD

58371FCOVER, REAR FLOOR STEP, NO.1

main58371-60100-A0×4iUZJ100199801-200208

W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41

main58371-60100-A1×4iUZJ100200208-200505

IVORY,TRIM0#

main58371-60100-B0×4iUZJ100199801-200208

MD.GRAY,TRIM1#

main58371-60100-B1×4iUZJ100200208-200505

STONE,TRIM1#

58510DCARPET ASSY, FLOOR, FRONT

main58510-6B460-A0iUZJ100199801-199910

W(REAR HEATER),IVORY,TRIM4#

main58510-6B460-B0iUZJ100199801-199910

W(REAR HEATER),GRAY,TRIM1#

main58510-6B461-A0iUZJ100199910-200008

W(REAR HEATER),IVORY,TRIM4#

main58510-6B461-B0iUZJ100199910-200008

W(REAR HEATER),GRAY,TRIM1#

main58510-6B530-A0iUZJ100199801-199910

IVORY,TRIM4#

main58510-6B530-B0iUZJ100199801-199910

GRAY,TRIM1#

main58510-6B531-A0iUZJ100199910-200008

IVORY,TRIM4#

main58510-6B531-B0iUZJ100199910-200008

GRAY,TRIM1#

main58510-6B680-A0iUZJ100199801-199910

W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#

main58510-6B680-B0iUZJ100199801-199910

W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#

main58510-6B681-A0iUZJ100199910-200008

W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#

main58510-6B681-B0iUZJ100199910-200008

W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#

main58510-6B700-A0iUZJ100199801-199910

W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#

main58510-6B700-B0iUZJ100199801-199910

W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#

main58510-6B701-A0iUZJ100199910-200008

W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM4#

main58510-6B701-B0iUZJ100199910-200008

W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#

main58510-6C120-A0iUZJ100200008-200208

IVORY,TRIM4#

main58510-6C120-B0iUZJ100200008-200208

GRAY,TRIM1#

main58510-6C130-A0iUZJ100200008-200208

W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#

main58510-6C130-B0iUZJ100200008-200208

W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#

main58510-6C140-A0iUZJ100200008-200208

W(REAR HEATER),IVORY,TRIM40,41

main58510-6C140-B0iUZJ100200008-200208

W(REAR HEATER),GRAY,TRIM1#

main58510-6C150-A0iUZJ100200008-200208

W(TRANSVERSE THIRD SEAT & REAR HEATER),IVORY,TRIM40,41

main58510-6C150-B0iUZJ100200008-200208

W(TRANSVERSE THIRD SEAT & REAR HEATER),GRAY,TRIM1#

main58510-6C151-A1iUZJ100200208-200308

IVORY,TRIM0#

main58510-6C151-B1iUZJ100200208-200308

STONE,TRIM1#

main58510-6C152-A1iUZJ100200308-200401

IVORY,TRIM0#

main58510-6C152-B1iUZJ100200308-200401

STONE,TRIM1#

main58510-6C153-A1iUZJ100200402-200505

IVORY,TRIM0#

main58510-6C153-B1iUZJ100200402-200505

STONE,TRIM1#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07158-A0iUZJ100200008-200208

IVORY,TRIM40,41

main90467-07158-A1iUZJ100200208-200505

IVORY,TRIM0#

main90467-07158-B1iUZJ100200008-200208

MD.GRAY,TRIM1#

main90467-07158-B2iUZJ100200208-200505

STONE,TRIM1#

58517CPAD, FRONT FLOOR MAT

main58517-60030iUZJ100199801-200208

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-60030-A0iUZJ100200008-200208

IVORY,TRIM4#

main58533-60030-A1iUZJ100200208-200303

IVORY,TRIM0#

main58533-60030-B0iUZJ100200008-200208

MD.GRAY,TRIM1#

main58533-60030-B1iUZJ100200208-200303

STONE,TRIM1#

main58533-60031-A1iUZJ100200505-200708

IVORY,TRIM0#

main58533-60031-B1iUZJ100200505-200708

STONE,TRIM1#

58533BCLIP(FOR FLOOR CARPET COVER)

main90467-04017-A0×2iUZJ100200505-200708

IVORY,TRIM0#

main90467-04017-A1×2iUZJ100200008-200208

IVORY,TRIM4#

main90467-04017-B1×2iUZJ100200008-200208

MD.GRAY,TRIM1#

main90467-04017-B2×2iUZJ100200208-200505

STONE,TRIM1#

58570CCARPET ASSY, REAR FLOOR

main58570-60530-A0iUZJ100199801-200008

IVORY,TRIM40,41

main58570-60530-B0iUZJ100199801-200008

GRAY,TRIM1#

main58570-60540-A0iUZJ100199801-200008

W(TRANSVERSE THIRD SEAT),IVORY,TRIM40,41

main58570-60540-B0iUZJ100199801-200008

W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#

main58570-60560-A0iUZJ100199801-200008

W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM40,41

main58570-60560-B0iUZJ100199801-200008

W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),GRAY,TRIM1#

main58570-60760-A0iUZJ100200008-200208

IVORY,TRIM4#

main58570-60760-B0iUZJ100200008-200208

GRAY,TRIM1#

main58570-60770-A0iUZJ100200008-200208

W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM4#

main58570-60770-A1iUZJ100200208-200401

IVORY,TRIM0#

main58570-60770-B0iUZJ100200008-200208

W(TRANSVERSE THIRD SEAT & DUAL AIR CONDITIONER),GRAY,TRIM1#

main58570-60770-B1iUZJ100200208-200401

STONE,TRIM1#

main58570-60771-A1iUZJ100200505-200708

IVORY,TRIM0#

main58570-60771-B1iUZJ100200402-200505

STONE,TRIM1#

main58570-60780-A0iUZJ100200008-200208

W(TRANSVERSE THIRD SEAT),IVORY,TRIM4#

main58570-60780-B0iUZJ100200008-200208

W(TRANSVERSE THIRD SEAT),GRAY,TRIM1#

58574APLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-60040-A0iUZJ100199801-200208

IVORY,TRIM40,41

main58574-60040-A1iUZJ100200505-200708

IVORY,TRIM0#

main58574-60040-B0iUZJ100199801-200208

MD.GRAY,TRIM1#

main58574-60040-B1iUZJ100200505-200708

STONE,TRIM1#

58621FSILENCER, CENTER CONSOLE, NO.1

main58621-60110iUZJ100199801-200208

58624GPAD, FRONT FLOOR SILENCER

main58624-60110iUZJ100199801-200208

58625DPLATE, REAR FLOOR MAT, NO.1

main58625-60020-A0iUZJ100199801-200208

IVORY,TRIM40,41

main58625-60020-A1iUZJ100200208-200505

IVORY,TRIM0#

main58625-60020-B0iUZJ100199801-200208

MD.GRAY,TRIM1#

main58625-60020-B1iUZJ100200208-200505

STONE,TRIM1#

58626DPLATE, REAR FLOOR MAT, NO.2

main58626-60020-A0iUZJ100199801-200208

IVORY,TRIM40,41

main58626-60020-A1iUZJ100200208-200505

IVORY,TRIM0#

main58626-60020-B0iUZJ100199801-200208

MD.GRAY,TRIM1#

main58626-60020-B1iUZJ100200208-200505

STONE,TRIM1#

8628660010BRACKET, AMPLIFIER, NO.2

main86286-60010

9046804089

main90468-04089

91511B0620

main91511-B0620

9354055020

main93540-55020

16 parts on this diagram · 1 diagram in section
