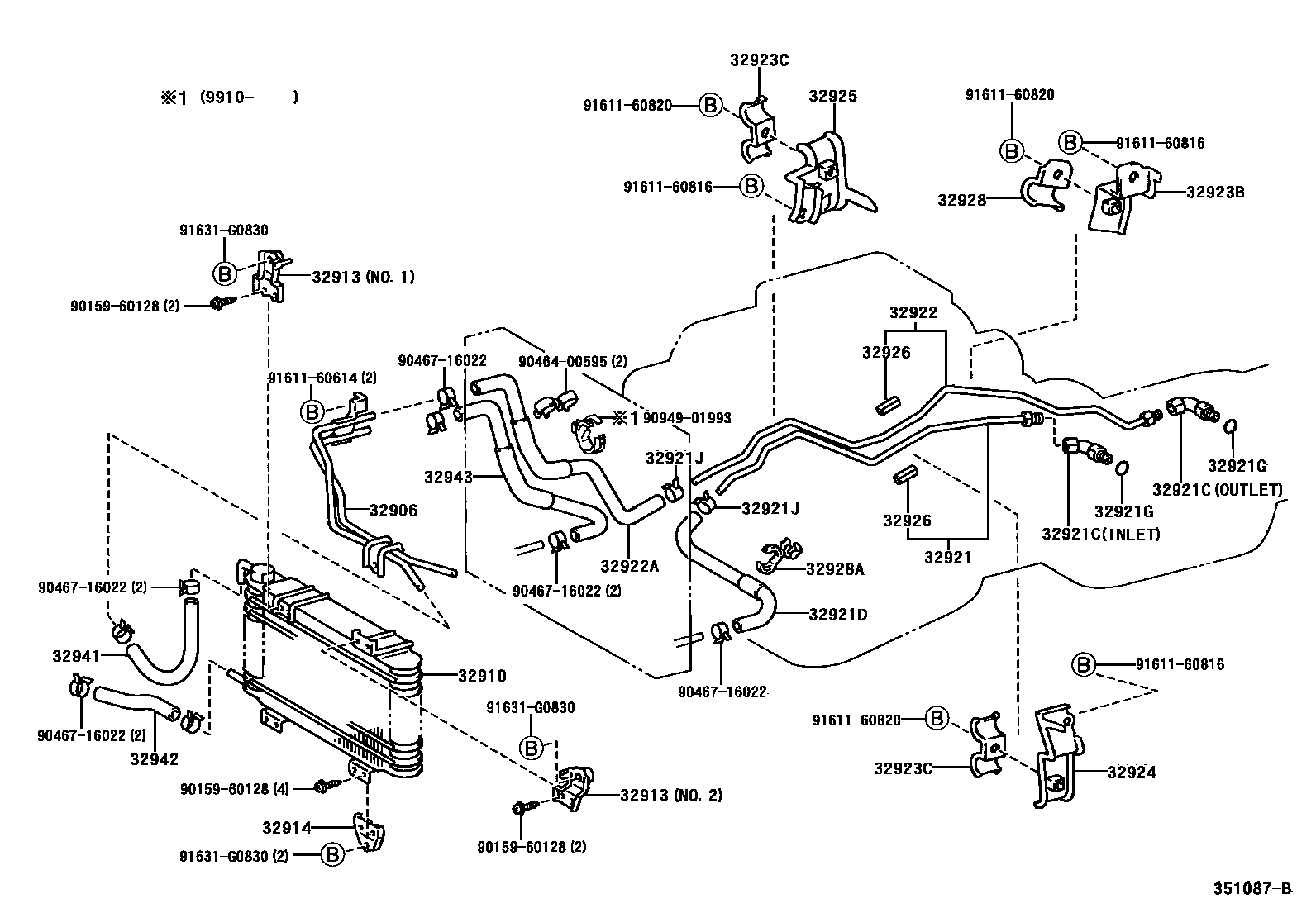

OIL COOLER & TUBE (ATM)
32906TUBE SUB-ASSY, OIL COOLER
32910COOLER ASSY, OIL
32913BRACKET, OIL COOLER
NO.1
NO.2
32914STAY, OIL COOLER
32921TUBE, OIL COOLER INLET, NO.1
32921CUNION(FOR OIL COOLER TUBE)
INLET
OUTLET
32921DHOSE(FOR OIL COOLER INLET)
32921GRING, O(FOR OIL COOLER TUBE UNION)
32922TUBE, OIL COOLER OUTLET, NO.1
32922AHOSE(FOR OIL COOLER OUTLET)
32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924CLAMP, OIL COOLER TUBE, NO.2
32925CLAMP, OIL COOLER TUBE, NO.3
32926CUSHION, OIL COOLER TUBE(ATM)
L=35,ID=10
L=45,ID=12
32928CLAMP, FLEXIBLE HOSE, NO.1
32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)
32941HOSE, OIL COOLER INLET, NO.1
32942HOSE, OIL COOLER OUTLET, NO.1
32943HOSE, TRANSMISSION OIL COOLER, NO.1
9015960128
main90159-60128
9046400595
main90464-00595
9046716022
main90467-16022
9094901993
main90949-01993
9161160614
main91611-60614
9161160816
main91611-60816
9161160820
main91611-60820
91631G0830
main91631-G0830
30 parts on this diagram · 2 diagrams in section
