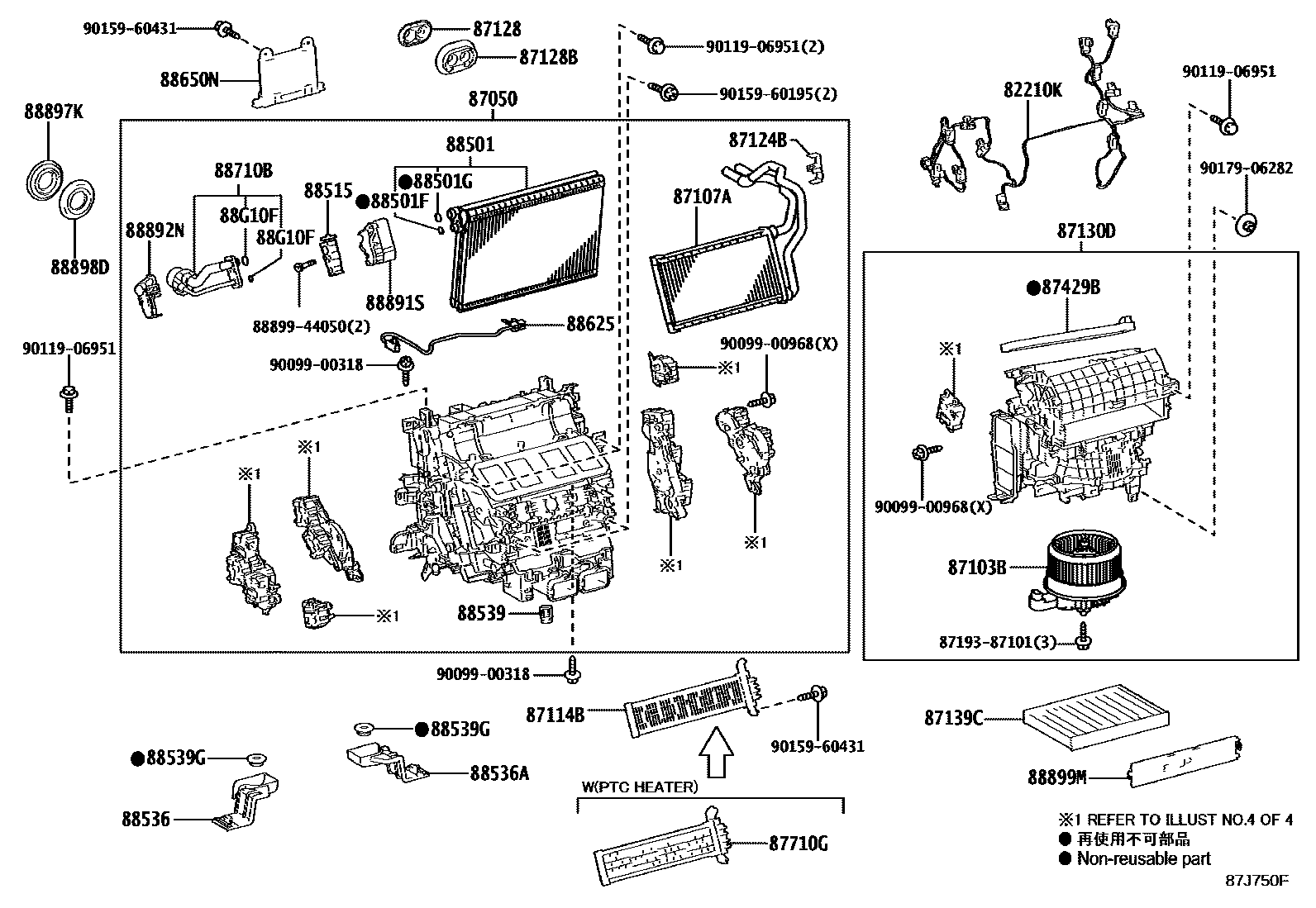

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT(1LAY),W/O (COOL BOX) 0002 1FRONT(2LAY),W/O (COOL BOX) 0003 1FRONT(1LAY),W (COOL BOX) 0004 1FRONT(2LAY),W (COOL BOX) 0005 1FRONT,W/O (COOL BOX) 0006 1FRONT,W (COOL BOX) 0007 1REAR AIR CONDITIONER 0008 1REAR COOLER 0009 1COOL BOX 0010 1DAMPER SERVO 0011 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-60520iVJA300..(S,Z)..GCC202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main82212-60520iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..S..GEN;FJA300..LHD..5S..(S,V);VJA300..LHD..(V,Z)..(EUR,GEN);FJA300..LHD..7S..(S,V,Z)..(EUR,GEN)202104-202411

main82212-60530iFJA300,GRJ300,VJA300..(S,V,Z)..GCC202104-202411

main82212-60540iFJA300,VJA300..LHD..(A,G)..(EUR,GEN)202104-202411

main82212-60550iFJA300,GRJ300,VJA300..(A,G)..GCC202104-202411

main82212-60560iFJA300..A..ARL;FJA300,VJA300..RHD..(S,V,Z)202104-202411

main82212-60570iFJA300..G..ARL;FJA300,VJA300..RHD..A..GEN202104-202411

87050RADIATOR ASSY, AIR CONDITIONER

main87050-60D80iFJA300,GRJ300,VJA300..(S,V,Z)..GCC202411

main87050-60D90iFJA300,GRJ300,VJA300..(S,V,Z)..GCC202104-202411

main87050-60N30iVJA300..(S,Z)..GCC202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main87050-60N40iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..S..GEN;FJA300..LHD..5S..(S,V);VJA300..LHD..(V,Z)..(EUR,GEN);FJA300..LHD..7S..(S,V,Z)..(EUR,GEN)202104-202411

main87050-60N50iFJA300,GRJ300,VJA300..(A,G)..GCC202104-202411

main87050-60N70iFJA300..LHD..(A,G)..GEN202107-202411

main87050-60N80iFJA300,VJA300..A..EUR202104-202411

main87050-60N90iFJA300..(A,S,V,Z)..ARL202411

main87050-60P10iFJA300..G..ARL202411

main87050-60P20iFJA300,VJA300..RHD..(S,V,Z)..GEN202411

INDIA SPEC

main87050-60P30iFJA300,VJA300..RHD..(S,V,Z)202104-202411

main87050-60P40iFJA300..G..ARL202411

INDIA SPEC

main87050-60P50iFJA300,VJA300..RHD..(A,G)202104-202411

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-33170iFJA300..LHD..(A,G)..GEN;FJA300,GRJ300,VJA300..GCC202104-202411

main87103-50180iVJA300..(S,Z)..GCC202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main87103-50180iFJA300..G..GEN;FJA300,VJA300..LHD..(A,S,V,Z)..(EUR,GEN)202104

main87103-50190iFJA300,VJA300..RHD202104-202411

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-60450iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

main87107-60460iFJA300,VJA300..RHD202104-202411

87114BCOVER, HEATER

main87114-30010iVJA300..A..EUR;VJA300..GCC,GEN;FJA300..7S..GEN;FJA300,GRJ300..ARL,GCC202411

TAJIKISTAN, TURKMENISTAN SPEC&WITHOUT(COLD AREA SPEC)

main87114-30010iVJA300..A..EUR;VJA300..GCC,GEN;FJA300..7S..GEN;FJA300,GRJ300..ARL,GCC202104-202411

HEATER-*673(2LAYER BLOWER)

87124BCLAMP, HEATER

main87124-33070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

87128GROMMET, HEATER

main87128-60120iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

87128BGROMMET, HEATER, NO.2

main87128-28020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

87130DBLOWER ASSY

main87130-60630iFJA300,GRJ300,VJA300..GCC202104-202111

main87130-60631iFJA300,GRJ300,VJA300..GCC202112-202411

main87130-60640iFJA300,VJA300..RHD202104-202410

main87130-60650iFJA300,VJA300..LHD..(EUR,GEN)202104-202111

main87130-60651iFJA300..(S,Z)..GCC202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main87130-60651iFJA300..G..GEN;FJA300,VJA300..LHD..(A,S,V,Z)..(EUR,GEN)202112

87139CFILTER, CLEAN AIR

main87139-30110iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

DEODORANT FILTER

main87139-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

POLLEN FILTER

87429BPACKING, COOLER UNIT, NO.1

main87429-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104

87710GQUICK HEATER ASSY

main87710-60070iGRJ300..A202104-202411

HEATER-FRONT DUAL CONTROL & PTC

main87710-60070iGRJ300..A202104-202411

KAZAKHSTAN SPEC&COLD AREA SPEC

main87710-60070iVJA300..A..EUR202104-202411

HEATER-*673(2LAYER BLOWER) & PTC

main87710-60070iVJA300..A..EUR202104-202411

TAJIKISTAN, TURKMENISTAN SPEC&COLD AREA SPEC

main87710-60070iVJA300..A..EUR202104-202411

KYRGYZ SPEC&COLD AREA SPEC

main87710-60070iVJA300..A..EUR202104-202411

UZBEKISTAN SPEC&COLD AREA SPEC

main87710-60070iVJA300..A..EUR202411

AZERBAIJAN, GEORGEA SPEC&COLD AREA SPEC

main87710-60070iVJA300..A..EUR202104-202411

MONGOLIA SPEC&COLD AREA SPEC

main87710-60070iVJA300..A..EUR202104-202411

ARMENIA SPEC&COLD AREA SPEC

main87710-60070iGRJ300..A202104-202411

AZER, GEORGIA SPEC&COLD AREA SPEC

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-60670iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

main88501-60670iFJA300..5S..ARL202411

INDIA SPEC

main88501-60680iFJA300..ARL202411

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-60340iFJA300..G..ARL202411

main88515-60350iVJA300..V,Z;FJA300..A..EUR;VJA300..S..GCC;VJA300..5S..(A,S);VJA300..(A,S)..GEN;FJA300..RHD..(A,G);FJA300..5S..S..GEN;FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)202104-202411

88536BRACKET, COOLING UNIT, NO.1

main88688-60B80iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

88536ABRACKET, COOLING UNIT, NO.2

main88688-60B90iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

88539HOSE, COOLER UNIT DRAIN, NO.1

main88899-10110iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26029iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104-202411

88625THERMISTOR, COOLER, NO.1

main88620-30290iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202104-202411

main88620-50020iFJA300,VJA300..RHD202104-202411

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-6A110iVJA300..RHD..Z;VJA300..LHD..(V,Z)..(GCC,GEN)202104-202310

main886H0-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202310-202411

main886H0-60130iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

88710BTUBE ASSY, AIR CONDITIONER

main88710-60N50iFJA300,GRJ300,VJA300..LHD..(A,G)..(GCC,GEN)202104-202411

COOL BOX-WITH

main88710-60N50iVJA300..5S..S;FJA300..Z..EUR;FJA300..5S..GCC;VJA300..LHD..(G,V,Z);FJA300,GRJ300..LHD..7S;FJA300..LHD..5S..(S,V);VJA300..LHD..(A,S)..(GCC,GEN)202411

main88710-60N60iFJA300..5S..ARL202411

INDIA SPEC

main88710-60N80iFJA300..(A,S,V,Z)..ARL202411

main88710-60N90iFJA300,VJA300..5S..(A,G)..(ARL,EUR)202104-202411

88891SCOVER, COOLER, NO.1

main88891-11010iFJA300,VJA300..5S..(A,G)..(ARL,EUR)202104-202411

88892NCOVER, COOLER, NO.2

main88892-11010iFJA300,VJA300..5S..(A,G)..(ARL,EUR)202104-202411

88897KGROMMET, (FOR COOLER PIPE)

main88897-11020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

88898DGROMMET

main88899-11020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

88899MPLATE, COVER(FOR AIR FILTER)

main88899-50150iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

88G10FRING, O, NO.3 (FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iFJA300,VJA300..5S..(A,G)..(ARL,EUR)202308-202411

ID=6.7,OD=10.3

main90099-14121iVJA300..V,Z;FJA300..A..EUR;VJA300..S..GCC;VJA300..5S..(A,S);VJA300..(A,S)..GEN;FJA300..RHD..(A,G);FJA300..5S..S..GEN;FJA300..7S..(S,V,Z)..GEN;FJA300,GRJ300..(S,V,Z)202308-202411

ID=13.4,OD=18.2

8719387101

main87193-87101

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9009900968

main90099-00968

9011906951

main90119-06951

9015960195

main90159-60195

9015960431

main90159-60431

9017906282

main90179-06282

37 parts on this diagram · 11 diagrams in section
