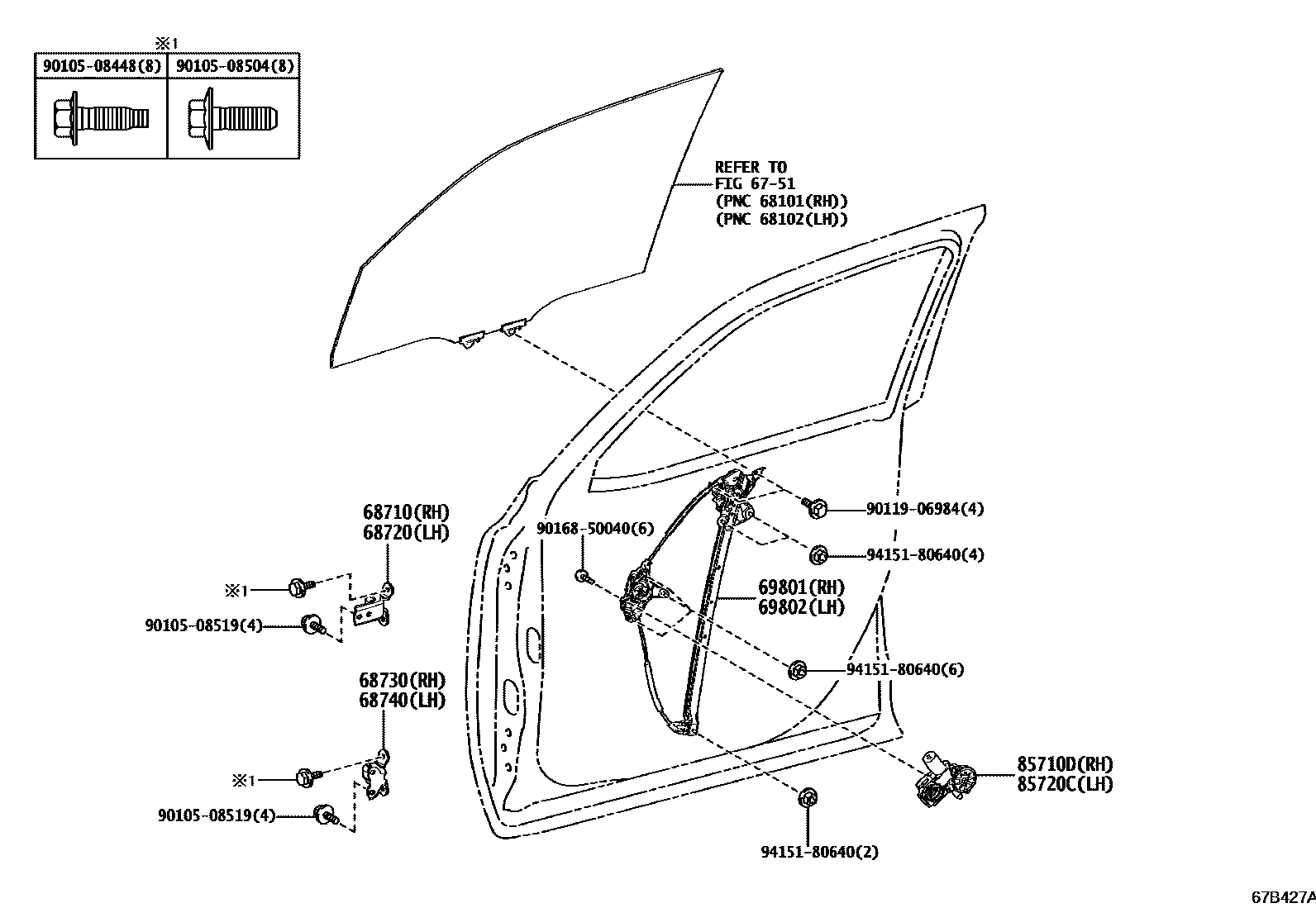

FRONT DOOR WINDOW REGULATOR & HINGE

6751FRONT DOOR PANEL & GLASS

→ Go to FIG 67-51

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-52040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-52030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52040iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-60110iFJA300,GRJ300,VJA300202104-202212

main69801-60111iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202301

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-60110iFJA300,GRJ300,VJA300202104-202212

main69802-60111iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202301

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-60390iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

main85710-60410iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-60370iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

main85720-60430iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

9010508448

main90105-08448

9010508504

main90105-08504

9010508519

main90105-08519

9011906984

main90119-06984

9016850040

main90168-50040

9415180640

main94151-80640

15 parts on this diagram · 1 diagram in section
