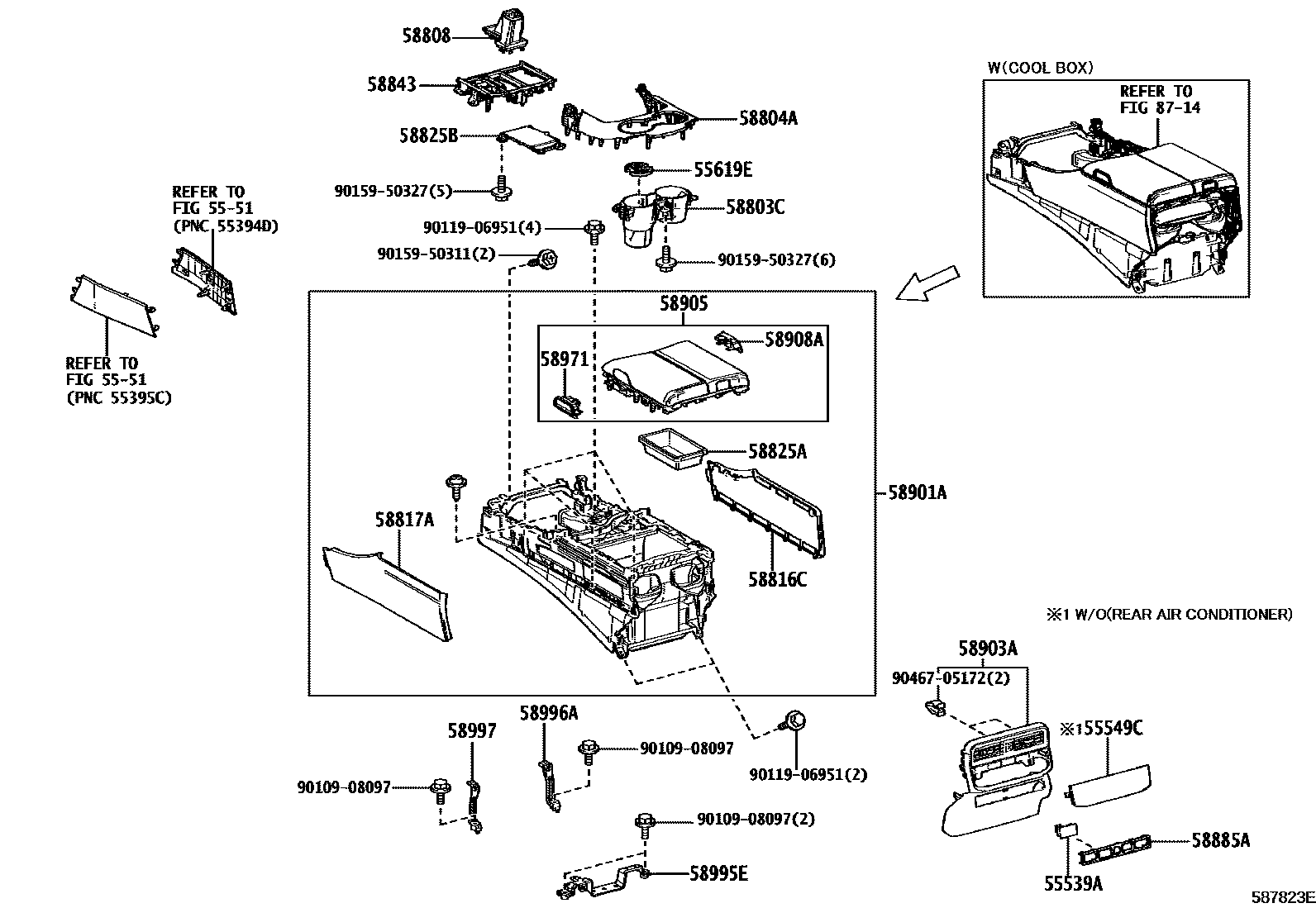

CONSOLE BOX & BRACKET
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
55539ACOVER, SPARE SWITCH HOLE
ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:2)
ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3)
USB CHARGER SOCKET-USB(FRONT:1 , REAR:2)
USB CHARGER SOCKET-USB(FRONT:1 , REAR:3)
USB CHARGER SOCKET-WITHOUT
USB CHARGER SOCKET-USB(FRONT:1)
ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB:4 & TOW CONVERTER(MOP FOR AUSTRALIA)
55549CCOVER, REAR COOLER SWITCH HOLE
main55549-60050iFJA300..5S..(A,G);FJA300..(A,G)..GEN;VJA300..A..(EUR,GEN);FJA300,GRJ300..7S..G..GCC202104-202411
AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER)
55619ECOVER, CUP HOLDER HOLE
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
main58803-60200iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202104-202411
58804APANEL SUB-ASSY, CONSOLE, UPPER
UPGRADE PACKAGE(AERO)
UPGRADE PACKAGE
main58804-60M30iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202104-202411
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
UPGRADE PACKAGE(AERO),BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
UPGRADE PACKAGE,BLACK,TRIM2#,4#
BLACK,TRIM2#,3#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
58816CINSERT, CONSOLE BOX, FRONT NO.1
COOL BOX-WITH,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,40
COOL BOX-WITH,BLACK,TRIM2#,40
INDIA SPEC,BLACK,TRIM2#
NEUTRAL BEIGE,TRIM40
NEUTRAL BEIGE,TRIM4#
INDIA SPEC,NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM40
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,31
COOL BOX-WITH,BLACK,TRIM2#,31
BLACK,TRIM2#
DK.ROSE,TRIM3#
COOL BOX-WITH,DK.ROSE,TRIM31
DK.ROSE,TRIM31
NEUTRAL BEIGE,TRIM4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#,40
BLACK,TRIM2#,40
INDIA SPEC,BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#
INDIA SPEC,NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
COOL BOX-WITH,NEUTRAL BEIGE,TRIM40
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#,31
BLACK,TRIM2#,31
BLACK,TRIM2#,3#
DK.ROSE,TRIM31
COOL BOX-WITH,DK.ROSE,TRIM31
DK.ROSE,TRIM3#
NEUTRAL BEIGE,TRIM4#
58825APOCKET, CONSOLE BOX
main58826-60050iFJA300..A..EUR;FJA300..RHD..(A,G);VJA300..A..(EUR,GEN);FJA300,GRJ300,VJA300..S,V,Z202104
INDIA SPEC
58825BPOCKET, CONSOLE BOX
main58825-60100iVJA300..5S..S;FJA300..5S..(EUR,GCC);VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN)202411
WIRELESS CHARGER-WITH
WIRELESS CHARGER-WITH
58843BEZEL, SHIFTING HOLE
main58843-60190iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202104-202411
58885APANEL, EQUIPMENT SET
main58885-60220iVJA300..5S..S;VJA300..RHD..Z;FJA300..Z..EUR;FJA300..5S..(S,V);VJA300..LHD..(V,Z);VJA300..LHD..S..(GCC,GEN);FJA300,GRJ300..7S..(S,V,Z)202411
REAR SEAT ENTERTAINMENT-WITH
58901ABOX SUB-ASSY, CONSOLE, REAR
COOL BOX-WITH,BLACK,TRIM2#
BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#,3#
COOL BOX-WITH,BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,31
COOL BOX-WITH,BLACK,TRIM2#,31
DK.ROSE,TRIM3#
DK.ROSE,TRIM31
COOL BOX-WITH,DK.ROSE,TRIM31
COOL BOX-WITH,DK.ROSE,TRIM3#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
DK. ROSE,TRIM3#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#,3#
BLACK,TRIM2#,31
COOL BOX-WITH,BLACK,TRIM2#,31
COOL BOX-WITH,DK.ROSE,TRIM31
DK.ROSE,TRIM31
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#,3#
DK. ROSE,TRIM3#
COOL BOX-WITH,DK. ROSE,TRIM3#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
INDIA SPEC,BLACK,TRIM2#
INDIA SPEC,NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
UPGRADE PACKAGE,BLACK,TRIM2#,4#
UPGRADE PACKAGE(AERO),BLACK,TRIM2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#,4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#
BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#,31
BLACK,TRIM2#,31
BLACK,TRIM2#,3#
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#,3#
COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,DK.ROSE,TRIM3#
DK.ROSE,TRIM31
DK.ROSE,TRIM3#
COOL BOX-WITH,DK.ROSE,TRIM31
NEUTRAL BEUGE,TRIM4#
COOL BOX-WITH,NEUTRAL BEUGE,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,3#
DK. ROSE,TRIM3#
NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,31
COOL BOX-WITH,BLACK,TRIM2#,31
COOL BOX-WITH,BLACK,TRIM2#,3#
COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,DK.ROSE,TRIM31
DK.ROSE,TRIM31
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#
DK. ROSE,TRIM3#
COOL BOX-WITH,DK. ROSE,TRIM3#
NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
NEUTRAL BEIGE,TRIM4#
BLACK,TRIM2#
INDIA SPEC,BLACK,TRIM2#
INDIA SPEC,NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
TRIM2#
COOL BOX-WITH,TRIM2#
COOL BOX-WITH,TRIM4#
TRIM4#
INDIA SPEC,BLACK,TRIM2#
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#
INDIA SPEC,NEUTRAL BEIGE,TRIM4#
COOL BOX-WITH,TRIM2#,3#
TRIM2#
TRIM2#,3#
COOL BOX-WITH,TRIM2#
COOL BOX-WITH,TRIM4#
TRIM4#
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
NEUTRAL BEIGE,TRIM4#
58971LOCK, CONSOLE COMPARTMENT DOOR
TRIM2#
COOL BOX-WITH,TRIM2#
TRIM4#
COOL BOX-WITH,TRIM4#
COOL BOX-WITH,BLACK,TRIM2#
BLACK,TRIM2#
INDIA SPEC,BLACK,TRIM2#
COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#
INDIA SPEC,NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM4#
TRIM2#
TRIM2#,3#
COOL BOX-WITH,TRIM2#
COOL BOX-WITH,TRIM2#,3#
COOL BOX-WITH,TRIM4#
TRIM4#
BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#
COOL BOX-WITH,BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
NEUTRAL BEIGE,TRIM4#
58995EBRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-60100iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-60110iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
main58997-60100iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411
8714HEATING & AIR CONDITIONING - COOLER UNIT
9010908097
main90109-08097
9011906951
main90119-06951
9015950311
main90159-50311
9015950327
main90159-50327
9046705172
main90467-05172
27 parts on this diagram · 2 diagrams in section
