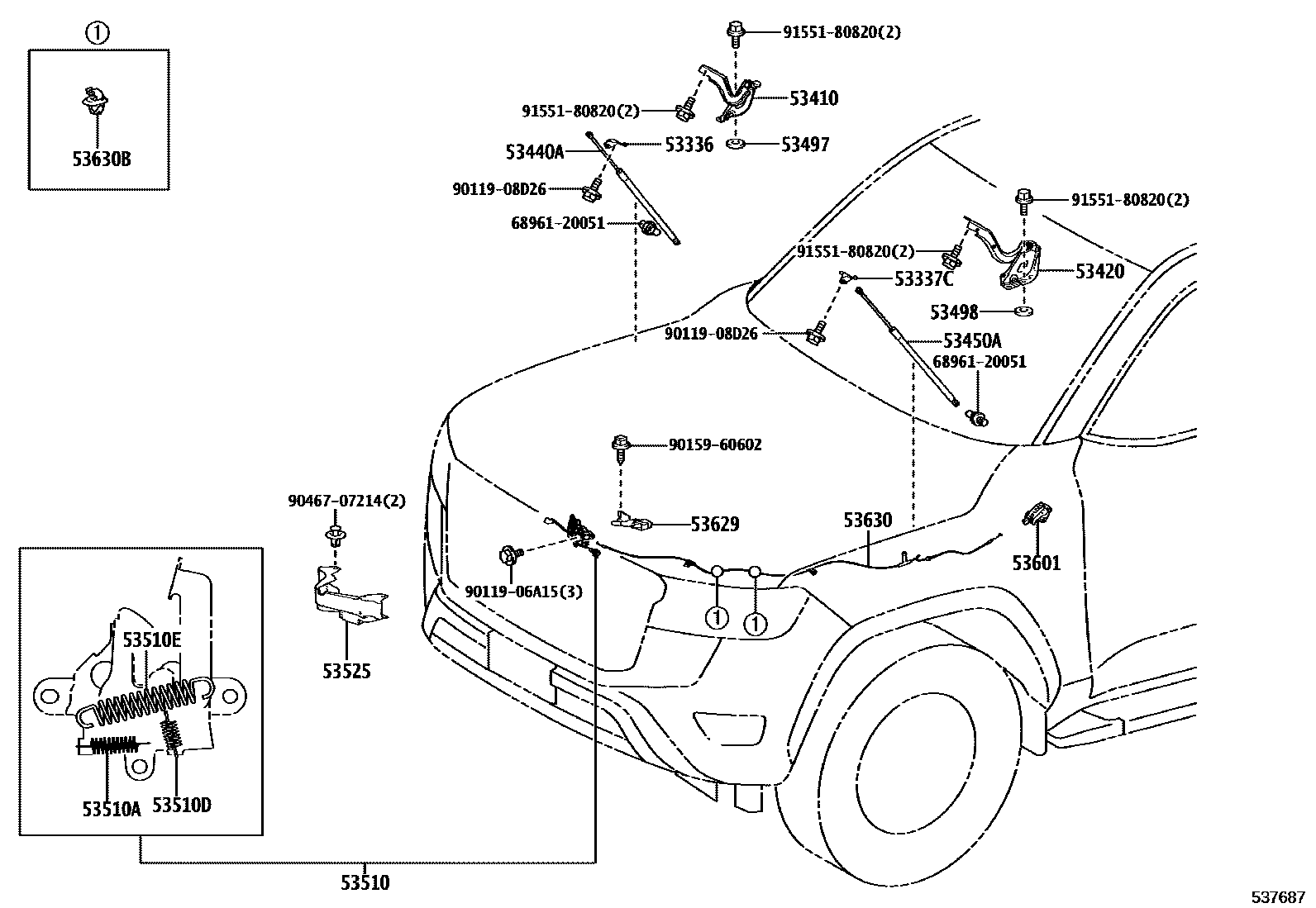

HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-60030iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

53337CBRACKET, HOOD STAY, LH

main53337-60020iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

53410HINGE ASSY, HOOD, RH

main53410-60190iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

53420HINGE ASSY, HOOD, LH

main53420-60180iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

53440ASUPPORT ASSY, HOOD, RH

main53440-0W390iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

53450ASUPPORT ASSY, HOOD, LH

main53440-0W390iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

53497PAD, HOOD HINGE, NO.1

main53497-50020×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202104-202411

T=1.0

53498PAD, HOOD HINGE, NO.2

main53497-50020×2iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

T=1.0

53510LOCK ASSY, HOOD

main53510-60450iFJA300,VJA300..RHD202104-202411

main53510-60470iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

WD=1.6,CW=12

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-60070iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iFJA300,GRJ300,VJA300..A,G,V; VJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(S,Z)..GEN;VJA300..(S,Z)..(GCC,GEN);FJA300..(S,Z)..(ARL,EUR,GCC)202411

BLACK,TRIM2#; BLACK,TRIM2#,3#

main53601-30100-E3iGRJ300,VJA300..A,G,V,Z;FJA300..7S..(A,G,V,Z)..GEN;FJA300..(A,G,V,Z)..(ARL,EUR,GCC)202104-202411

NEUTRAL BEIGE,TRIM4#

53629COVER, HOOD LOCK CONTROL CABLE

main53629-60100iFJA300,VJA300..RHD202104-202411

main53629-60101iFJA300,VJA300..RHD202411

main53629-60110iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202411

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-60220iFJA300,VJA300..RHD202411

main53630-60230iVJA300..5S..S;FJA300..Z..EUR;VJA300..LHD..(A,G,V,Z);FJA300,GRJ300..LHD..7S;VJA300..LHD..S..(GCC,GEN);FJA300..LHD..5S..(A,G,S,V)202104-202411

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×2iFJA300..5S..Z..GEN;VJA300..7S..S..EUR202104

6896120051BOLT, BACK DOOR STAY

main68961-20051

9011906A15

main90119-06A15

9011908D26

main90119-08D26

9015960602

main90159-60602

9046707214

main90467-07214

9155180820

main91551-80820

23 parts on this diagram · 2 diagrams in section
