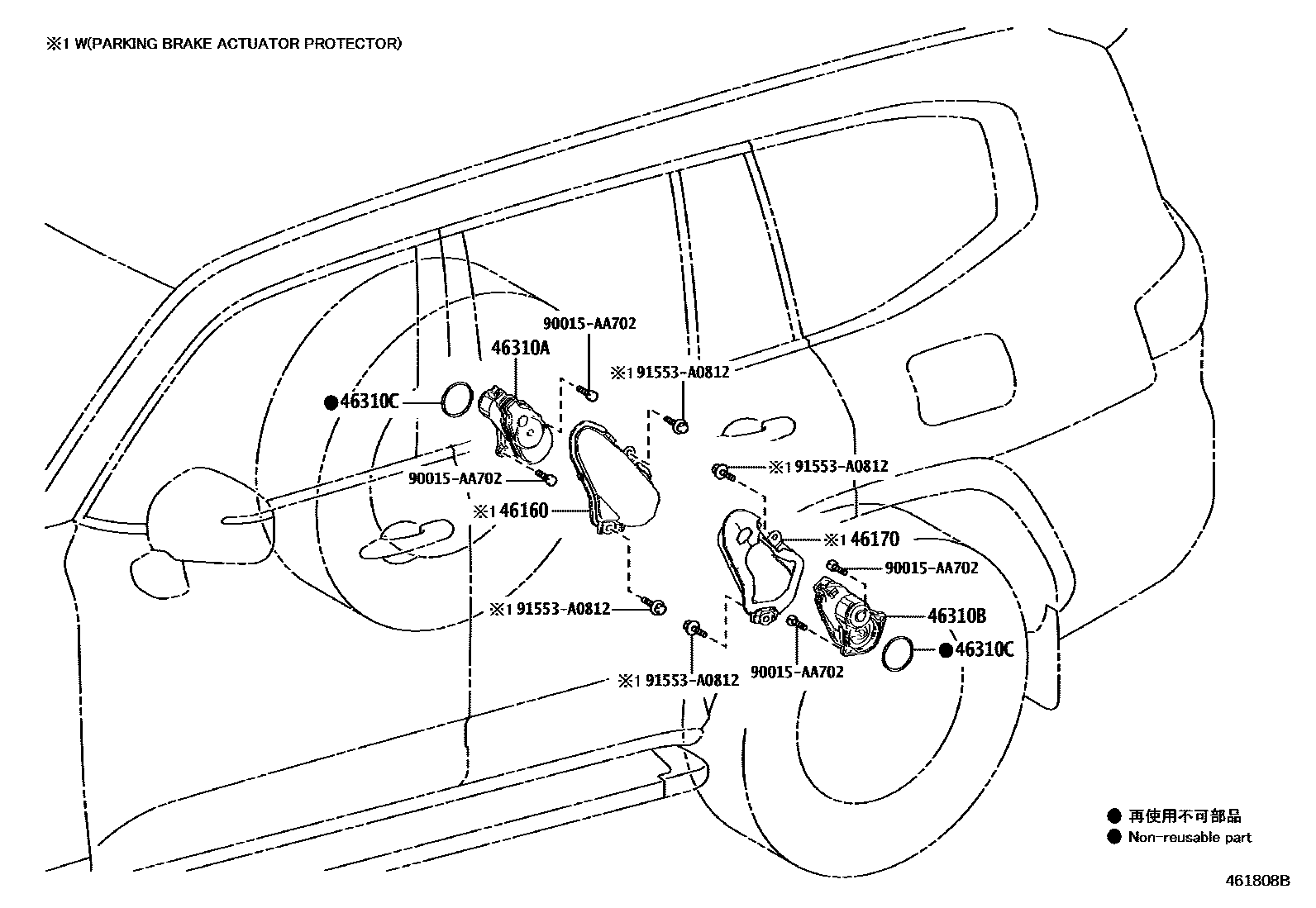

PARKING BRAKE & CABLE

46160PROTECTOR ASSY, PARKING BRAKE ACTUATOR, RH

main46160-60010iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(G,S,Z)..GEN;VJA300..(G,S,Z)..(GCC,GEN);FJA300,GRJ300..(G,S,Z)..(ARL,EUR,GCC)202411

46170PROTECTOR ASSY, PARKING BRAKE ACTUATOR, LH

main46170-60010iVJA300..5S..(S,Z);FJA300..5S..S..GEN;FJA300..7S..(G,S,Z)..GEN;VJA300..(G,S,Z)..(GCC,GEN);FJA300,GRJ300..(G,S,Z)..(ARL,EUR,GCC)202411

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-60050iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005×2iVJA300..5S..S;VJA300..A,G,V,Z;FJA300..7S..GEN;FJA300..5S..S..GEN;VJA300..S..(GCC,GEN);FJA300,GRJ300..ARL,EUR,GCC202411

90015AA702

main90015-AA702

91553A0812

main91553-A0812

7 parts on this diagram · 1 diagram in section
