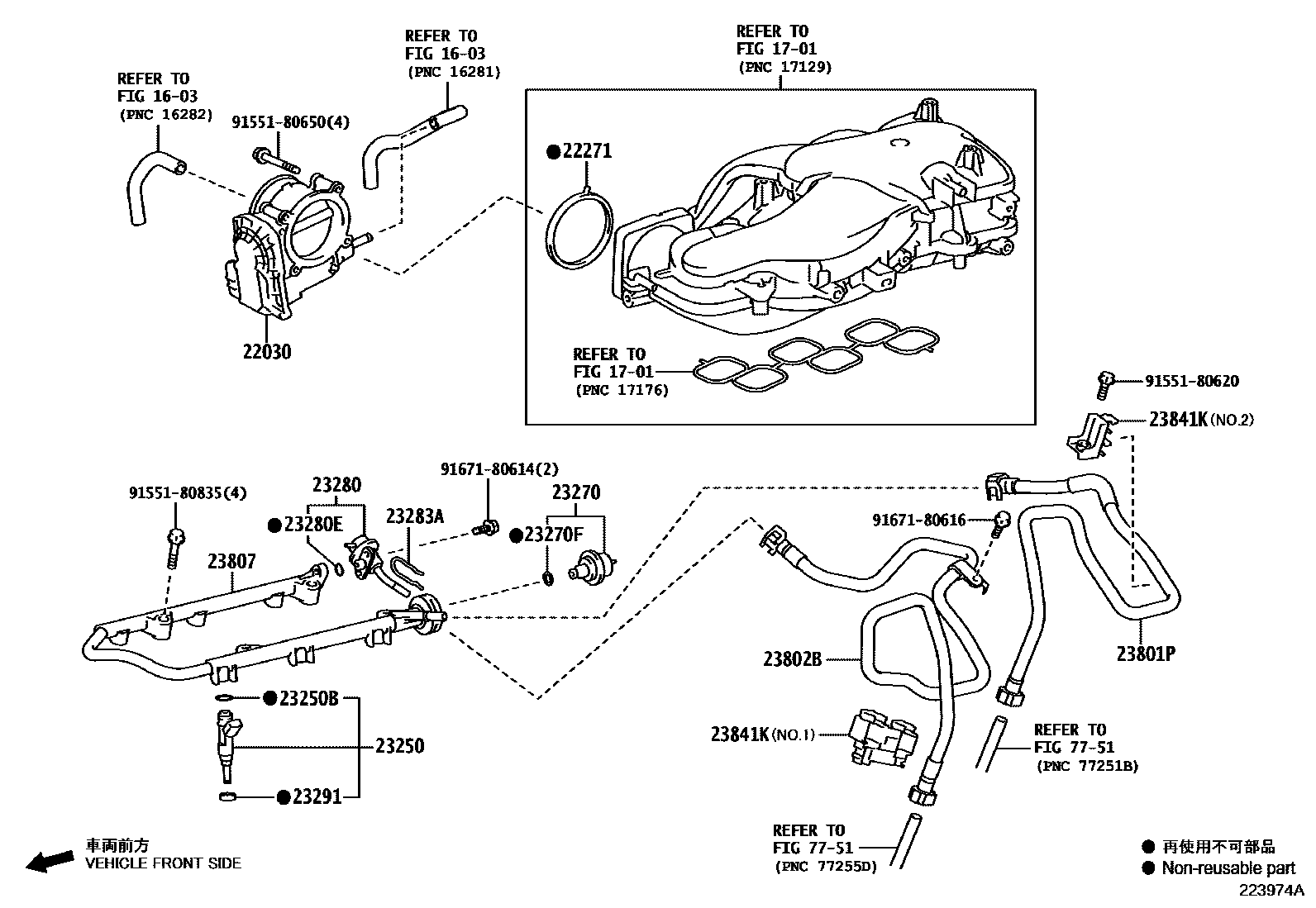

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
1701MANIFOLD
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
main22271-70070iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
main90301-05013×6iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202411
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270FRING, O(FOR PULSATION DAMPER)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23283AHOLDER, FUEL PRESSURE REGULATOR
23291INSULATOR, INJECTOR VIBRATION
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23841KCLAMP, FUEL PIPE
NO.2
NO.1
7751FUEL TANK & TUBE
9155180620
main91551-80620
9155180650
main91551-80650
9155180835
main91551-80835
9167180614
main91671-80614
9167180616
main91671-80616
22 parts on this diagram · 2 diagrams in section
