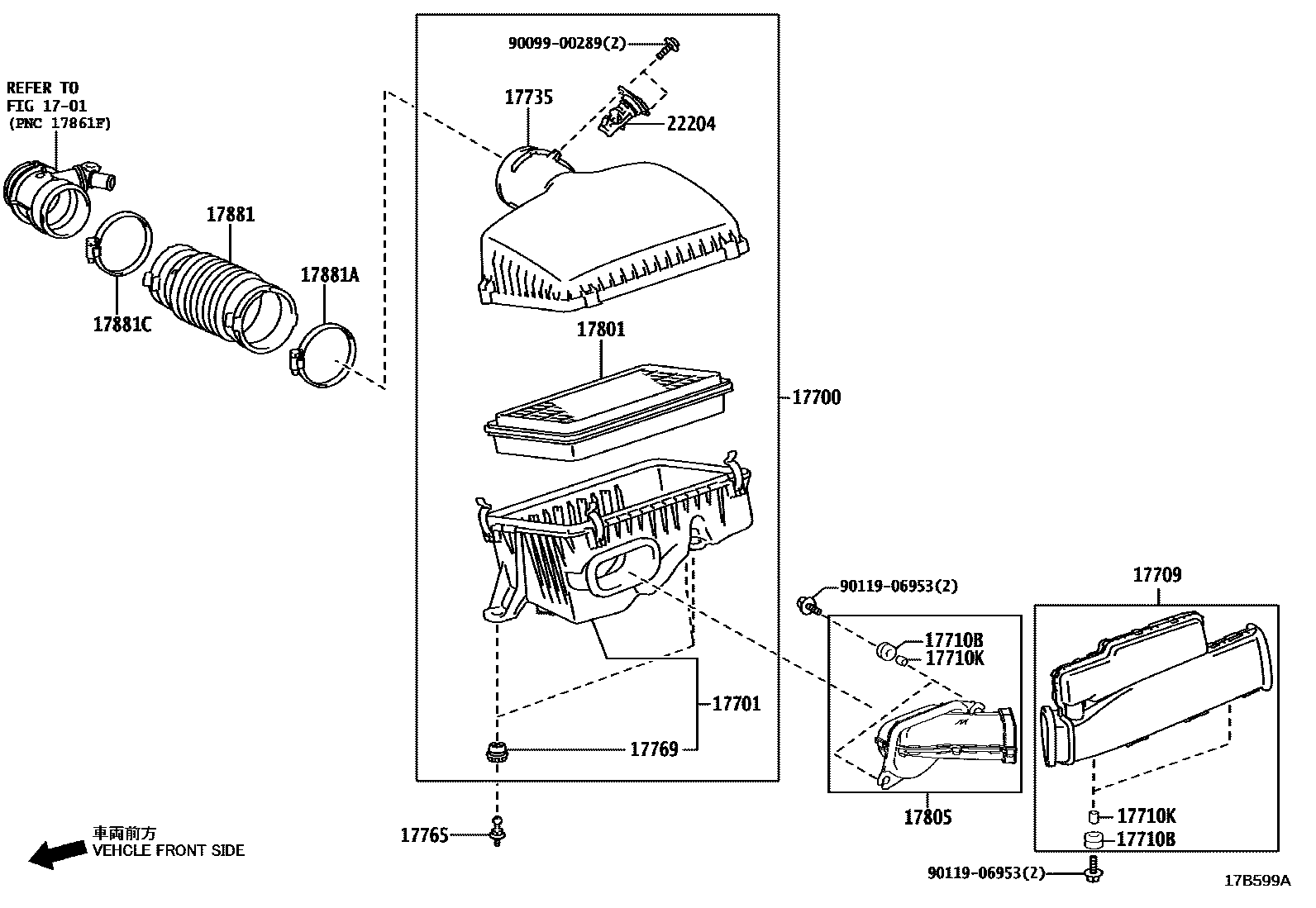

AIR CLEANER

0001 1AIR CLEANER 0002 1AIR CLEANER,W(SNORKEL) 0003 1INTERCOOLER 0004 1 0005 1 0006 1

1701MANIFOLD

→ Go to FIG 17-01

17700CLEANER ASSY, AIR

main17700-52050iF33AFTV..FJA300202107-202203

main17700-52051iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

17701CASE SUB-ASSY, AIR CLEANER

main17701-31810i1GRFE..GRJ300202411

main17701-52050iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

main17701-70160iV35AFTS..VJA300..7S..S..EUR202104

17709INLET SUB-ASSY, AIR CLEANER

main17709-31010i1GRFE..GRJ300202411

main17709-52010iF33AFTV..FJA300..5S..Z..GEN202107

17710BGROMMET

main90480-14021×4i1GRFE..GRJ300; F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC; V35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202411

17710KCOLLAR(FOR AIR CLEANER)

main90387-07016×8i1GRFE..GRJ300; F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC; V35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202411

17735CAP, AIR CLEANER

main17735-31290i1GRFE..GRJ300202411

main17735-52010iF33AFTV..FJA300202107-202203

main17735-52011iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202204-202411

main17735-70030iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

NO.1

main17735-70040iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

NO.2

17765STAY, AIR CLEANER, NO.1

main17765-25010×3i1GRFE..GRJ300; V35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202104-202411

17769SUPPORT, AIR CLEANER

main17769-25030×3i1GRFE..GRJ300; F33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC; V35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202411

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31180i1GRFE..GRJ300202411

main17801-52020iF33AFTV..FJA300202107-202203

main17801-52021iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

main17801-70060×2iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202411

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-31050i1GRFE..GRJ300202104-202411

main17805-70100iV35AFTS..VJA300..5S..S;V35AFTS..VJA300..A,G,V,Z;V35AFTS..VJA300..S..(GCC,GEN)202411

main17806-52010iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

17881HOSE, AIR CLEANER, NO.1

main17881-52030iF33AFTV..FJA300202107-202201

main17881-52031iF33AFTV..FJA300..5S..Z..GEN202202

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-11000iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10930iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202411

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i1GRFE..GRJ300202104-202411

(L)

main22204-24010×2iV35AFTS..VJA300..7S..S..EUR202104

main22204-28010i1GRFE..GRJ300202411

(J)

main22204-30030iF33AFTV..FJA300..7S..GEN;F33AFTV..FJA300..5S..S..GEN;F33AFTV..FJA300..ARL,EUR,GCC202107-202411

9009900289

main90099-00289

9011906953

main90119-06953

17 parts on this diagram · 6 diagrams in section
