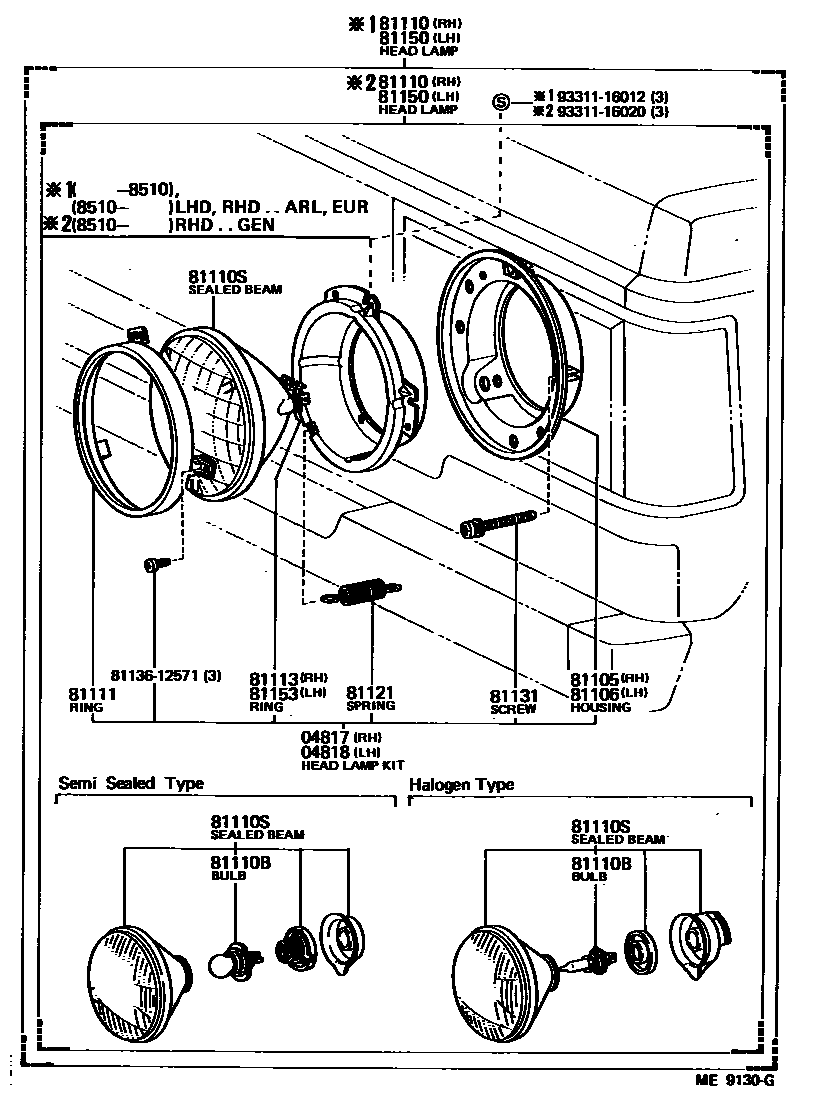

HEADLAMP

0001 1 0002 1

04817HEADLAMP KIT, W/O SEALED BEAM, RH

main04817-60020iFJ62,HJ6#..LHD198008-198708

HALOGEN

main04817-60030iHJ60..4FC..HRF..EUR;FJ60,HJ60..LHD..MTM..LUB..EUR198008-198708

HALOGEN,DETACHABLE

main04817-60040iFJ60,HJ60..ARL198301-198307

HALOGEN

04818HEADLAMP KIT, W/O SEALED BEAM, LH

main04818-60020iBJ60..LHD..GEN198008-198708

HALOGEN

main04818-60030iFJ60,HJ60..EUR198008-198708

HALOGEN,DETACHABLE

main04818-60040iFJ60,HJ60..ARL198301-198307

HALOGEN

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-90A00iHJ60..4FC..HRF..EUR;FJ60,HJ60..LHD..MTM..LUB..EUR198008-198708

DETACHABLE TYPE

main81105-90A02iBJ60,FJ6#,HJ6#198210-198708

EXCL/DETACHABLE TYPE

main81105-95A00iBJ60,FJ60,HJ60198008-198210

EXCL/DETACHABLE TYPE

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81105-90A02iBJ60,FJ6#,HJ6#198210-198708

EXCL/DETACHABLE TYPE

main81105-95A00iBJ60,FJ60,HJ60198008-198210

EXCL/DETACHABLE TYPE

main81106-90A00iFJ60,HJ60..EUR198008-198708

DETACHABLE TYPE

81110HEADLAMP ASSY, RH

main81110-69015iBJ60,FJ6#,HJ60..RHD..GEN198008-198510

12V SEALED

main81110-69025iBJ60..RHD198008-198510

24V SEALED

main81110-69035iBJ60,FJ60,HJ60..LHD..GEN198008-198109

12V SEALED

main81110-69065iBJ60,HJ60..LHD..GEN198008-198510

24V SEALED

main81110-69095iFJ62,HJ60..LHD..(GEN,ME)198008-198708

12V SEMI-SEALED,YELLOW

main81110-69105iBJ60,HJ60..LHD198008-198708

24V SEMI-SEALED,YELLOW

main81110-69115iFJ60,HJ60..ARL198008-198301

12V HALOGEN

main81110-69125iFJ60..LUB..EUR198008-198411

12V HALOGEN,DETACHABLE

main81110-69135iHJ60..4FC..HRF..EUR;HJ60..LHD..MTM..LUB..EUR198008-198708

24V HALOGEN,DETACHABLE

main81110-69165iFJ62,HJ60..LHD..(GEN,ME)198008-198708

12V HALOGEN

main81110-69175iBJ60..LHD..GEN198008-198708

24V HALOGEN

main81110-69185iHJ60..RHD..EUR198103-198708

24V HALOGEN

main81110-69235iBJ60,FJ6#,HJ60..LHD..(GEN,ME)198109-198708

12V SEALED

main81110-69245iFJ62,HJ60..RHD..GEN198510-198608

12V HALOGEN,*SA

main81110-69245iFJ6#,HJ6#..ARL198301-198708

12V HALOGEN

main81110-90A20iBJ60,FJ62,HJ60..RHD..GEN198510-198708

12V SEALED

main81110-90A22iFJ62,HJ60..RHD..GEN198510-198608

12V HALOGEN

main81110-90A24iFJ62,HJ60..RHD..GEN198608-198708

12V HALOGEN,SA

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13014iBJ60..LHD..GEN198008-198708

12V 45/40W,YELLOW,12V 45/40W SEMI-SEALED,YELLOW

main90981-13015iFJ62,HJ60..LHD..(GEN,ME)198008-198708

12V 60/55W,*HAL *WH,12V 60/55W HALOGEN

main90981-13015iFJ62,HJ60..RHD..GEN198608-198708

12V 60/55W,*HAL *WH,12V 60/55W HALOGEN,*SA

main90981-17009iBJ60,HJ60..LHD198008-198708

24V 55/50W,YELLOW,24V 55/50W SEMI-SEALED,YELLOW

main90981-17011iHJ60..RHD..EUR198008-198708

24V 75/70W,*HAL *WH,24V 75/70W HALOGEN

81110SSEALED BEAM UNIT, NO.1

main81136-90A11iFJ60..EUR198008-198411

12V,RH,HALOGEN,DETACHABLE

main81136-90A12iHJ60..EUR198008-198708

24V,RH,HALOGEN,DETACHABLE

main81176-90A11iFJ60..EUR198008-198411

12V,LH,HALOGEN,DETACHABLE

main81176-90A12iHJ60..4FC..HRF..EUR;HJ60..LHD..MTM..LUB..EUR198008-198708

24V,LH,HALOGEN,DETACHABLE

main90981-01015iBJ60,FJ6#,HJ60..RHD..GEN198008-198510

12V 50/40W,12V 50/40W SEALED

main90981-01016iBJ60,FJ60,HJ60..LHD..GEN198008-198109

12V 50/40W SEALED

main90981-01018iFJ60..EUR198008-198708

12V 45/40W,*YSB,12V 45/40W SEMI-SEALED,YELLOW

main90981-01035iFJ62,HJ60..LHD..(GEN,ME)198008-198708

12V 60/55W,*HWS,12V 60/55W HALOGEN

main90981-01037iFJ62,HJ60..RHD..GEN198608-198708

12V 60/55W,*HWS,12V 60/55W HALOGEN,*SA

main90981-01037iFJ60,HJ60..ARL198008-198301

12V 60/55W,*HWS,12V 60/55W HALOGEN

main90981-01044iBJ60..LHD..GEN198008-198708

24V 75/70W,*WSB,24V 75/70W HALOGEN

main90981-01046iBJ60,FJ6#,HJ60..LHD..(GEN,ME)198109-198708

12V 60/50W,*WB,12V 60/50W SEALED

main90981-01047iFJ6#,HJ6#..ARL198301-198708

12V 65/55W,*HAL,*WB,12V 65/55W,HALOGEN

main90981-01047iFJ62,HJ60..RHD..GEN198510-198608

12V 65/55W,*HAL,*WB,12V 65/55W HALOGEN,*SA

main90981-01048iBJ60,FJ62,HJ60..RHD..GEN198510-198708

12V 60/50W,*WB,12V 60/50W SEALED

main90981-01050iFJ62,HJ60..RHD..GEN198510-198608

12V 60/55W,*HWS,12V 60/55W HALOGEN

main90981-06006iHJ60..RHD..EUR198103-198708

24V 75/70W,*HWS,24V 75/70W HALOGEN

main90981-06007iBJ60,HJ60..LHD..GEN198008-198510

24V 75/55W SEALED

main90981-06008iBJ60,HJ60..RHD..GEN198008-198510

24V 75/55W,24V 75/55W SEALED

main90981-06010iBJ60..LHD..GEN198008-198708

24V 55/50W,*YSB,24V 55/50W SEMI-SEALED,YELLOW

81111RING, SEALED BEAM RETAINING

main81111-89117iBJ60,FJ6#,HJ6#198008-198708

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-90A00iFJ60,HJ60..EUR198008-198708

DETACHABLE TYPE

main81153-90A02iBJ60,FJ6#,HJ6#198210-198708

EXCL/DETACHABLE TYPE

main81153-95A00iBJ60,FJ60,HJ60198008-198210

EXCL/DETACHABLE TYPE

81121SPRING, HEADLAMP TENSION

main81121-62010iBJ60,FJ6#,HJ6#198008-198708

81131SCREW, HEADLAMP ADJUSTING

main81119-1A270iBJ60,FJ62,HJ6#198411-198708

main81131-10031iBJ60,FJ60,HJ60198008-198411

81150HEADLAMP ASSY, LH

main81150-69015iBJ60,FJ6#,HJ60..RHD..GEN198008-198510

12V SEALED

main81150-69025iBJ60,HJ60..RHD..GEN198008-198510

24V SEALED

main81150-69035iBJ60,FJ60,HJ60..LHD..GEN198008-198109

12V SEALED

main81150-69065iBJ60,HJ60..LHD..GEN198008-198510

24V SEALED

main81150-69095iBJ60..LHD..GEN198008-198708

12V SEMI-SEALED,YELLOW

main81150-69105iBJ60,HJ60..LHD198008-198708

24V SEMI-SEALED,YELLOW

main81150-69115iFJ60,HJ60..ARL198008-198301

12V HALOGEN

main81150-69125iFJ60..LUB..EUR198008-198411

12V HALOGEN,DETACHABLE

main81150-69135iHJ60..4FC..HRF..EUR;HJ60..LHD..MTM..LUB..EUR198008-198708

24V HALOGEN,DETACHABLE

main81150-69165iBJ60..LHD..GEN198008-198708

12V HALOGEN

main81150-69175iBJ60,HJ60..LHD198008-198708

24V HALOGEN

main81150-69185iHJ60..RHD..EUR198103-198708

24V HALOGEN

main81150-69235iBJ60,FJ6#,HJ60..LHD..(GEN,ME)198109-198708

12V SEALED

main81150-69245iFJ6#,HJ6#..ARL198301-198708

12V HALOGEN

main81150-90A20iBJ60,FJ62,HJ60..RHD..GEN198510-198708

12V SEALED

main81150-90A22iFJ62,HJ60..RHD..GEN198510-198608

12V HALOGEN

main81150-90A24iFJ62,HJ60..RHD..GEN198608-198708

12V HALOGEN,*SA

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-90A02iBJ60,FJ6#,HJ6#198210-198708

EXCL/DETACHABLE TYPE

main81113-95A00iBJ60,FJ60,HJ60198008-198210

EXCL/DETACHABLE TYPE

main81153-90A00iFJ60,HJ60..EUR198008-198708

DETACHABLE TYPE

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9331116012

main93311-16012

9331116020

main93311-16020

16 parts on this diagram · 2 diagrams in section
