STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0005 1 0006 1

04371FSPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT)

main04371-10011iBJ60,FJ6#,HJ6#198008-198708

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-60080iFJ62,HJ60..SOB..(ARL,EUR)198008-198708

main45201-60080iBJ60198210-198305

W/STEERING ROCK

main45201-60100iBJ60,HJ60..GEN198008-198411

main45210-22050iBJ60,FJ6#,HJ6#198008-198708

W/TILT STRG

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iBJ60,FJ6#,HJ6#198008-198708

UPR,W/TILT STEERING

main90363-18038iFJ62,HJ60..SOB..ARL198008-198708

UPR,W/RIGID STEERING

main90363-28001iBJ60,FJ6#,HJ6#198008-198708

CTR,W/TILT STEERING

main90363-30007iBJ60,FJ6#,HJ6#198008-198708

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iFJ62,HJ60..SOB..(ARL,EUR)198008-198708

T=1.20,LWR

main90520-17042iBJ60,FJ6#,HJ6#198008-198708

T=1.20,W/TILT STRG

main90520-17269iBJ60,FJ62,HJ60..GEN,ME198008-198708

T=1.20,UPR

45201DRING(FOR STEERING MAIN SHAFT)

main96151-04700iFJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..ARL,GEN198008-198708

main96152-00300iBJ60,FJ62,HJ60..EUR,GEN,ME198008-198708

W/COLLAPSIBLE STEERING

main96152-00300iFJ62,HJ60..RHD..GEN198510-198708

SOUTH AFRICA SPEC

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-60070iBJ60,FJ62,HJ60..GEN198008-198708

W/RIGID STEERING

main45205-60080iHJ60..RHD..EUR198008-198708

W/TILT STEERING

main45870-60030iBJ60,FJ62,HJ60..EUR,GEN,ME198008-198708

W/TILT & COLLAPSIBLE STRG

main45870-60030iFJ62,HJ60..RHD..GEN198510-198708

SOUTH AFRICA SPEC

main45870-60030iFJ62,HJ60..RHD..GEN198305-198708

W/TILT & COLLAPSIBLE STEERING

45219YOKE, STEERING SLIDING

main45244-60020iBJ60,FJ6#,HJ6#198008-198708

45222FCOVER, DUST

main45222-60020iBJ60,FJ6#,HJ60198008-198510

main45222-60030iBJ60,FJ62,HJ6#198510-198511

main45222-60031iHJ60..SRF;HJ60..5F..HRF;BJ60,FJ62,HJ61198511-198708

45231CBEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT)

main37402-10020iBJ60,FJ6#,HJ6#198008-198708

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-22011iBJ60,FJ6#,HJ6#198008-198708

T=1.20

main90521-22012iBJ60,FJ6#,HJ6#198008-198708

T=1.25

main90521-22013iBJ60,FJ6#,HJ6#198008-198708

T=1.30

45244YOKE, STEERING WORM

main45244-60020iBJ60,FJ6#,HJ60198008-198510

45253COVER, STEERING COLUMN HOLE

main45025-60010iBJ60,FJ62;HJ60..RHD198008-198708

main45025-60020iBJ60,FJ62,HJ6#..LHD198008-198708

W/COLLAPSIBLE STEERING

main45025-60020iFJ62,HJ60..RHD..GEN198510-198708

SOUTH AFRICA SPEC

45254SHIELD, STEERING COLUMN HOLE

main45254-60030iBJ60,FJ6#,HJ6#198008-198708

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-60020iBJ60,FJ60,HJ60..RHD198008-198307

main45260-60021iBJ60,FJ6#,HJ60..RHD198307-198510

main45260-60031iBJ60,FJ6#,HJ60..LHD198008-198510

main45260-60080iBJ60,FJ62,HJ6#198510-198708

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iBJ60,FJ62,HJ60..GEN,ME198008-198708

45272CLAMP, STEERING COLUMN, LOWER

main45272-35020iBJ60,FJ62;HJ60..RHD198008-198708

45275BRACKET, STEERING COLUMN, UPPER

main45280-22181iBJ60,FJ60,HJ60..RHD198008-198209

W/*TIS

main45280-22200iBJ60,FJ60,HJ60..LHD198008-198209

W/*TIS

main45280-30161iHJ60..SOB..ARL198008-198209

main45280-30181iFJ60..LHD..GEN;FJ60..SOB..EUR198008-198209

main45280-60070iBJ60,HJ60..RHD..GEN198008-198209

main45280-60071iBJ60..RHD198209-198411

main45280-60080iBJ60,HJ60..LHD..GEN198008-198209

main45280-60081iBJ60,HJ60..LHD..GEN198209-198411

main45280-60100iBJ60,FJ62,HJ60..RHD..SOB198210-198510

W/STEERING LOCK

main45280-60100iHJ60..SOB..ARL198209-198210

main45280-60110iHJ60..RHD..EUR198510-198708

W/*TIS,SOUTH AFRICA SPEC

main45280-60110iHJ60..RHD..EUR198209-198708

W/*TIS

main45280-60120iHJ60..LHD..GEN198210-198510

W/STEERING LOCK

main45280-60120iHJ60..SOB..EUR198209-198210

main45280-60130iBJ60,FJ6#,HJ60..LHD198209-198708

W/*TIS

main45280-60210iFJ62,HJ60..SOB..ARL198510-198708

W/RIGID STEERING

main45280-60220iBJ60,FJ62,HJ6#..RHD..(ARL,GEN)198510-198708

W/*TIS

main45280-60230iBJ60,FJ62,HJ60..LHD..GEN198510-198708

W/RIGID STEERING

main45280-60240iBJ60,FJ62,HJ60..LHD..(GEN,ME)198510-198708

W/*TIS

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main45897-12030iFJ62,HJ60..SOB..ARL198008-198708

main45897-14010iBJ60,FJ6#,HJ6#198104-198708

W/TILT STEERING

45281HOUSING, STEERING COLUMN

main45286-22250-03iBJ60,FJ60..RHD198210-198411

UPR,SHADOW GRAY,W/*TIS,GRAY,TRIM1#

main45286-22250-03iBJ60,FJ62,HJ6#..RHD198411-198708

UPR,GRAY,W/*TIS,GRAY,TRIM1#

main45286-22250-06iBJ60,FJ60,HJ60..RHD198008-198411

UPR,DARK BROWN,W/*TIS,BROWN,TRIM4#

main45286-22250-16iBJ60,FJ62,HJ6#..RHD198411-198708

UPR,SEPIA BROWN,W/*TIS,SEPIA BROWN,TRIM4#

main45286-60050iHJ60..SOB..ARL198008-198210

UPR

main45286-60050-03iHJ60..SOB..ARL198210-198411

UPR,SHADOW GRAY,GRAY,TRIM1#

main45286-60050-06iHJ60..SOB..ARL198210-198411

UPR,DARK BROWN,BROWN,TRIM4#

main45286-60050-16iBJ60,FJ62,HJ60..RHD..GEN198411-198708

UPR,SEPIA BROWN,SEPIA BROWN,TRIM4#

main45286-60100iBJ60,HJ60..RHD..GEN198008-198210

UPR

main45286-60100-03iBJ60,HJ60..RHD..GEN198210-198411

UPR,SHADOW GRAY,GRAY,TRIM1#

main45286-60100-06iBJ60,HJ60..RHD..GEN198210-198411

UPR,DARK BROWN,BROWN,TRIM4#

main45286-60110iHJ60..SOB..EUR198008-198210

UPR

main45286-60110-03iHJ60..SOB..EUR198210-198411

UPR,SHADOW GRAY,GRAY,TRIM1#

main45286-60110-03iHJ60..SOB..EUR198411-198510

UPR,SHADOW GRAY,GRAY

main45286-60110-06iFJ60..LHD..GEN198210-198411

UPR,DARK BROWN,BROWN,TRIM4#

main45286-60110-16iHJ60..4FC..HRF..EUR;HJ60..LHD..5F..WGG..EUR198411-198708

LWR,SEPIA BROWN,SEPIA BROWN,TRIM4#

main45286-60110-16iHJ60..LHD..GEN198411-198708

UPR,SEPIA BROWN,SEPIA BROWN,TRIM4#

main45286-60120iBJ60,HJ60..LHD..GEN198008-198210

UPR

main45286-60120-03iBJ60,HJ60..LHD..GEN198210-198411

UPR,SHADOW GRAY,GRAY,TRIM1#

main45286-60120-06iBJ60,HJ60..LHD..GEN198210-198411

UPR,DARK BROWN,BROWN,TRIM4#

main45286-60130iBJ60,FJ60,HJ60..LHD198008-198210

UPR,W/*TIS

main45286-60130-03iBJ60,FJ62,HJ6#..LHD198411-198708

UPR,GRAY,W/*TIS,GRAY

main45286-60130-03iBJ60,FJ60,HJ60..LHD198210-198411

UPR,SHADOW GRAY,W/*TIS,GRAY,TRIM1#

main45286-60130-06iBJ60,FJ60,HJ60..LHD198210-198411

UPR,DRARK BROWN,W/*TIS,BROWN,TRIM4#

main45286-60130-16iBJ60,FJ62,HJ6#..LHD198411-198708

UPR,SEPIA BROWN,W/*TIS,SEPIA BROWN,TRIM4#

main45287-22170-03iBJ60,FJ62,HJ60..RHD..(ARL,GEN)198411-198708

LWR,GRAY,W/*TIS,GRAY,TRIM1#

main45287-22170-03iBJ60,FJ60,HJ60..RHD198210-198411

LWR,SHADOW GRAY,W/*TIS,GRAY,TRIM1#

main45287-22170-06iBJ60,FJ60,HJ60..RHD198008-198411

LWR,DARK BROWN,W/*TIS,BROWN,TRIM4#

main45287-22170-16iBJ60,FJ62,HJ6#..RHD198411-198708

LWR,SEPIA BROWN,W/*TIS,SEPIA BROWN,TRIM4#

main45287-60050iFJ60,HJ60..SOB..ARL;BJ60,FJ60,HJ60..RHD..GEN198008-198210

LWR

main45287-60050-03iFJ60..SOB..ARL;HJ60..RHD..SOB;BJ60,FJ60..RHD..GEN;HJ60..RHD..LUB..GEN198210-198411

LWR,SHADOW GRAY,GRAY,TRIM1#

main45287-60050-06iFJ60..SOB..ARL;HJ60..RHD..SOB;BJ60,FJ60..RHD..GEN;HJ60..RHD..LUB..GEN198210-198411

LWR,DARK BROWN,BROWN,TRIM4#

main45287-60050-16iFJ62,HJ60..SOB..ARL198411-198708

LWR,SEPIA BROWN,SEPIA BROWN,TRIM4#

main45287-60080iFJ60,HJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN198008-198210

LWR

main45287-60080-03iHJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN198210-198411

LWR,SHADOW GRAY,GRAY,TRIM1#

main45287-60080-06iHJ60..SOB..EUR;BJ60,FJ60,HJ60..LHD..GEN198210-198411

LWR,DARK BROWN,BROWN,TRIM4#

main45287-60080-16iHJ60..LHD..GEN198411-198708

LWR,SEPIA BROWN,SEPIA BROWN,TRIM4#

main45287-60090iBJ60,FJ60,HJ60..LHD198008-198210

LWR,W/*TIS

main45287-60090-03iHJ60..SOB..EUR;HJ60..LHD..4FC..SRF..LUB198411-198510

LWR,W/*TIS,SHADOW GRAY,GRAY

main45287-60090-03iBJ60,FJ62,HJ6#..LHD198510-198708

LWR,GRAY,W/*TIS,GRAY

main45287-60090-03iBJ60,FJ60,HJ60..LHD198210-198411

LWR,SHADOW GRAY,W/*TIS,GRAY,TRIM1#

main45287-60090-06iBJ60,FJ60,HJ60..LHD198210-198411

LWR,DARK BROWN,W/*TIS,BROWN,TRIM4#

main45287-60090-16iBJ60,FJ62..LHD198411-198708

LWR,SEPIA BROWN,W/*TIS,SEPIA BROWN,TRIM4#

main45287-60100iHJ60..RHD..EUR198103-198210

LWR,ENGLAND SPEC

main45287-60100-03iHJ60..RHD..EUR198210-198411

LWR,SHADOW GRAY,ENGLAND SPEC,GRAY,TRIM1#

main45287-60100-06iHJ60..RHD..EUR198210-198411

LWR,DARK BROWN,ENGLAND SPEC,BROWN,TRIM4#

main45287-60100-16iHJ60..RHD..EUR198411-198708

LWR,SEPIA BROWN,SEPIA BROWN,TRIM4#

main45287-60110iFJ60,HJ60..LHD..LUB..EUR198102-198210

LWR,W/*TIS,*WEG

main45287-60110-03iFJ60,HJ60..LHD..LUB..EUR198210-198411

LWR,SHADOW GRAY,W/*TIS,*WEG,GRAY,TRIM1#

main45287-60110-06iFJ60,HJ60..LHD..LUB..EUR198210-198411

BROWN,BROWN,TRIM4#

45281EPLATE, SAFETY CAUTION

main45283-22010iBJ60,FJ6#,HJ60..RHD198008-198503

main45283-22020iBJ60,FJ6#,HJ60..LHD198008-198503

45291SEAL, MAIN SHAFT UPPER DUST

main45282-22010iBJ60,FJ62,HJ6#..LHD198510-198708

SOUTH AFRICA SPEC

main45282-22010iFJ60,HJ60..EUR198008-198708

45291ASUPPORT, STEERING COLUMN TUBE

main45291-35020iHJ60..RHD..EUR198008-198708

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35030iBJ60,FJ62;HJ60..RHD198008-198708

main45292-60030iFJ60,HJ60..EUR198008-198708

W/COLLAPSIBLE STEERING

main45292-60030iBJ60,FJ62,HJ6#..LHD198510-198708

SOUTH AFRICA SPEC

45636PROTECTOR, INTERMEDIATE LINK JOINT, UPPER

main45636-60010iBJ60,FJ60,HJ60..RHD..(ARL,GEN)198008-198411

main45636-60011iBJ60,FJ62,HJ60..RHD..(ARL,GEN)198411-198510

main45636-60020iBJ60,FJ60,HJ60..LHD198008-198411

main45636-60021iHJ60..LHD..GEN198411-198510

main45636-60030iFJ60,HJ60..RHD198008-198510

W/POWER STEERING

main45636-60040iFJ60,HJ60..LHD198008-198510

W/POWER STEERING

main45636-60070iBJ60,FJ62,HJ6#..RHD198510-198708

main45636-60080iBJ60,HJ6#..LHD198510-198708

main45636-60090iFJ62..LHD198510-198708

45637PROTECTOR, INTER LINK JOINT, LWR NO.1

main45637-60010iBJ60,FJ60,HJ60..RHD..(ARL,GEN)198008-198411

main45637-60011iBJ60,FJ62,HJ60..RHD..(ARL,GEN)198411-198510

main45637-60020iFJ60,HJ60..RHD198008-198510

W/POWER STEERING

main45637-60030iBJ60,FJ60,HJ60..LHD198008-198411

main45637-60031iHJ60..LHD..GEN198411-198510

main45637-60040iFJ60,HJ60..LHD198008-198510

W/POWER STEERING

main45637-60050iBJ60,FJ62,HJ6#..RHD198510-198708

main45637-60060iBJ60,FJ62,HJ6#..LHD198510-198708

9011910212

main90119-10212

9016450048

main90164-50048

9017910178

main90179-10178

9095001131

main90950-01131

9161140816

main91611-40816

9161160616

main91611-60616

9161160820

main91611-60820

9161160825

main91611-60825

9165140820

main91651-40820

9165640825

main91656-40825

9331514012

main93315-14012

9331914008

main93319-14008

9461211001

main94612-11001

9645100600

main96451-00600

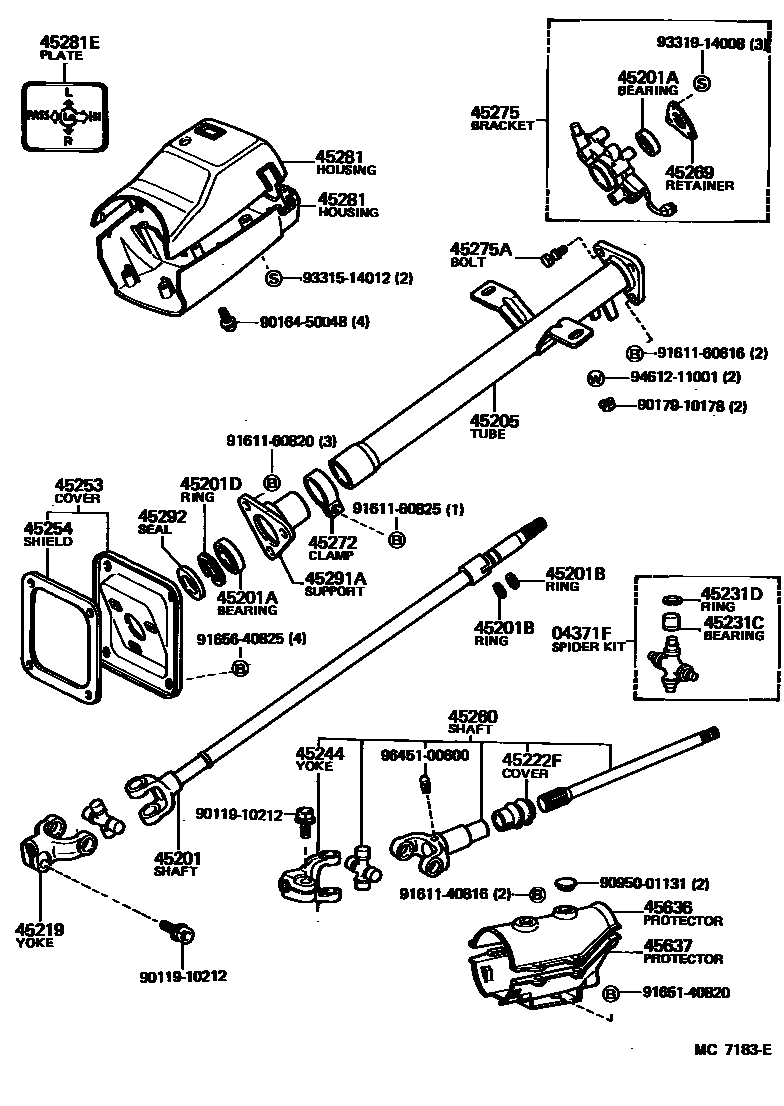

39 parts on this diagram · 5 diagrams in section
