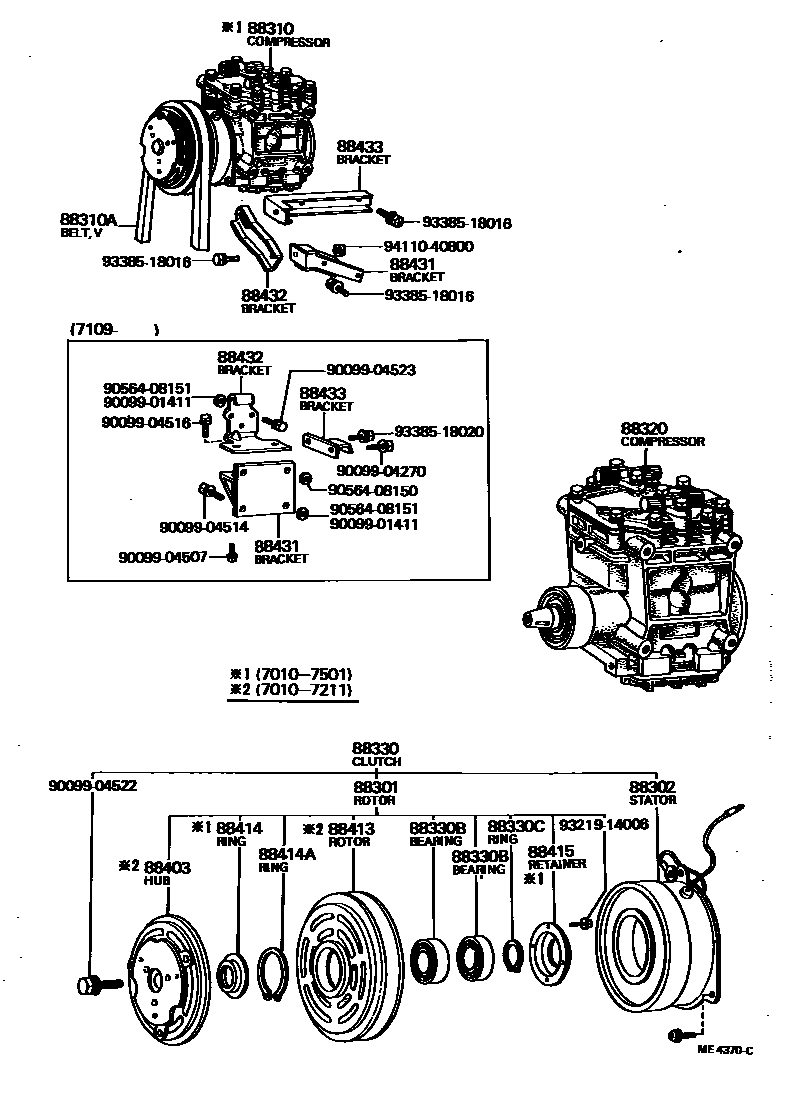

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88401-12032iFJ55197109-197501

main88401-20040iFJ55197106-197109

main88401-60020iFJ55197010-197106

main88401-60030iFJ55..RHD..(ARL,GEN)197501-197610

main88401-60040iFJ55..RHD..(ARL,GEN)197610-197901

main88412-12040iFJ4#..LHD..GEN197901-198007

main88412-12040iBJ40..LHD..V..GEN197909-198007

FOR 12V

main88412-60030iFJ55..LHD..GEN197501-197610

main88412-60040iFJ55..LHD..GEN197610-197901

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12020iFJ55197010-197106

main88411-12021iFJ55197106-197610

main88411-20060iFJ55..RHD..(ARL,GEN)197610-197901

main88411-22040iBJ40,FJ40,45..RHD..(PIC,V)197901-198007

FOR 12V

main88411-25010iBJ40..RHD..V..GEN197901-198007

FOR 24V

main88411-30250iFJ55..LHD..GEN197501-197610

main88411-60010iFJ55..LHD..GEN197610-197901

88310COMPRESSOR ASSY, W/PULLEY

main88310-22040iFJ55197106-197501

main88310-60010iFJ55197010-197106

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-11020iBJ40..RHD..V197901-198007

main99322-11020iBJ40..LHD..V..GEN197909-198007

FOR 12V

main99322-11250iFJ55..ARL,GEN197901-198007

main99512-11345iFJ55..RHD..(ARL,GEN)197309-197901

main99522-11275iFJ55..LHD..GEN197501-197901

main99523-11351iFJ55197010-197309

88320COMPRESSOR ASSY, COOLER

main88320-20080iFJ55197106-197901

main88320-60011iFJ55197010-197106

main88320-60020iFJ55..LHD..GEN197501-197901

main88320-60030iBJ40..RHD..V197901-198007

main88320-60040iFJ4#..LHD..GEN197901-198007

main88320-60050iFJ55..ARL,GEN197901-198007

main88320-60060iBJ40..LHD..V..GEN197909-198007

FOR 12V

88330CLUTCH ASSY, MAGNET

main88410-12022iFJ55197106-197501

main88410-22060iFJ4#..LHD..GEN197901-198007

FOR 12V

main88410-22060iBJ40..LHD..V..GEN197909-198007

main88410-25010iBJ40..RHD..V..GEN197901-198007

FOR 24V

main88410-60010iFJ55197010-197106

main88410-60020iFJ55..RHD..(ARL,GEN)197501-197610

main88410-60030iFJ55..LHD..GEN197501-197610

main88410-60040iFJ55..LHD..GEN197610-197901

main88410-60050iFJ55..RHD..(ARL,GEN)197610-197901

88330BBEARING, MAGNET CLUTCH

main90099-10083iFJ55197010-197901

main90099-10097iFJ55..LHD..GEN197501-197901

main90099-10117iFJ55..ARL,GEN197901-198007

FOR 12V

main90099-10127iBJ40..RHD..V..GEN197901-198007

FOR 24V

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90096-90007iFJ55197010-197610

main90096-90015iFJ55..RHD..(ARL,GEN)197610-197901

main90099-07087iFJ55..LHD..GEN197501-197901

main90099-07094iFJ55..ARL,GEN197901-198007

FOR 12V

main90099-07113iBJ40..RHD..V..GEN197901-198007

FOR 24V

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-20030iFJ55197106-197211

main88403-20031iFJ55197211-197901

main88403-22030iBJ40..RHD..V..GEN197901-198007

FOR 24V

main88403-26030iBJ40,FJ40,45..RHD..(PIC,V)197901-198007

FOR 12V

main88403-30250iFJ55..LHD..GEN197501-197901

main88403-60010iFJ55197010-197106

88413PULLEY SUB-ASSY, MAGNET CLUTCH

main88412-12031iFJ55197112-197211

main88412-20040iFJ55197106-197112

main88412-60020iFJ55197010-197106

88414RING, SHIELD

main88415-12030iFJ55197106-197501

main88415-60040iFJ55197010-197106

88414ARING, SHIELD SNAP

main90096-90005iFJ55..RHD..(ARL,GEN)197501-197901

main90096-90009iFJ55197010-197501

main90099-07086iFJ55..LHD..GEN197501-197901

88415RETAINER, MAGNET CLUTCH BEARING, NO.1

main88415-12040iFJ55197106-197501

main88415-60030iFJ55197010-197106

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60010iBJ40..LHD..V..GEN197909-198007

FOR 12V

main88431-60010iBJ40..RHD..V197901-198007

main88437-60030iFJ55197010-197109

main88437-60040iFJ55..RHD..(ARL,GEN)197109-197901

main88437-60080iFJ55..LHD..GEN197501-197901

main88437-60100iFJ40,45..WORB..ARL197906-198004

FOR N.S.W.

main88437-60110iFJ4#..LHD..GEN197901-198007

main88437-60110iFJ40,45..WORB..ARL197906-198004

L/POWER STEERING

main88437-60120iFJ40,45..RHD..(PIC,V)197901-197906

main88437-60120iFJ40,45..RHD..(PIC,V)..GEN197906-198007

W/POWER STEERING

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main12301-61011iFJ55..RHD197901-198007

main88431-60020iBJ40..LHD..V..GEN197909-198007

FOR 12V

main88431-60020iBJ40..RHD..V197901-198007

main88437-60020iFJ55197010-197109

main88437-60050iFJ55..RHD..(ARL,GEN)197109-197901

88433BRACKET, COMPRESSOR MOUNTING, NO.3

main53016-60040iFJ40,45..WORB..ARL197906-198007

main88437-60010iFJ55197010-197309

main88437-60060iFJ55197109-197304

main88437-60070iFJ55197309-197901

9009901411

main90099-01411

9009904270

main90099-04270

9009904507

main90099-04507

9009904514

main90099-04514

9009904516

main90099-04516

9009904522

main90099-04522

9009904523

main90099-04523

9056408150

main90564-08150

9056408151

main90564-08151

9321914006

main93219-14006

9338518016

main93385-18016

9338518020

main93385-18020

9411040800

main94110-40800

29 parts on this diagram · 8 diagrams in section
