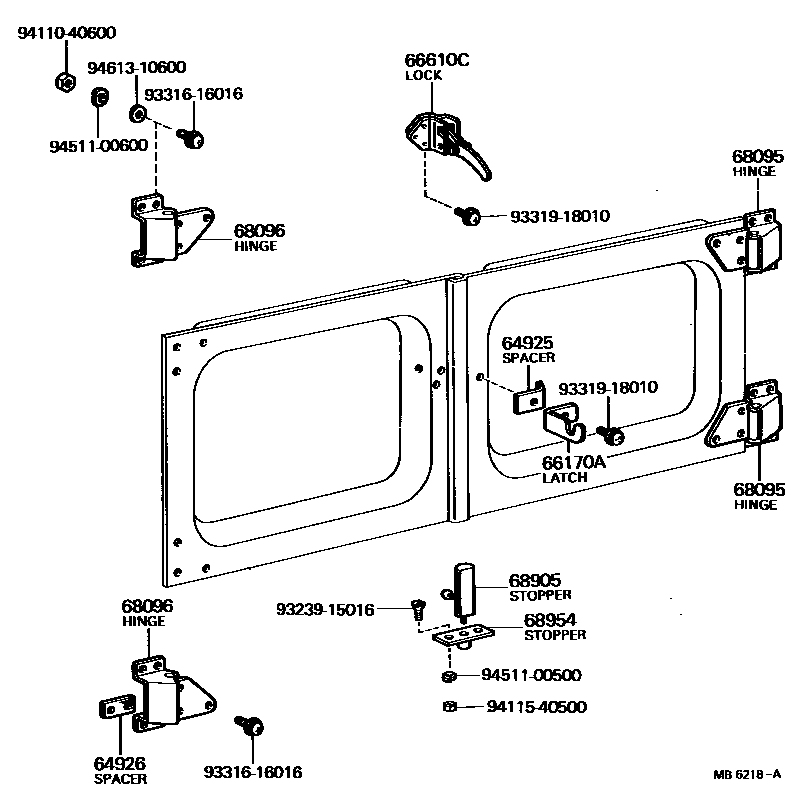

BACK DOOR LOCK & HINGE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

64925SPACER, REAR DROP GATE, LOCK LATCH

main64925-60010×2iFJ40,42,43..TPS196903-197207

main64925-60020iFJ40,43..TPB,VLS196903-197207

64926SPACER, REAR DROP GATE, HINGE MALE

main64924-60010×3iFJ40,42,43..TPS196903-197207

main64924-90300×3iBJ4#,FJ4#..TPS197207-198007

main64961-60010×8iFJ40,43..TPB,VLS196903-197207

66170ALATCH ASSY, REAR DROP GATE

main69362-60010iBJ4#,FJ4#..TPS196903-197901

RH.

main69362-90301iBJ4#,FJ4#..TPS197901-198007

RH.

main69363-60010iBJ4#,FJ4#..TPS196903-197901

LH.

main69363-60020iBJ40,FJ40,43..LHD..(TPB,VLS)196903-197509

main69363-60030iBJ40,FJ40,43..RHD..(TPB,VLS)196903-197509

main69363-90301iBJ4#,FJ4#..TPS197901-198007

LH.

66610LOCK ASSY, TAIL GATE

main69310-60031iBJ40,FJ40..VKC197204-197901

main69310-90301iBJ40,FJ40,45,HJ45..VKC197901-198007

main69350-91145iFJ55..VTG196903-198007

RH.

main69380-91145iFJ55..VTG196903-198007

LH.

main69390-60021×2iBJ40,FJ40..VLS196903-198007

66610CLOCK ASSY, REAR DROP GATE

main69308-90314iFJ40,43..TPC196903-197005

main69308-90315iBJ4#,FJ40,43,45..TPC197005-197901

main69350-60010iBJ4#,FJ40,42,43..TPS;BJ40,FJ40,43..LHD..(TPB,VLS)196903-197501

RH.

main69360-60010iBJ4#,FJ4#..TPS197501-198007

LH.

main69380-90316iBJ4#,FJ4#..TPC197901-198007

68095HINGE ASSY, REAR GATE, RH

main68095-60010iFJ40,43..TPB,VLS196903-197207

LOWER

main68095-90300iBJ40,FJ40,43..TPB,VLS197207-197504

LOWER

main68905-60010iBJ4#,FJ4#..TPS196903-197901

main68905-60020iFJ40,43..TPB,VLS196903-197207

UPPER

main68905-90303iBJ40,FJ40,43..TPB,VLS197207-197504

UPPER

main68905-90304iBJ40,FJ40..VLS197608-198007

UPPER

main68905-90305iBJ4#,FJ4#..TPS197901-198007

main68906-90300iBJ40,FJ40..VLS197504-197608

LOWER

main68906-90303iBJ40,FJ40..VLS197608-198007

LOWER

68096HINGE ASSY, REAR GATE, LH

main68096-60010iFJ40,43..TPB,VLS196903-197207

LOWER

main68096-90300iBJ40,FJ40,43..TPB,VLS197207-197504

LOWER

main68905-60010iBJ4#,FJ4#..TPS196903-197901

main68905-90303iBJ40,FJ40..VLS197504-197608

LOWER

main68905-90304iBJ40,FJ40..VLS197608-198007

LOWER

main68905-90305iBJ4#,FJ4#..TPS197901-198007

main68906-60010iFJ40,43..TPB,VLS196903-197207

UPPER

main68906-90300iBJ40,FJ40,43..TPB,VLS197207-197504

UPPER

main68906-90303iBJ40,FJ40..VLS197608-198007

UPPER

68905STOPPER SUB-ASSY, BACK DOOR OPEN

main68950-90300iBJ4#,FJ40,43..TPB,TPC,VLS196903-197505

main68950-90305iBJ4#,FJ4#..TPC,VLS197505-197901

68954STOPPER, REAR SWING GATE OPEN FEMALE

main68955-60010iFJ40,43..TPB,TPC,VLS196903-197312

9323915016

main93239-15016

9331616016

main93316-16016

9331918010

main93319-18010

9411040600

main94110-40600

9411540500

main94115-40500

9451100500

main94511-00500

9451100600

main94511-00600

9461310600

main94613-10600

17 parts on this diagram · 7 diagrams in section
